Help Center0.3-0.8mm Color Steel Galvanized 850 Corrugated Metal Sheet Roof Sheet Roll Forming Machine/effective Width 750mm
Related Products
-
China Supplies DX 840/850 Double Deck Roof Sheet Roll Forming MachineUS$ 7,000 - 13,000MOQ: 1 Set -
DX 1050/1064 Double Deck Roll Forming Machine FOR South AfricaUS$ 6,500 - 13,000MOQ: 1 Set
-
DX 1050/1064 Double Deck Roll Forming Machine/Building Raw MaterialsUS$ 6,500 - 13,000MOQ: 1 Set
-
DIXIN 1050/1064 Double Deck Roll Forming Machine for CE/ISO9001 CertificationUS$ 6,500 - 13,000MOQ: 1 Set
-
DIXIN 1050/1064 Sheet Roll Forming Machine/roof Wall Panel Sheet Making MachineUS$ 6,500 - 13,000MOQ: 1 Set
Play a Trade Assurance order enjoyed discount :
Main machine parameters:
| material spec | colored steel sheet, galvanized steel sheet, aluminium sheet |
| thickness of coil sheet | 0.3-0.8mm |
| roller material |
high grade NO.45 forged steel, with hard chrome plating on the surface of roller with thickness 0.05mm |
| shaft material | high grade NO.45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 75mm |
| thickness of medium plate | 14mm |
| main frame | 300H/U steel |
| number of forming steps | upper is 11rows, under is 13 rows |
| productivity | 1uper is 2-3m/min,down is 8-12m/min |
| main motor power | 4kw |
| hydraulic station power/td> | 4kw |
| hydraulic pressure | 10-12MPa |
| controlling system | PLC computer control |
| appearance sizes | 7500*1400*1700mm |
| total weight | about 5.8 tons |
| Voltage | 380v 3Phase60Hz or at buyer’s requirement |

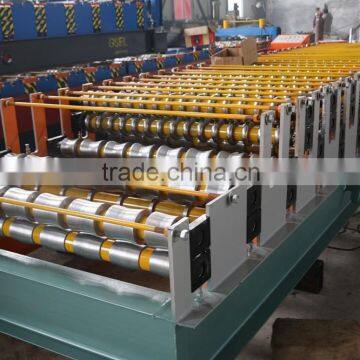

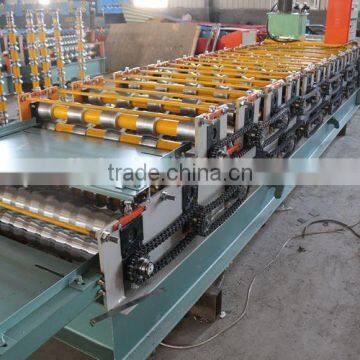

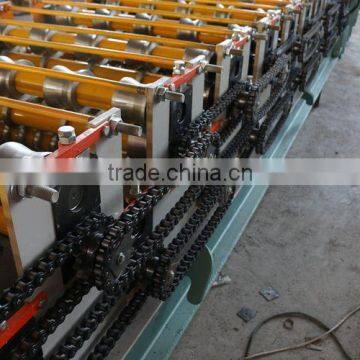

More Picture of the machines:
Our Advantages:
Our Certificate:
Please contact me~
FAQ
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
<- About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $50 per day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.
G:- Any certification:
- Yes, we have CE TUV BV certification.
Welcome to our factory!
Best quality, best price, best service!
We can go to the railway station or the airport to pick customers up:
Picture of our factory:
