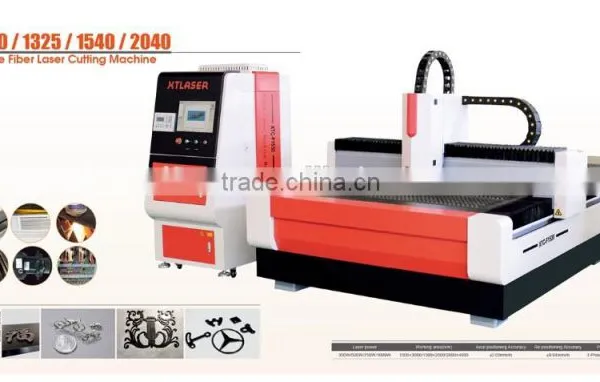

500W 700W 1kw,2kw,3kw, 4kw metal sheet cnc fiber laser cutting machine price with IPG, Raycus power
I. Series Introduction

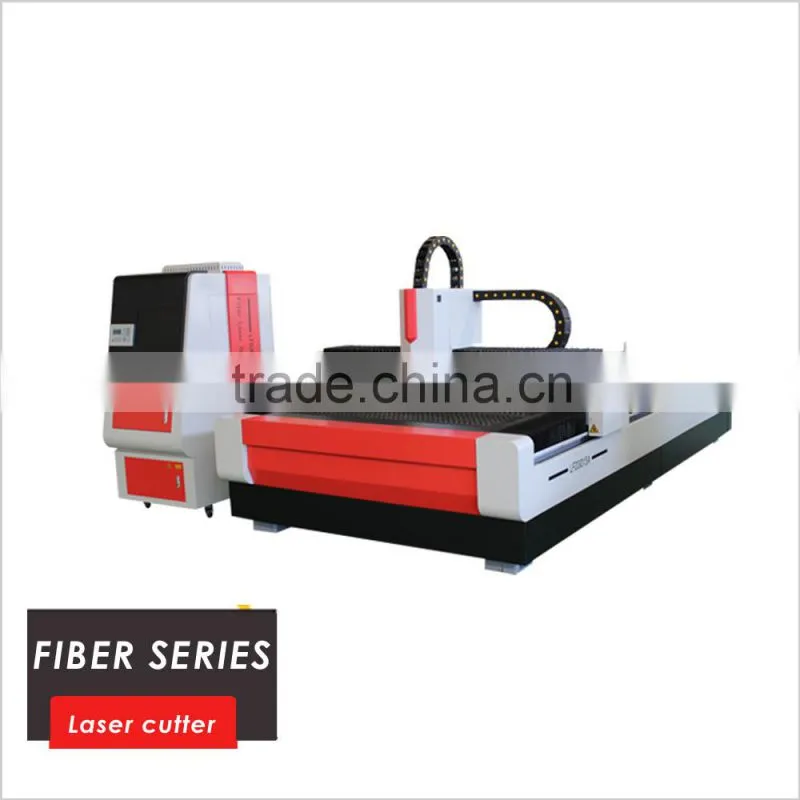

XT LASER series fiber laser cutting machine integrates optical, mechanical and electrical in one,which adopts laser technology, computer control technology and high-performance CNC laser power system to process all kinds of metal sheet at high speed,high accurate,high efficiently cutting. Its products have smooth edge,small kerf width and little heat effect.Cut the shape of Circle, Triangle, Octagonal etc. on metal sheet or pipe. We have 4 models now, their Laser power:300w 500w 1Kw,2Kw Working area:1.5x3m 2x4m 2x6m,etc.I think there must be one model suitable your requirements.
II. Main Technical Parameters
Model |
XTC-F500 |
Laser type |
Fiber laser |
Laser working medium |
Fiber |
Laser wavelength |
1070 nm |
Rated output power |
500 W |
Beam quality |
<0.373mrad |
Effective cutting range |
3000×1500(mm) |
Table axial positioning accuracy |
≤±0.03mm/m |
Repeat positioning accuracy table |
≤±0.02mm/m |
Cutting speed |
≤30m/min (depending on material) |
Maximum table load |
1600KG |
Power Ratings |
Three-phase AC 380V 50Hz |
Equipment electric power |
9KW |
Total power protection class |
IP54 |
No. |
Name |
Quantity |
Origin and manufacturer name |
1 |
Lasers |
||
(1) |
Fiber laser |
1 set |
500watts Raycus |
(2) |
Laser Power |
||
2 |
The optical path and the cutting head |
||
(1) |
Special laser cutting head |
1 set |
CypLite |
3. |
Host Machine |
||
(1) |
Machine bed |
1 set |
Xintian |
(2) |
Screw guide |
1 set |
Taiwan HIWIN |
(3) |
|
|
|
(4) |
Servo motor and drive |
3 set |
Japan's Yaskawa |
|
Main Y Axis use the power of 3000w motor, X Axis 850 w, Z Axis 400 w Three-phase transformer applies 8KW dry transformer from Wuhan JUCHE | |||
4. |
CNC & control system |
||
(1) |
CNC systems(With control software) |
1 set |
Cypcut |
5 |
Standard accessories |
||
(1) |
Water cooling |
1 set |
1P |

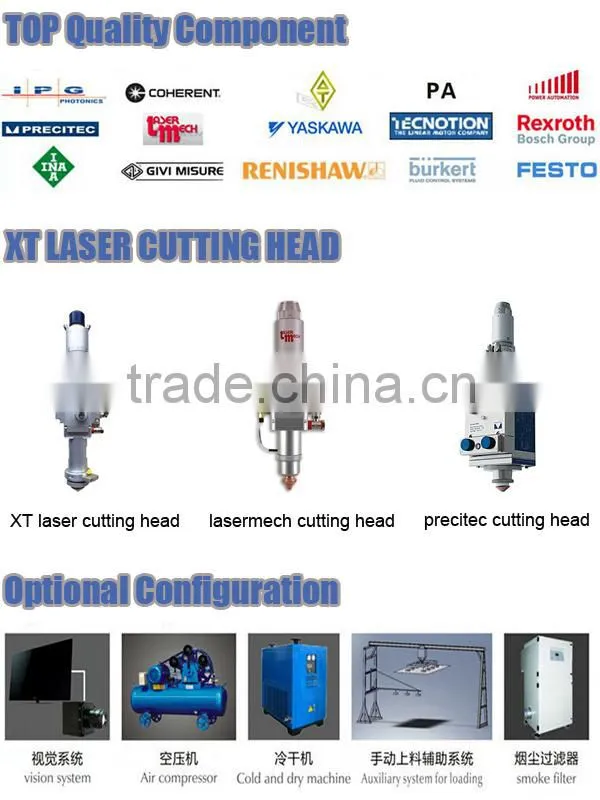

I.Parts

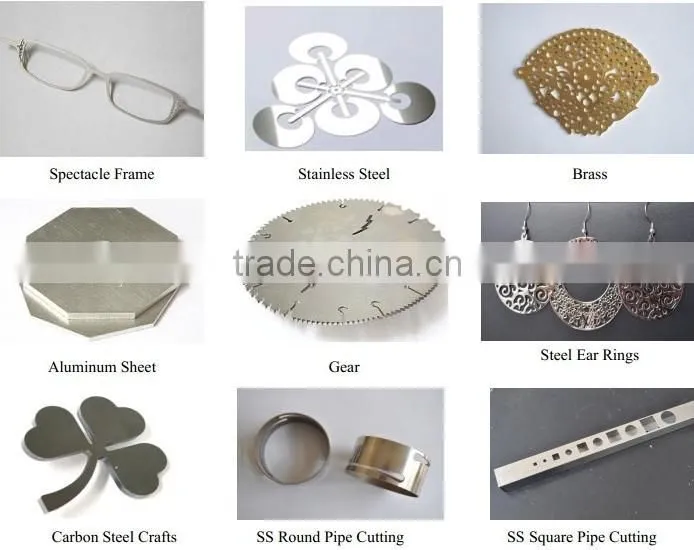

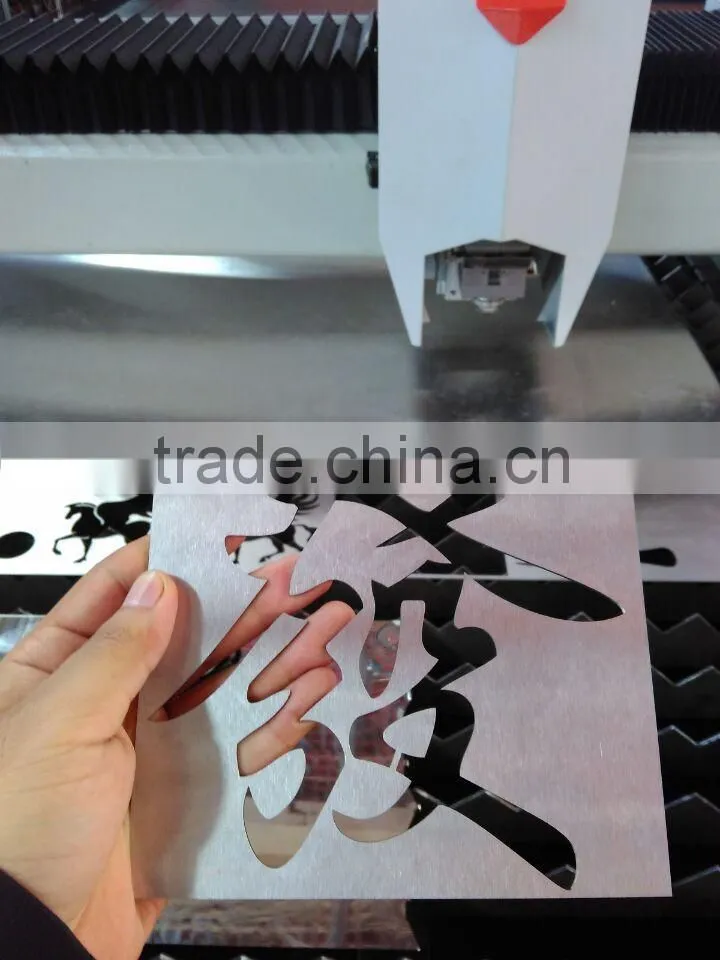

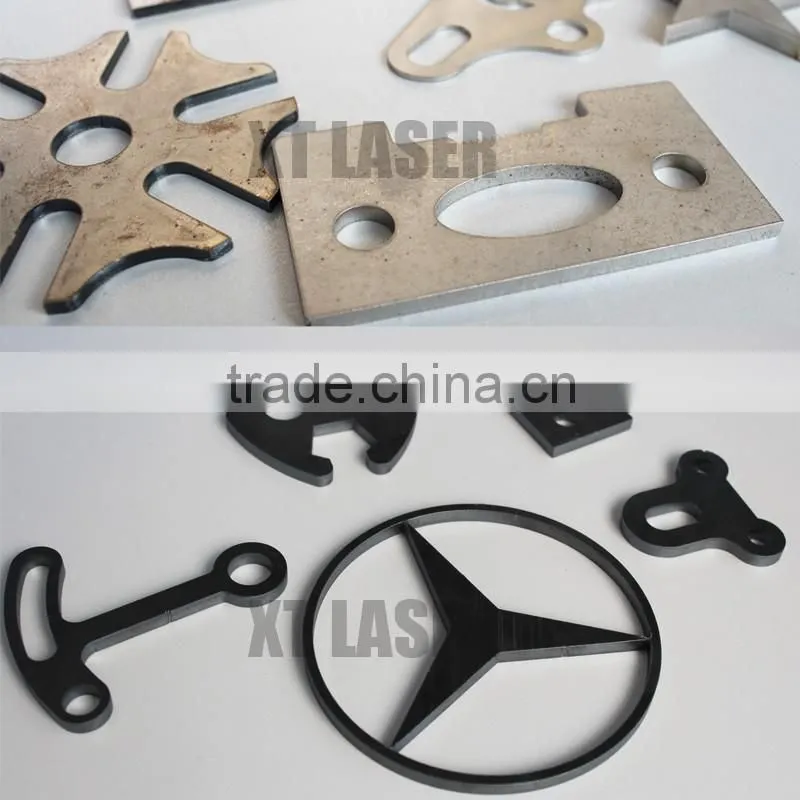

II.Samples
I. Standardization of Service “212"
- 2: response in 2 hours
- 1: provide solution in 1 day
- 2: solve complaint in 2 days
II. Installation Service
Installation Services are available with all XT LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.
III. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
IV. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
Machine warranty is 1 year. We offer flexible extended warranties if needed
Hot Sale IPG fiber laser marking machine looking for customers and distributors from all over the world.
Welcome to visit us,thanks.
XT LASER, Accumulated 10 years of experience in laser equipments manufacturing and exporting. Providing the best
cost-effective laser solutions !
© Laser innovative application service platform
© Leading laser solution provider
© 10 years experience in laser industry
© Laser-World of Photonics Exhibitor since 2004
© Strict quality control and exclusive after-sales service team
© Providing customized laser machines for users and distributors globally
