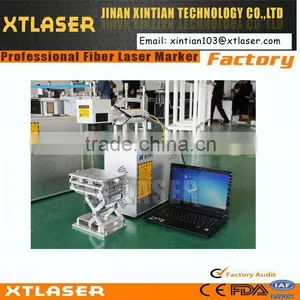

Fiber Laser Marking Machine
ooi laser marking machine
ITEM: Lowest Price XT Series Fiber Laser Marking Machine

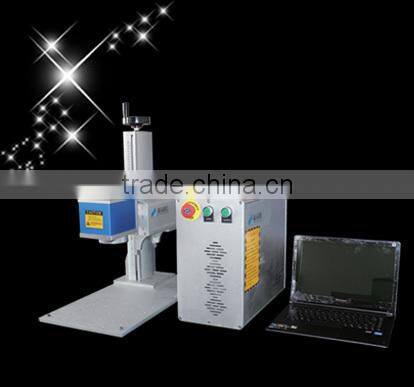

Model 1: USA model portable fiber laser marking machine
ooi laser marking machine
Packing information:
Machine Size: 700x 200x 500mm
Package Size: 880x 280x 600mm
Net Weight: 35 around
Gross Weight: 60kg
Delivery Time: 4 work days
Transportation: BY AIR or INTERNATIONAL EXPRESS

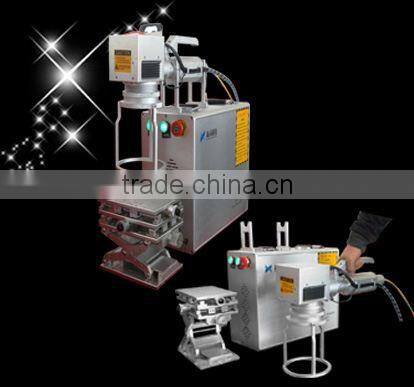

Model 2: handheld fiber laser marking machine (new model)
ooi laser marking machine
Packing information of 20W fiber laser marking machine :
Machine Size: 60x 22x52cm
Package Size: 91x83x163 cm
Net Weight: 30kg around
Gross Weight: 50kgs
Delivery Time: 2-3 weeks
Transportation: BY AIR or INTERNATIONAL EXPRESS
Model 3: portable fiber laser marking machine (new model)
ooi laser marking machine
Packing information of 20W fiber laser marking machine :
Machine Size: 70x 20x50cm
Package Size: 80x35x65cm
Net Weight: 35kg around
Gross Weight: 55kgs
Delivery Time: 2-3 weeks
Transportation: BY AIR or INTERNATIONAL EXPRESS
Laser Power: 10W, 20W, 30W, 50W
(10w and 20 are recommended for normal markings)
fiber laser marking machine & ooi laser marking machine
Features | ||
Open worktable, easy to load the material and can work with customized automatic matching system. | ||
| ||
Application Materials | ||
laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon. | ||
|
|
|

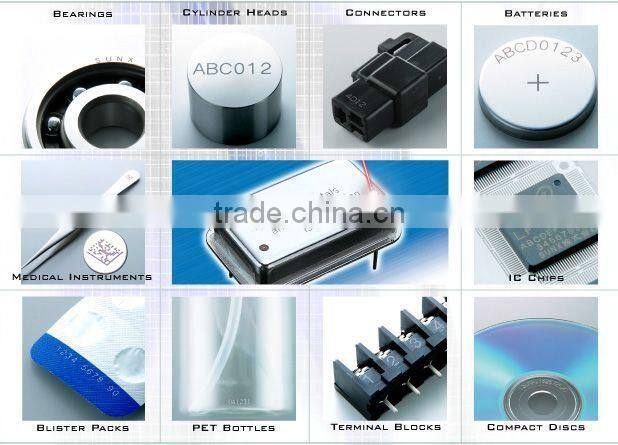

Applicable Industries | ||
Mechanical Parts: |
Bearings, Gears, Standard Parts, Motor, etc. |
|
Instrument: |
Panel Board, Nameplates, Precision equipment, etc. |
|
Daily Necessities: |
Handicrafts, Zipper, Key Holder, Sanitary Ware, etc. |
|
Hardware Tools: |
Knives, Tools, Measuring Tools, Cutting Tools, etc. |
|
Automobile Parts: |
Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc. |
|
Electronic Components: |
Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc. |
|
| ||
Advantages | ||
1) Long lifespan fiber laser source: 100 000hours | ||
2) Good scan head, with good seal, small volume, and compact. | ||
3) Good Scaps controller, USB interfaces swift and stable transmission. | ||
4) Low consumption: <400W, more economized and environmental. | ||
5) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT, etc.. | ||
6) High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect. | ||
7) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products. | ||
8) No Consumables: One Fiber marker can work for more than 10 years without any consumables. | ||
9) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products. | ||
10) The fiber laser beams no need to adjust the laser optical path. | ||
11) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser. | ||
12) Deeper Marking: Max. 1.2mm stainless steel, suitable for the industries which need high precision and depth marking effect. | ||
|
|
|
Technical Parameters | ||
Type |
FL-10B |
FL-20B |
Power |
10W |
20W |
Laser Wavelength |
1064nm |
|
Marking Area |
150mm*150mm |
|
Optional Marking Area |
50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm |
|
Marking Depth |
≤1.2mm |
|
Marking Speed |
800 standard characters/second |
|
Minimum Line Width |
0.012mm |
|
Minimum Character |
0.15mm |
|
Repeated Precision |
±0.003mm |
|
Life-span of Fiber Laser Module |
100 000hours |
|
Beam Quality |
M2 <1.5 |
|
Focus Spot Diameter |
<0.01mm |
|
Output Power of Laser |
10%~100% continuously to be adjusted |
|
System Operation Environment |
W8--32/64bits / W7--32/64bits / Windows XP |
|
Cooling Mode |
Air cooling--Built-in |
|
Temperature of Operation Environment |
15°C~35°C |
|
Power Input |
220V / 50HZ / single phase or 110V / 60HZ / single phase |
|
Power Requirement |
<400W |
|
Communication Interface |
USB |
|
Optional (Not free of charge) |
Rotary Device, Moving Table, other customized Automation |
|
fiber laser marking machine & ooi laser marking machine

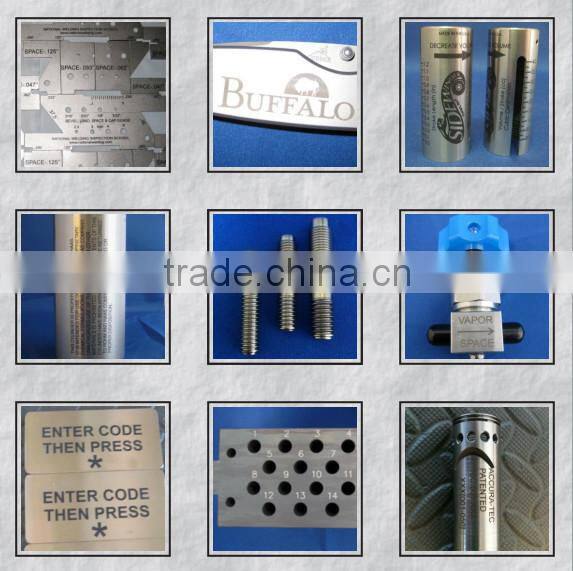

Marking Samples of 20W fiber laser marking machine 1:
fiber laser marking machine & ooi laser marking machine

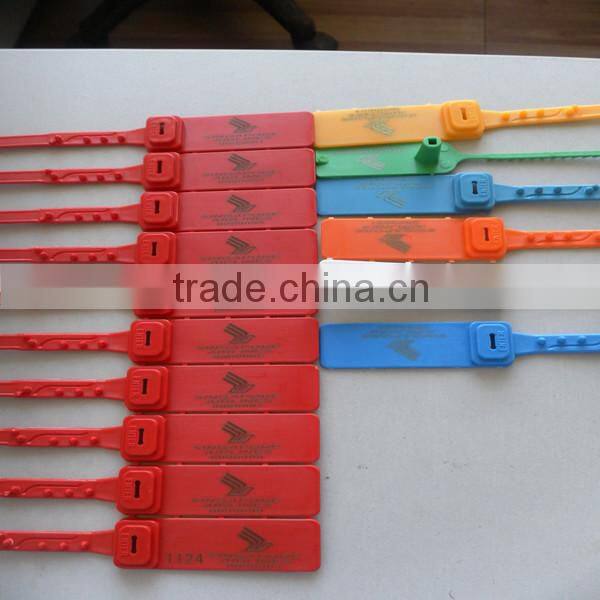

Marking Samples of 20W fiber laser marking machine 2:
fiber laser marking machine & ooi laser marking machine
Marking Samples of 20W fiber laser marking machine 3:
fiber laser marking machine & ooi laser marking machine

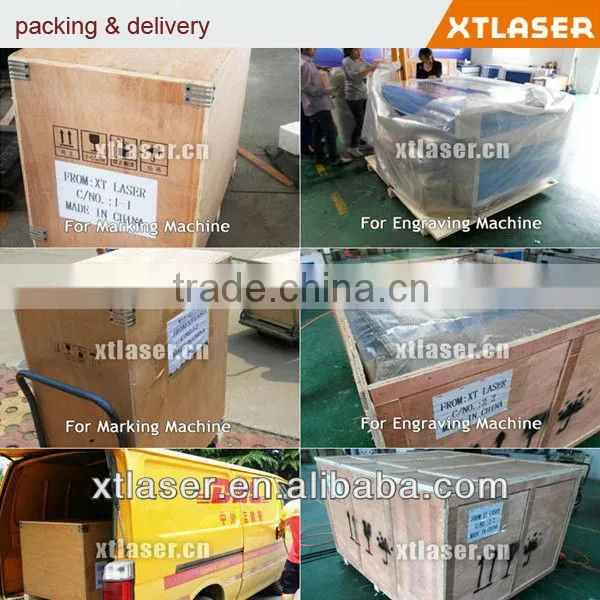

Package of 20W fiber laser marking machine :
ooi laser marking machine
Jinan Xintian Technology Co., Ltd.
1.10 years factory professional for laser machines production
2. professional technician team and sales team
3. Agents in domestic and in abroad
XT Laser Brand fiber laser marking machine & ooi laser marking machine
XT Laser Brand fiber laser marking machine & ooi laser marking machine
XT Laser Brand fiber laser marking machine & ooi laser marking machine
7. certificates of our fiber laser marking machiune & ooi laser marking machine
CE, ISO and FDA certificates for all Xintian machines.
8. contact me & ooi laser marking machine
