XT YAG laser marking machine for metal parts is one of our company fast moving marking machines.
PRODUCT DETAILS
XT YAG laser marking machine for metal parts are detailed as follow:
Good quality! Lowest price!! Best service!!!
Introductions:
YAG laser marker is a kind of solid laser marking machine which has the most extensive application and mature technologies. It is popular for the High photoelectric conversion rate,Low power consumption and stable laser output.
Highlights:
1. imported UK ceramic condenser chamber, resistant to elevated temperature and corrosion, long life (8-10 years), high photoelectric conversion rate, no need to adjust the lifting plate form to focus when doing engraving within 3mm depth, The speed of making one-time 1mm engraving is 3 times than our Opponent
2. Large power,controled by eletric and software,tunable
3. Low cost,without ink and other print consumables
4. Scanned with high precision by galvo head
5. 24 hrs continuously working
6. Depth: aluminium plate 5mm, steel plate 3mm
7 .Speed:5mm x 5mm steel plate:0.6mm in 10 minutes.
Applicable materials:
A):all kinds of ordinary metals and alloys(Iron, copper, aluminium, magnesium, zinc and all metals);
B):rare metals and alloys (gold, silver, titanium); metal oxides, ABS material (electrical appliancescase, daily necessities).
C): ink (translucent key-press, printing products),
D)epoxy resin(electronic components packaging, insulation layer)
Technical parameters:
Max.Outout Power |
50W |
Repetition Precision |
±0.03mm |
Laser Wavelength |
1064nm |
Machine power |
2KW |
Repetition Frequency |
≤50KHZ |
Electric Power Demand |
220V/Single Phase/50Hz/8A |
Standard Marking Scope |
100mmX100mm(optical) |
Optical-Path System Size |
1200mm*190mm*200mm |
Marking Depth |
≤1mm |
Controlling Size |
600mm*600mm*800mm |
Marking speed |
≤7000mm/s |
Min.Character |
0.3mm |
Min.Line Width |
0.015mm |
|
|

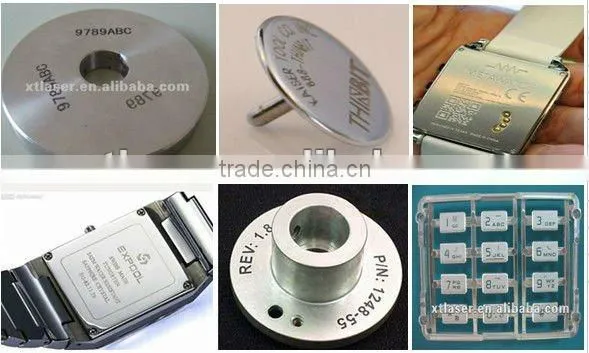

Marking photos
COMPANY PROFILE
Jinan Xintian Technology Co.,Ltd is professional manufacturer of laser equipment, established in 2004.
It is a professional manufacturer engaged in the research,development, production and service of
Diode pumped Laser marking machine, Fiber laser marking machine,CO2 laser marking machine,Pneumatic marking machine,Laser engraving machine,Laser welding machine, Laser cutting machine and Laser trimming machine.
CERTIFICATE
XT 50W hardware semi-conductor laser marking machine has passed the CE certificate and ISO9001:2008.
NAMECARD
OTHER PRODUCTS:
Except XT 50W hardware semi-conductor laser marking machine we have other models for your check:
Fiber laser marking machine,pneumatic marking machine,CO2 RF laser marking machine
