High Quality Aluminum Fabric Laser Cutting Machine Eastern Price
US$ 4,000 - 6,300
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Engraving Area:
1300*2500mm laser cutting machine eastern
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini CO2 Plywood Cnc Laser Cutting Machine PriceUS$ 4,000 - 6,300MOQ: 1 Set -
Co2 Laser Engraving Cutting MachineUS$ 2,590 - 2,590MOQ: 1 Set
-
Eastern Mini Laser Wood Engraving MachineUS$ 1,000 - 2,590MOQ: 1 Set
-
Newest Co2 Engraving Machine for Photo Frame Laser CuttingUS$ 1 - 3,500MOQ: 1 Set
-
High Quality Glass Co2 Laser Engraving MachineUS$ 3,000 - 8,000MOQ: 1 Set
Condition
New
Laser Type
CO2
Engraving Area
1300*2500mm laser cutting machine eastern
Engraving Speed
0-70000mm/s laser cutting machine eastern
CNC or Not
Yes
Cooling Mode
Water Cooling
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported
PLT
Place of Origin
Shandong, China
Brand Name
xintian laser cutting machine eastern
Model Number
XTE-1325 laser cutting machine eastern
Certification
CE, ISO
After-sales Service Provided
Engineers available to service machinery overseas
Welcome to contact XT laser by leaving a message below or send inquiry to xintian101(at) for further information.Your kind response of below questions will help us to recomemnd the most suitable model to you asap.
1,Are you looking for laser cutting machine or laser engraving machine?
2,Which material need to cut or engrave ?
3,What is the thickness and size of materials?
Product Description
laser cutting machine eastern Feature
- All working travel area has fixed width but infinite length material feeding.
- various power choices of laser tube for you to choose
- being able to engrave and cut most non-metal materials
- well-structured, customized design
- machine is able to work without connecting to a computer
- Leetro USB offline control system; front operate panel with LCD screen
- optional platform: honeycomb platform, up/down lifting platform
- water cooling system (water pump / water chiller), cools and protects the laser tube
- air pump, protects the material being engraved/cut from fire and helps to get better effect
- passed CE certificate
laser cutting machine eastern Application
Processing industries of large-acale engraving and cutting, clipping industry, building upholster industry, acrylic product industry, advertisement decoration industry, advertisement signs and marks making industry, crystal accessories industry, art gift industry, handicraft industry, package and printing industry, paper product industry, construction model industry, wooden and bamboo product industry, umbrella industry, cloth toys industry, computer embroidery industry, textiles industry, garment industry, clothing, shoes and leather industry, template cutting industry, plate making industry, middle density board, non-metal sheet precision cutting and other industries.
Materials Can Be Engraved
Processing industries of large-acale engraving and cutting, clipping industry, building upholster industry, acrylic product industry, advertisement decoration industry, advertisement signs and marks making industry, crystal accessories industry, art gift industry, handicraft industry, package and printing industry, paper product industry, construction model industry, wooden and bamboo product industry, umbrella industry, cloth toys industry, computer embroidery industry, textiles industry, garment industry, clothing, shoes and leather industry, template cutting industry, plate making industry, middle density board, non-metal sheet precision cutting and other industries.
Materials Can Be Engraved
acrylic, plexiglass, wood, bamboo, MDF, leather, rubber, glass, crystal, granite, marble, tile, ceramic, painted metal, metal coating, double-color sheet,etc.
Materials Can Be Cut
acrylic, plexiglass, wood, cloth, fabric, leather, MDF, plywood, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, double-color sheet, etc

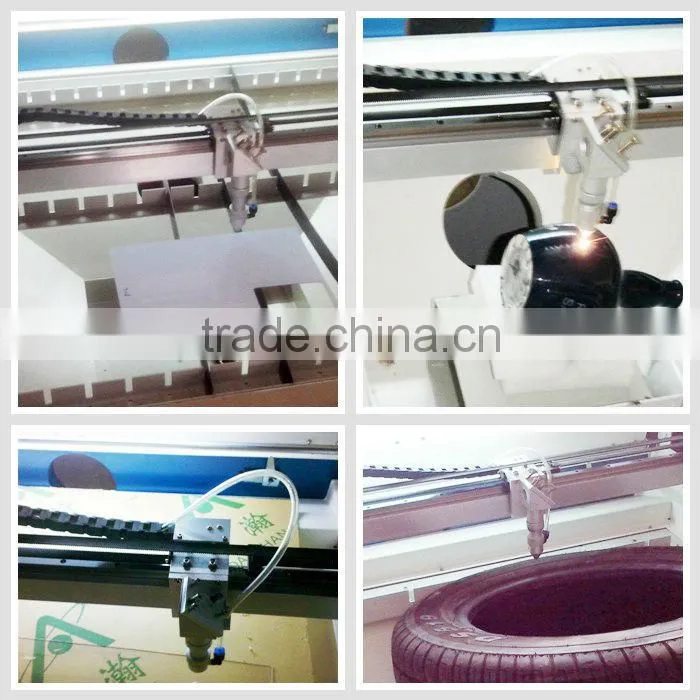

laser cutting machine eastern machine detailed information
|
laser cutting machine eastern Technical specifications
| Models Available | XTE-6040 / XTE-9060 / XTE-1290 / XTE-1490 / XTE-1325 |
| Laser Wavelength | 10.64μm |
| Laser Type | Sealed CO2 Laser Tube |
| Laser Power | * for Available, - for Unavailable |
| 40W | * / * / * / * / - |
| 60W | * / * / * / * / * |
| 80W | * / * / * / * / * |
| 100W | - / * / * / * / * |
| 130W | - / - / * / * / * |
| 150W | - / - / * / * / * |
| 180W | - / - / * / * / * |
| Control System | Leetro off-line control system |
| Control of Laser Power | 0-100% Controlled by software |
| Machine Control and Drive | Speedy DSP controlling, stepper motor |
| Max Engraving Speed | 60000mm/min |
| Max Cutting Speed | 30000mm/min |
| Repeating Location | 0.01mm |
| Minimum Character | Chinese characters: 1.5mm; English words: 1mm |
| Working Travel Area(W*L unit:mm) | 600*400 / 900*600 / 1200*900 / 1400*900 / 1300*2500 |
| Cooling System | Circulating-water-cooling(water pump) |
| Working Voltage | 220V/50Hz |
| Working Environment | Temperature:0-45°C, Humidity:5%-95% |
| Controlling Software Language | Chinese,English |
| Dictate Format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD, CoreDraw direct outputting |
laser cutting machine eastern standard accessories and optional parts
laser cutting machine eastern sample Photos
|
|
|
|
| |
Packaging & Shipping
laser cutting machine eastern packaging photo
laser cutting machine eastern after service
| 24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online. |
| One-year warranty is provided. (The detailed reference will be written into the final contract.) |
| Professional staff for installation and training if needed. |
| Spare parts are supplying on time or doing some inventory if promising certain sales volume. |
| Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful. |
| If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype. |
