China Manufacturer Diode Laser Machine PE Tube Engraver
US$ 7,000 - 13,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Diode
Engraving Area:
100*100mm 200*200mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2014 New Machinery Diode Laser Marking Machine for Watch MarkingUS$ 7,000 - 13,000MOQ: 1 Set -
New Cnc Diode Laser Marking Machine for Cosmetic JarsUS$ 7,000 - 13,000MOQ: 1 Set
-
Approved Diode Side-pump Laser Marking Machine for Saw BladeUS$ 7,500 - 13,000MOQ: 1 Set
-
New Product Diode Laser Marking Machine on Admeasuring ApparatusUS$ 7,000 - 13,000MOQ: 1 Set
-
New Product Diode Laser Marking Machine on Measuring InstrumentUS$ 7,000 - 13,000MOQ: 1 Set
Condition
New
Laser Type
Diode
Engraving Area
100*100mm 200*200mm
Engraving Speed
0-7000mm/s
CNC or Not
Yes
Cooling Mode
Water Cooling
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin
Shandong, China
Brand Name
XINTIAN laser engraving machine
Model Number
XTL-DP50
Dimension(L*W*H)
optical
Certification
CE, ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1:diode laser machine PE tube engraver;2:metal and some nonmetal ;
3:High speed and precision;
4.ISO/CE
diode laser machine PE tube engraver
| Features |
1. Adopts famous-brand semi-conductor module, beam quality good, and laser power is stabile, life time over 10k hours.
2. Sharp laser beam, high speed and precise marking, beam stable and reliable, low processing costs.
3. Software: with red preview, mirror marking, graphical alignment, hierarchical set parameters functions.
4. With professional constant temperature water cooling system, 24-hour continuous working is reliable. Be applicable to production lines.
5. Rotary worktable system is optional, thus, accomplish marking on cambered surface.
6. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW,
AUTOCAD, PHOTOSHOP etc. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font.
7.Rotary euipment optional.
8,No consumable.
| Application |
The machine can be used in components of automobile and motorcycle, astronautic apparatuses, chips of integrate circuit electronics, packages of food, drink and cigarettes, keys of mobile phone, batteries, electric apparatuses, fittings and peripheral equipments of computer, ironware tools, stainless steel wares, electric products, communication products, medical devices, sanitation, cleaning and bathing wares, clocks and watches, jewelries, industrial bearings, electric wire and cable, garment.It can mark both words and graphs.
| Technical Specifications |
Max.Outout Power |
50W |
Repetition Precision |
±0.03mm |
Laser Wavelength |
1064nm |
Machine power |
2KW |
Repetition Frequency |
≤50KHZ |
Electric Power Demand |
220V/Single Phase/50Hz/8A |
Standard Marking Scope |
100mmX100mm(optical) |
Optical-Path System Size |
1200mm*190mm*200mm |
Marking Depth |
≤1mm |
Controlling Size |
600mm*600mm*800mm |
Marking speed |
≤7000mm/s |
Min.Character |
0.3mm |
Min.Line Width |
0.015mm |
|

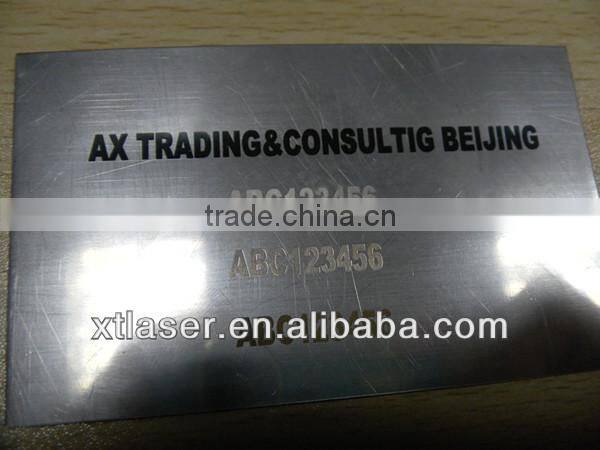

| Sample Photo |
| Package Photo |
| After-sale Service |
| 24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online. |
| One-year warranty is provided. (The detailed reference will be written into the final contract.) |
| Professional staff for installation and training if needed. |
| Spare parts are supplying on time or doing some inventory if promising certain sales volume. |
| Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful. |
| If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype. |
| Company, Exhibition, Certification |
Jinan XinTian Technology Co., Ltd was established in 2004. It is a professional manufacturer engaged in the research, development, production and service of Diode pumped Laser marking machine, Fiber laser marking machine, CO2 laser marking machine, Pneumatic marking machine, Laser engraving machine, Laser welding machine, Laser cutting machine and Laser trimming machine.
| The Series Of Products |
We have a variety of product models for your check:
- fiber laser marking machine
- Semiconductor side-pumped laser marking machine
- CO2 RF laser marking machine
- pneumatic marking machine
