CO2 Laser Marking Machine for Non-metal Materials Bar Code are detailed as follow:
High-speed CO2 Laser marking machine, using imported high-power CO2 RF laser tube and high-speed scan galvanometer system. Equipped with high qualified optic components, stable laser electrical source and full auto-controlling system. Marking precision is high, speed is high and the performance is super stable, so it can work continuously within long time. It can be directly applied to mass manufacturing streamlines.
Equipment Features:
1. General machine, adopted back focalization, laser power is controlled by the software and serially adjustable, so it applicates to cut and mark nonmetal materials on big area.
2. Adopting imported CO2 RF laser tube which has excellent performance and long life (20k hours).
3. Adopting imported American high-speed galvanometer system with high speed, high precision and stable performance.
4. Adopting imported optics lens, low loss, excellent focalization performance.
5. The marking software is mightiness, under WINDOWS interface, compatible with CorelDraw, AutoCAD, Photoshop etc. a variety of software output files. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font. Support automated coding, serial number, batch number, date, bar code and two-dimensional code marking.
Picture:
Materials:
Majority of nonmetal materials such as leather, cloth, wood, bamboo, paper, organic materials, plastic, epoxy resin etc.
Application
All kinds of non-metal materials, widely used in electrical communication, clock, glasses, plastic, signs, package, artwork, leather, lumber, textile, decorating industries for the character engraving on the 3M label, packages, woodwork surface, plastics, acrylic and so on..
Fields:
Electronic components, medicines, food, drinking package, leather products, rag trade, woodworks, craftworks and package.
Technology Parameters
| type | XTL-CS30 |
| maximum laser output power | 30w |
| marking width | 100*100mm |
| marking line width | 0.15-0.3mm |
| marking depth | 0.01-3 |
| marking speed | ≤700mm/s |
| electric power requirements | 220v/50hz/10A |
| control system | 580*600*780mm |
| host machine system | 1070*500*1220mm |
| cooling requirements | wind cooling |

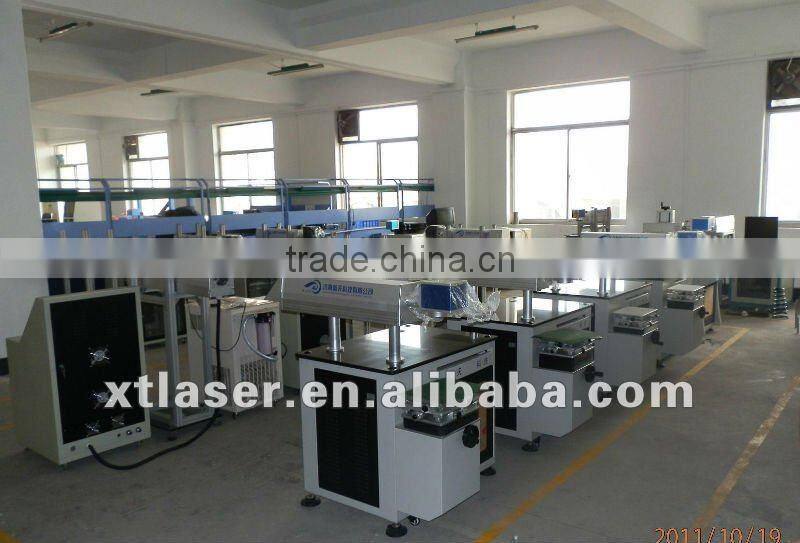

Workshop Picture:
