Home > Electrical & Electronics > Antenna > Communication Antenna > 16 Way ABS Box Optical Fiber PLC Splitter With FC/UPC Connectors

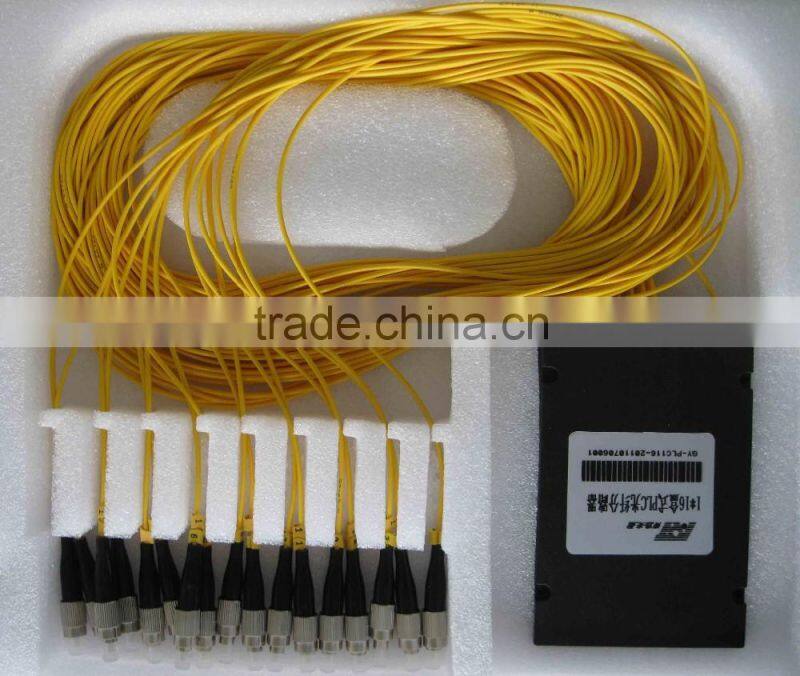

16 Way ABS Box Optical Fiber PLC Splitter With FC/UPC Connectors

US$ 12 - 12 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

APT

Model Number:

Contact Supplier Request Quote Chat Now

Qingdao Applied Photonic Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name APT

Model Number SM

1.Product Introduction
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in PON networks to realize optical signal power management.

Cassette-type PLC splitter put PLC splitter chip and input/output array packaged in a samll box,which derivtived by fiber diameter up to 2mm or 3mm.fiber can be used for welding,can also be processing various types of optical fiber connectors.

Qingdao APT provides a whole series of 1xN and 2xN splitters that are tailored for specific applications. All products meet YD/T1117-2001 All optical fiber branching device technical conditions ,YD-T 2000-209 PLC Integrated optical devices PLC optical power splitter>> etc, and are certified by TLC for network deployment.

2.Specifications
1*2,1*4,1*8,1*16,1*32,1*64(with/without connectors)
2*2,2*4,2*8,2*16,2*32,2*64(with/without connectors)

3. Performance and Technical parameters

Technical data	Specification(without connector loss)
work wavelength (nm)	1260-1650
type	1*4	1*8	1*16	1*32	2*4	2*8	2*16	2*32
Insertion loss (dB)	≤7.3	≤10.5	≤13.5	≤17.0	≤7.6	≤11.0	≤14.5	≤17.5
Uniformity (dB)	≤0.6	≤0.8	≤1.2	≤1.5	≤0.8	≤1.5	≤1.5	≤2.0
PDL(dB)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.2	≤0.4	≤0.4	≤0.4
Return loss (dB)	>50		directivity(dB)			>55
Work temperature (℃)	-40-+85		storage temperature (℃)			-40-+85

duct size(mm)

type	1*2	1*4	1*8	1*16	1*32
L×W×H	100×80×9	100×80×9	100×80×9	120×80×18	140×114×18
type	2*2	2*4	2*8	2*16	2*32
L×W×H	100×80×9	100×80×9	100×80×9	120×80×18	140×114×18

5.ordering information

product name	bare PLC splitter
specification	12,14,18,116,1*32,( with/without connectors)
specification	22,24,28,216,2*32,( with/without connectors)
quantity	user-defined
