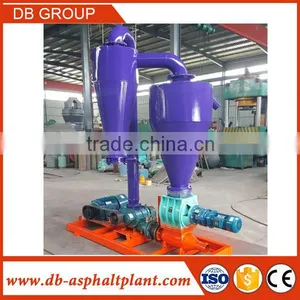

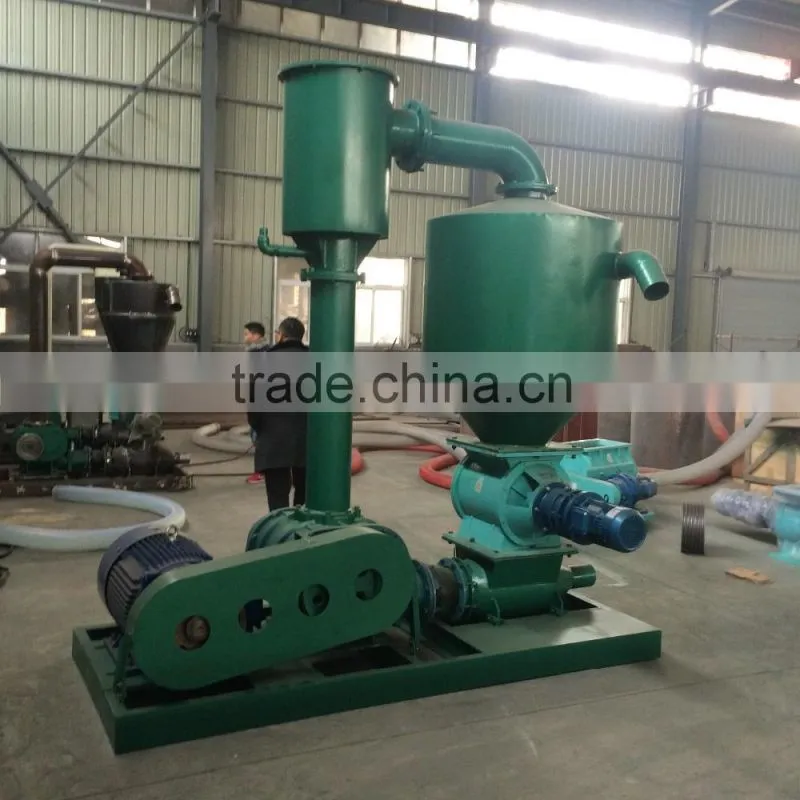

India Philippine Thailand hot sale rice sugar salt grain pneumatic conveyor
Usage of Pneumatic Conveyor
Pneumatic Conveyor is mainly used in warehouses, food processing plants, small tonnage dock for unloading bulk granular absorbing materials, such as wheat, rice, rice bran,corn, rapeseed, soybean, cottonseed, fodder, etc., can also be used to promote the granule-like fertilizers, plastics cement and other handling, especially out of the warehouse transshipment operations applicable to storage of materials.
Main features of pneumatic vacuum grain conveyor
1. Strong power and big conveying quantity
2. Flexible application and grain hanging conveyor
3. Advanced technology and cost-saving
4. Safe and simple installation and commissioning.
5. Simple structure and less&easy maintenance.
6. High efficiency and energy-saving.
7. Easy operation.
Technical parameters
Machine Model |
DB-5 |
DB-10 |
DB-20 |
DB-30 |
DB-55 |
DB-75 |
|
Convey capacity (t/h) |
5 |
10 |
20 |
30 |
55 |
75 |
|
Power of Air Blower (KW) |
7.5-8 |
11-11.5 |
22-23 |
37 |
45 |
55 |
|
Power of Close the wind machine(KW) |
0.75 |
0.75 |
1.1 |
1.5 |
1.5 |
1.5 |
Total power(KW) |
8.25 |
11.75 |
23.1 |
38.5 |
46.5 |
56.5 |
Fan speed (rpm) |
3600 |
4100 |
4100 |
4100 |
4200 |
4400 |
Airlock speed(rpm) |
60 |
60 |
60 |
60 |
60 |
60 |
Feed pipe diameter(mm) |
124 |
150 |
160 |
160 |
200 |
225 |
Pipe diameter (mm) |
100 |
124 |
160 |
160 |
200 |
225 |
|
Horizontal maximum transmission distance(m) |
30 |
50 |
120 |
170 |
200 |
200 |
Maximum distance(m) |
8.5 |
10 |
30 |
50 |
70 |
80 |
Max.lift head (m) |
5 |
8 |
18 |
30 |
37 |
42 |
Total weight(KG) |
415 |
460 |
600 |
900 |
1250 |
1420 |
|
Dimension (length * width * height) mm |
1780*1058* 1550 |
1780*1058* 1550 |
2320*1320* 2720 |
2380*1600* 2720 |
2500*1750*3100 |
2800*2100*3300 |
