120t/h Asphalt Mixing Plant for Sale With Better Price
US$ 120,000 - 200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Double Birds
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Famous Asphalt Batching Plant PriceUS$ 199,893 - 210,659MOQ: 1 Set -
40t/h Small Mobile Asphalt Mixing Plant Price for Sales LB800US$ 25,000 - 50,000MOQ: 1 Set
-
Construction Equipment Used Asphalt Plant for SaleUS$ 199,893 - 210,659MOQ: 1 Set
-
China Asphalt Mixing Plant 120 for SaleUS$ 219,600 - 219,600MOQ: 1 Set
-
Used Asphalt Batching Mixing Plant for SaleUS$ 199,893 - 210,659MOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
Double Birds
Model Number
LB1500
Voltage
380v
Power(W)
200kw
Dimension(L*W*H)
40*30m
Weight
85t
Certification
CE and Iso
Warranty
15 months
After-sales Service Provided
Engineers available to service machinery overseas
LB1500 ----120t/h Asphalt Mixing Plant for sale with better price
Product Description
LB AsphaltMixing Plant mainly including: cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower, dust collecting system, filler supply system, bitumen supply system, electronic control system, finished asphalt storage bin…
General Information:
| Model | LB1500 Stationary Asphalt Mixing Plant |
| Plant Capacity | 120t/h |
| Oil Consumption | 5.5-7 kgs/t |
| Aggregate Weighing Accuracy | ±0.3% |
| Filler Weighing Accuracy | ±0.3% |
| Bitumen Weighing Accuracy | ±0.15% |
| Capacity of the Mixer | 1500kgs/batch |
Components of LB1500 Batching Asphalt Plant Manufacturer For Sale
|

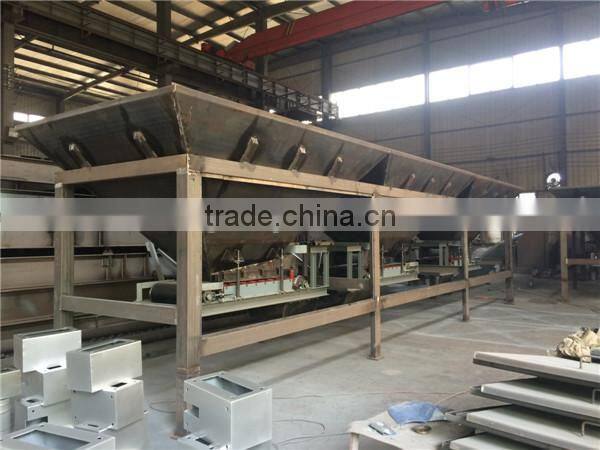

1.Cold aggregate supply system Components: storage bins and belt feeder , aggregate belt conveyer. Features: The feeding belts are driven by variable frequency electric motors, which feature reliable performance. The cold aggregate feed bin features modular design for easy transportation. We have 3,4,5 storage bins for your choice. | ||||
|
2. Tilted Charging Conveyor Belt Assembly Components : tilted charging conveyor belt, middle filter sieve Feature: gravity middle filter sieve, little dust overfall, prevent larger waste fall into drying drum, be good for reducing heat lost, prevent jamming hot aggregate elevator or vibrator. | ||||
|

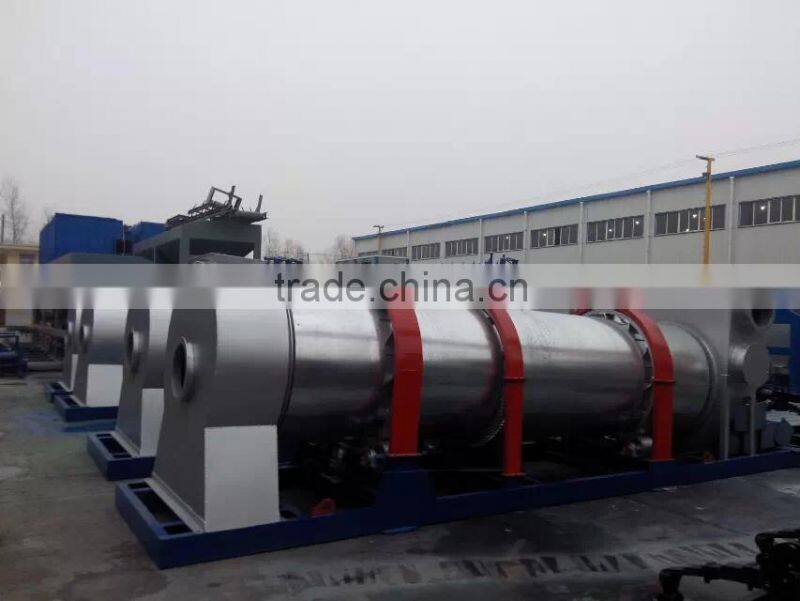

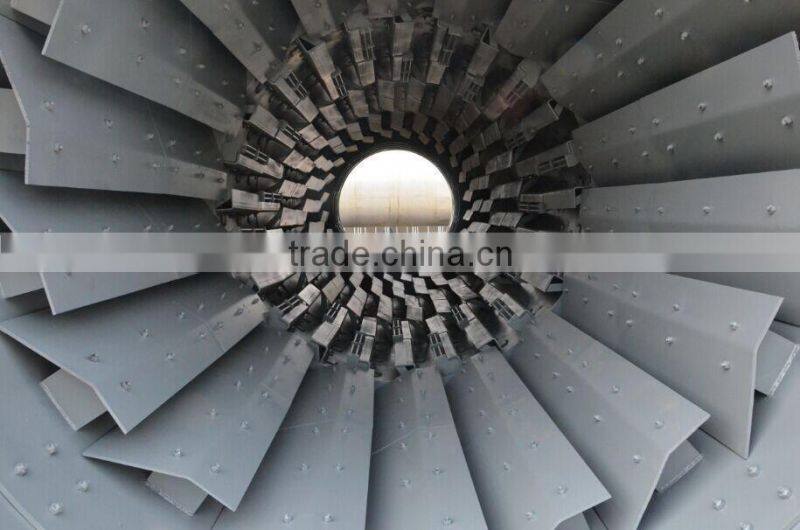

3.Drying drum The drum lined with a 50mm thick insulation (rock wool).Aggregate lifting flights that assist the heat exchange between aggregates and flame are installed inside the dryer drum, which enables the drum dryer to reach maximum heating efficiency.Four friction rollers for smooth drive and evenly distributed forces. | ||||
|
4.Burning system For the burner , we have fuel burner (light oil, for both light and heavy oil), coal burner or for both fuel and gas use burner, pipelines,oil tank | ||||
|

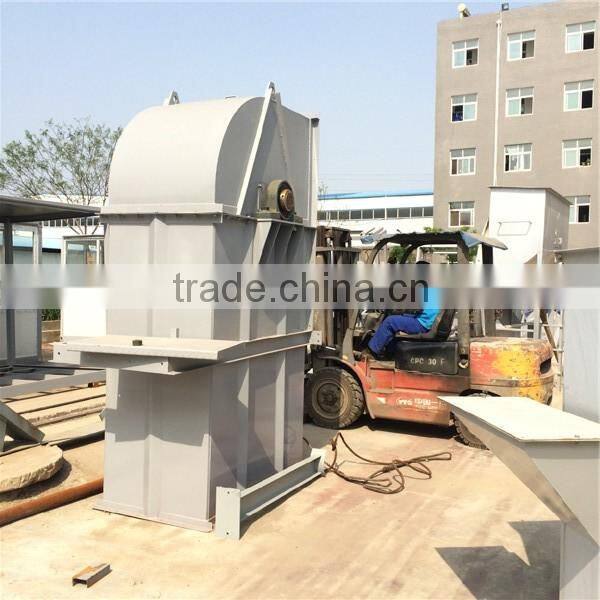

5.Hot aggregate elevator Elevated by Single row of chain,special structure for outlet will reduce the abrasion and noises. | ||||
|
6.Dust removal system 1.bag house 2. gravity separator (snail shell shaped), 3.cyclone separator 4.wet scrubber | ||||
|
7. Mixing building Vibrating Screen Hot aggregate hopper weighing hopper Mixing device Features: a.Asphalt mixing plant which designed and manufactured adopts european techniques. b.Double-shaft retrograde rotation,making the aggregate overturn up and down 15-20S , to ensure the mixture to be mixed well. Bitumen spray system | ||||
|
8.Filler supply system Components: Filler elevator, Filler temporary storage bin, spiral conveyor. The outlet of the screw conveyor is installed with a butterfly valve to control the wallop. The filler interim silo is equipped with a pneumatic arching break unit. | ||||
|
9. Pneumatic control system Components: air compressor, cylinders, valves and air pipe manifold. Reliable FESTO air cylinders and electromagnetic valves are used. | ||||
|

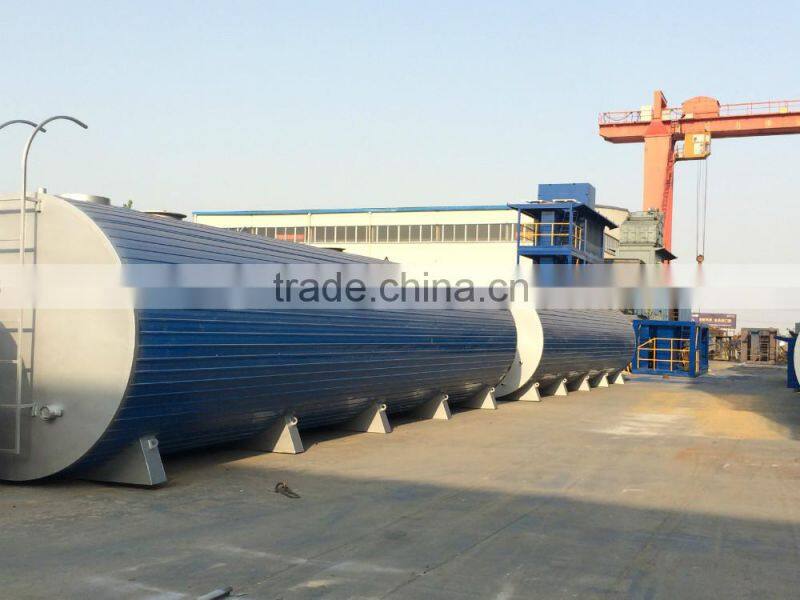

10.Bitumen supply system Components: bitumen discharge vessel,bitumen tank, heat conducting oil boiler, light oil burner, pipe manifolds, pumps and valves. Features: 1.Reasonable bitumen pipe arrangement with insulation to reduce heat loss 2. Heat conducting oil boiler with automatic control system for independent operation and control. 3.Bitumen tanks with level and temperature indicators | ||||
|
11. Electric control system 1) control room:Container pattern structure. 2).Box type control cabinet, main electric parts are SIMENS , Schneider, ABB etc. global famous brand.Functions of interlock and secondary protection.Start of large power electric motors at reasonably low voltage.ü The operation board configured with manual controlled urgent operation device, digital displays of aggregate scales, filler scales and bitumen scale, digital converters of cold aggregates, temperature displays of key positions and electric current displays of critical components | ||||
|
12. Bottom Placed Hot Mix Asphalt Silo 1.The hot mix asphalt silo is insulated with rock wool, which effectively reduces heat loss and extends the storage duration of hot mix asphalt. 2.The hot mix asphalt silo placed beneath the platform of mixing tower can considerably reduce the plant floor space. |

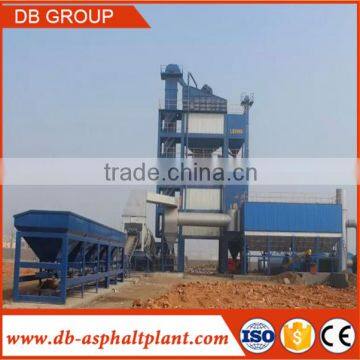

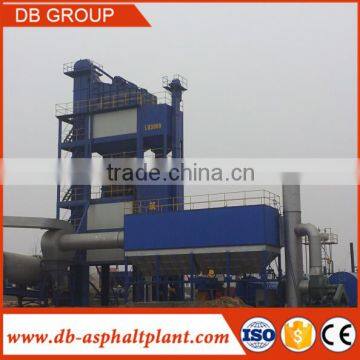

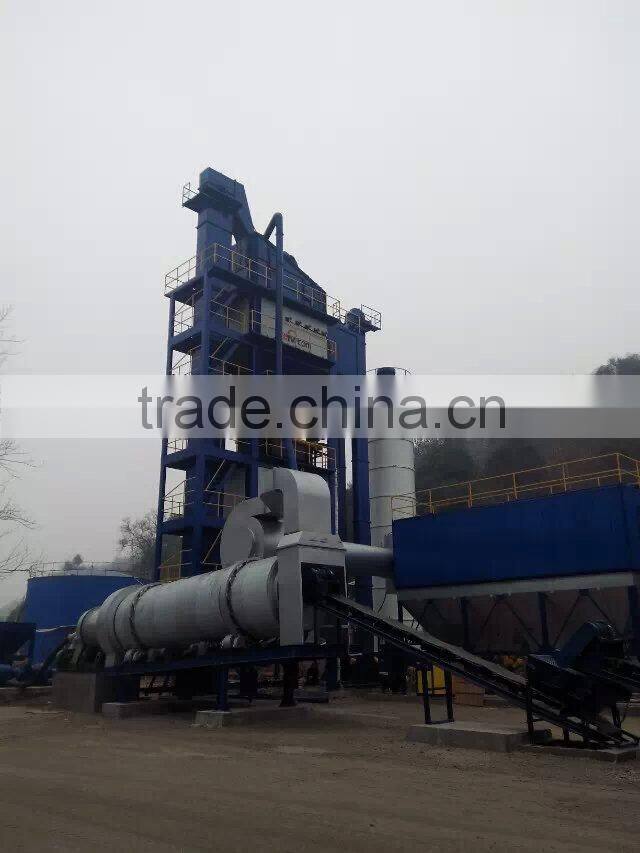

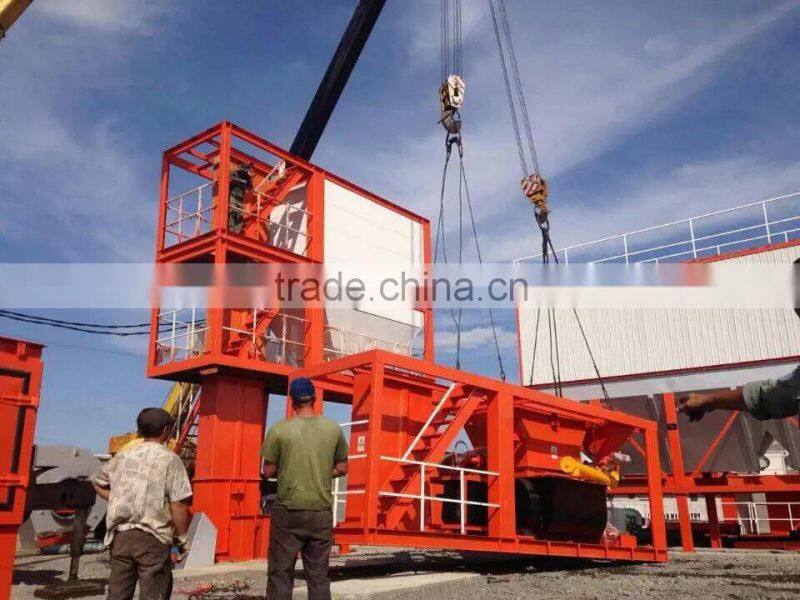

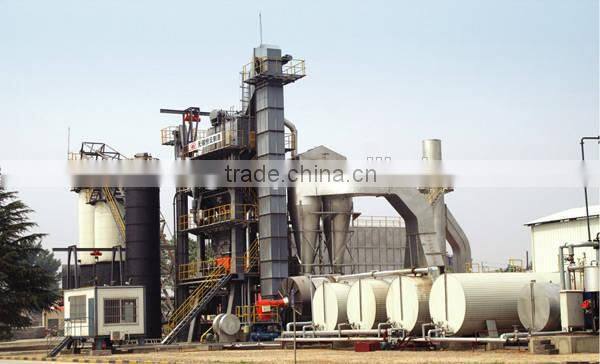

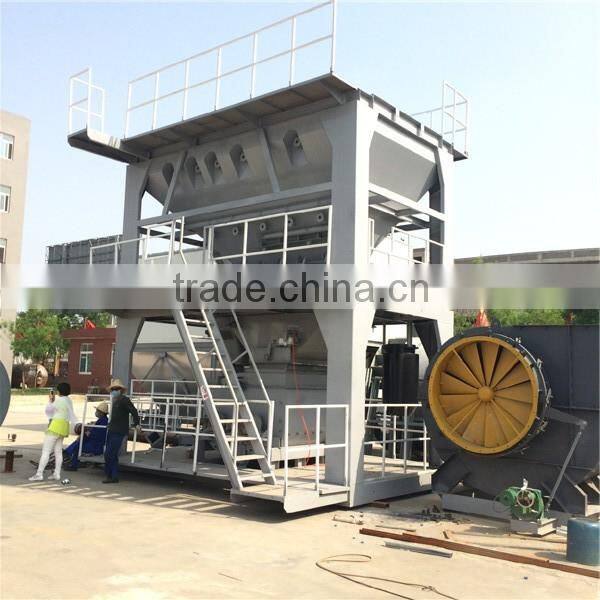

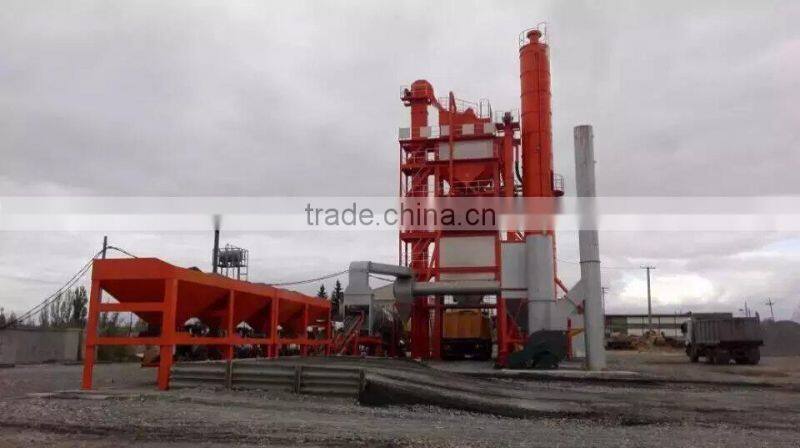

more photos of the asphalt mixing plant :
if you want to know more , please contact with me,
