Home > Manufacturing & Processing Machinery > Mixing Equipment > Drum Mixer > Asphalt Batching Plant Price, Asphalt Mixer, 40 Tons per Hour

Asphalt Batching Plant Price, Asphalt Mixer, 40 Tons per Hour

Name: Asphalt Batching Plant Price, Asphalt Mixer, 40 Tons per Hour
Brand: Double Birds
SKU: 133954753
Availability: InStock

Asphalt Batching Plant Price, Asphalt Mixer, 40 Tons per Hour thumbnail-1

Asphalt Batching Plant Price, Asphalt Mixer, 40 Tons per Hour photo-1

US$ 120,000 - 200,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Henan, China

Brand Name:

Double Birds

Contact Supplier Request Quote Chat Now

Zhengzhou Double Birds Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Henan, China

Brand Name Double Birds

Model Number LB800

Voltage 380v

Power(W) 200kw

Dimension(L*W*H) 40*30m

Weight 85t

Certification CE and Iso

Warranty 15 months

After-sales Service Provided Engineers available to service machinery overseas

High Quality Asphalt Mixing Plant/Asphalt Batching Plant

LB500 Asphalt Hot Mix Plant

SAP40 Asphalt Hot Mix Plant adopts modular structure, reasonable layout, simple and compact structure, suitable for container transportation, installation demolition convenient.

SAP40 Asphalt Hot Mix Plant is suitable for producing small amount of road maintenance projects.

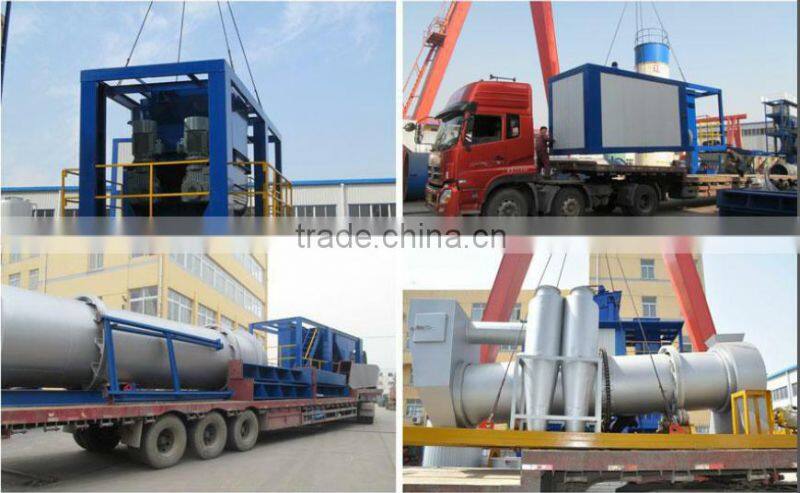

Equipment installation and transportation

The equipment is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.

All the components can put into the container, can greatly reduce transport cost.

No foundation and modular design, can induce the install and disassembly time to the shortest.

SAP40 Asphalt Hot Mix Plant Technical Parameter

Item	Parameter	Remark
Capacity	40t/h	Rated condition
Cold aggregate bin	4
Dry drum	Φ1200mm×5.5m,Diameter: 1200mm×5.5m, capacity: 60t/h	Chain drive, with insulating layer outside, with stainless steel
Burner	Diesel/heavy oil	Coal burner is optional
Dust collection system	Water dust collection system	Bag house dust collection is optional
Mineral powder supply system	20m³ mineral powder hopper(PHE is optional)	Tank top dust catcher
Mix tower	Four deck vibration screen
	Double shaft double helix forced mixer
	3 points pulling electronic weighting sensor, aggregate: 500kg, powder: 100kg, bitumen: 50kg
Control system	One set
Bitumen heating supply system	300000 kcal thermal oil furnace	Optional
Bitumen heating supply system	40000L horizontal bitumen tank(direct hest), bitumen conveying system
Fuel oil supply system	Heavy oil, diesel pump system one set, 20000L heavy oil tank
Finished product storage bin	Finished product storage bin, electrical/gas path system one set, discharging cross-bars body heat conduction oil heating(electrical heating)	Optional
