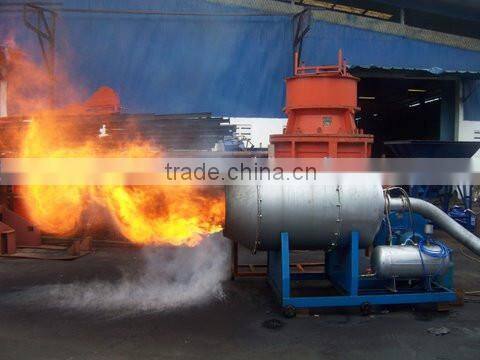

♣Pulverized coal burner/Asphalt Heater Equipment /Rotary Coal Burner
MFR series coal burner features:
1. MFR20 Coal Burner using the exclusive revolving burning chamber to solve traditional burning problems, such as relict agglomeration and burning incompletely
2. High flame temperature, more energy-saving.
3. MFR20 Coal Burner is equipped with exclusive fire-brick, prolonging the service life
4. With simple and convenient ignite way; manual or automatic way is optional.
5. MFR20 Coal Burner could work continuously, don’t need to clear clinker every day.
6. Compared with oil burner, coal burner costs lower.
7. The whole burner is could be automatically controlled.

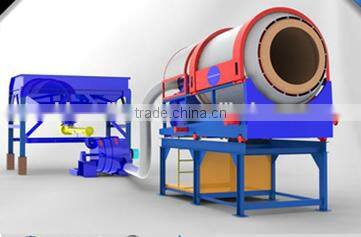

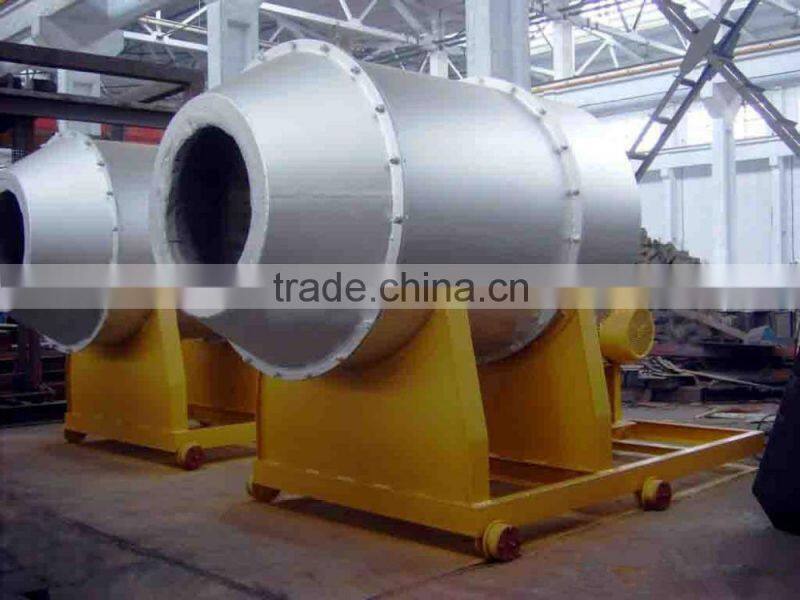

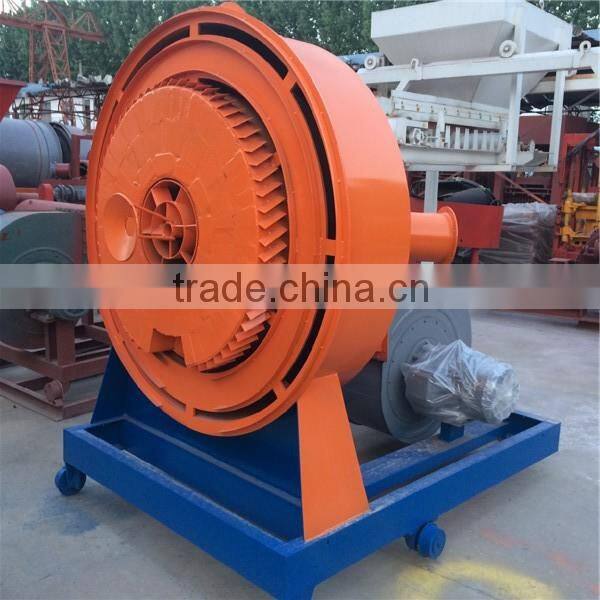

♣Pulverized coal burner/Asphalt Heater Equipment /Rotary Coal Burner
MFR20 Coal Burner | |
Coal consumption: 180-280kg/h |
Flame diameter: 0.4m;Flame length:0.6-1m |
Working noisy ≤85dB(distance about 1m) |
Total power:21.75kw |
Power of reducer:1.5kw |
Power of rotate motor:1.5kw |
Ignition Fuel System | |
Oil pump: CB-B10 |
Overflow valve: Y-25 |
Pressure gage: 0-4MPa |
Motor power: 0.75KW |
Fuel oil for ignition: 0# diesel |
|
Air system | |
Blower |
Motor power: 5.5KW |

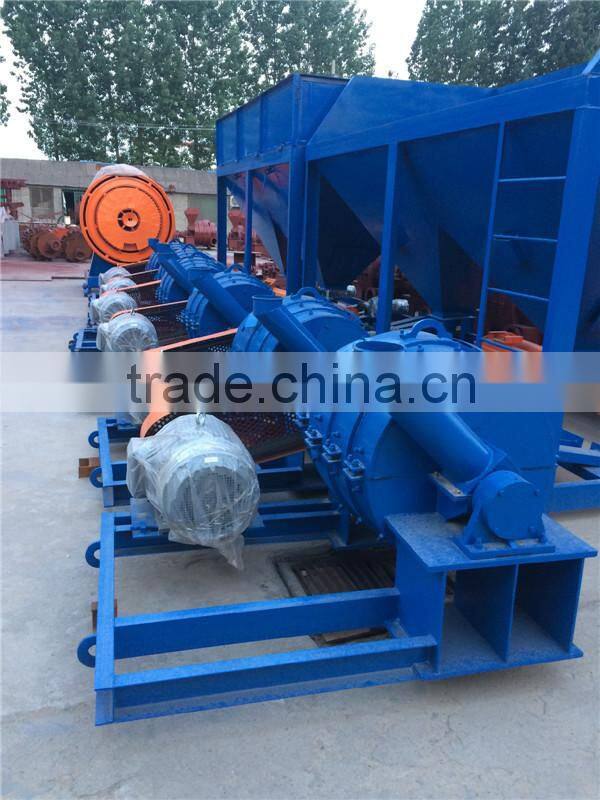

Coal powder grinding machine | |
Model: MFJ20 |
capacity:180-280kg/h |
Feed aggregate size: ≤25mm |
Discharging size: R90≤20% (0.09mm residual volume mesh) |
Main motor power: 11KW |
Main motor speed: 1470rpm |
Adjustable-speed motor power: 1.5KW |
Adjustable-speed motor speed adjustable range: 250-160 |
Speed of main shaft: 1700rpm |
Hopper volume: 0.2m3 |
Dusting distance: 7-12m |
Speed of screw conveyor: 8.3-80rpm |

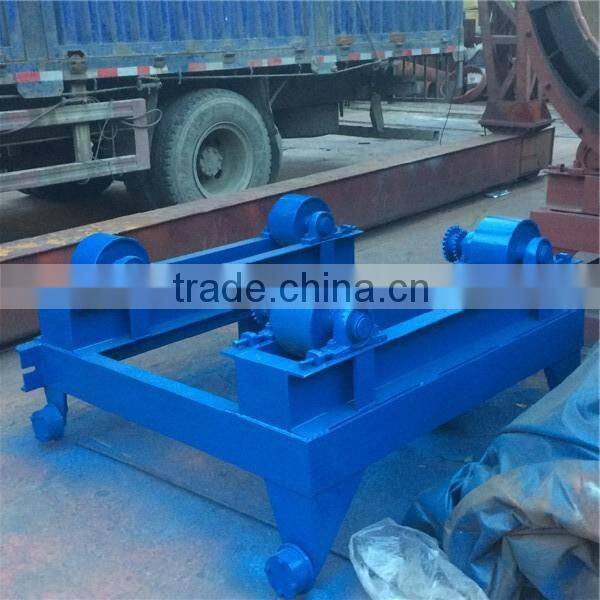

♣Pulverized coal burner/Asphalt Heater Equipment /Rotary Coal Burner

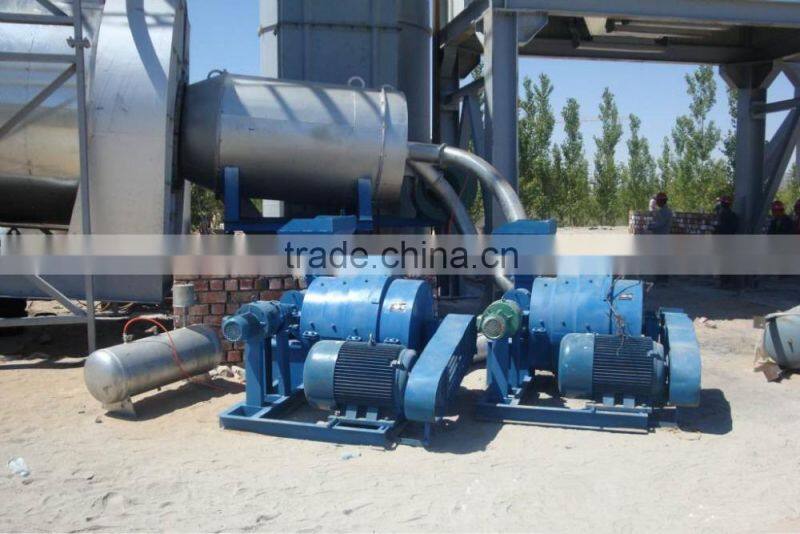

♣Pulverized coal burner/Asphalt Heater Equipment /Rotary Coal Burner
Electric Coal Burner, Coal Burner for Rotary Kiln CUSTOMER:
if you want to know more information and the quotation, please contact me, i will reply to you in two hours
