[ DATAN ] GS1525 Series Cnc Gantry Milling Machine

GS1525 cnc machining center is large gantry and high rigidity of DATAN

1. Structure

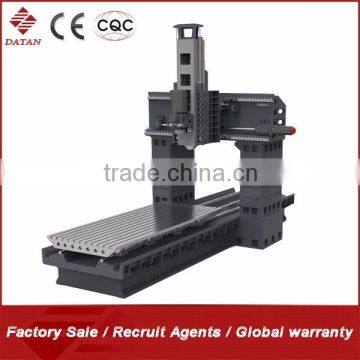

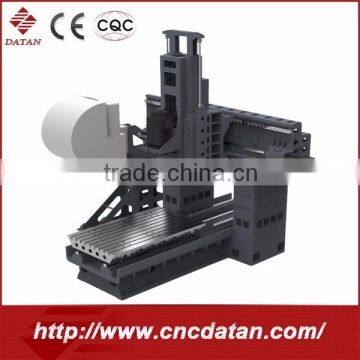

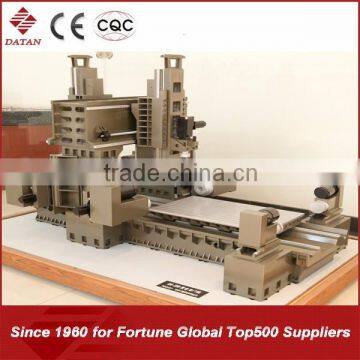

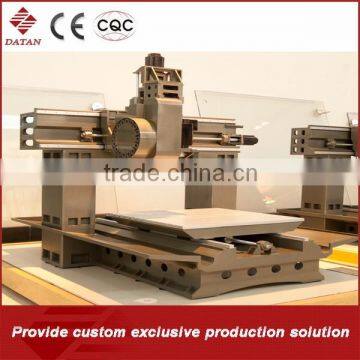

A gantry frame structure is adopted with cast iron bodies. The gantry frame consists of bed, movable table, left & right columns, top beam, cross rail, horizontal saddle and milling head. There are three feeding axes, ie. X axis for travel of working table, Y axis for horizontal travel of saddle and Z axis for vertical travel of ram. Simultaneous control of each two or three axes can be achieved.

2. Standard accessories

Hand-held operating unit, indicating lamp, automatic lubrication system, hydraulic system,water gun,air conditioner for electrics, automatic chip conveyor & chip collection trolley, cnc controller etc.

3. Wide Range of Applications:

1. Basing on its super rigid & stable structure, big machining capacities, efficient cutting yield,heavy table load capacity, it has a wide application in,
2. Engineering & general machining
3. Motor,pump,valve & bearing
4. Turbine, wind mill, power generator,etc

GS1525 cnc gantry machining center features:

1) Strong massive machine is absolutely an essential part for gantry type machining center .Made of qualified Meehanite cast iron GC-276 and dealt with tempering treatment ,DATAN machines have high rigidity and admirable stability.

2). Structure size with finite element analysis(FEA) brings static rigidity and shock resistance of machine to a full play ,preventing the appearance of cutting resonance ,thus enhancing processing accuracy and prolonging tool service life.
