[ DATAN ] High Quality 4 axis rotary table mini cnc machine center

Name: [ DATAN ] High Quality 4 axis rotary table mini cnc machine center
Brand: DATAN
Availability: InStock

FOB Price

USD $19,950 - $29,950 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
Place of Origin	Zhejiang, China	Brand Name	DATAN
Model Number	ME500	Voltage	220V/380V
Power(W)	3.7 kw	Dimension(LWH)	2200x2000x1800 mm
Weight	2000 kg	Certification	ISO CE
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

[ DATAN ] High Quality 4 axis rotary table mini cnc machine center

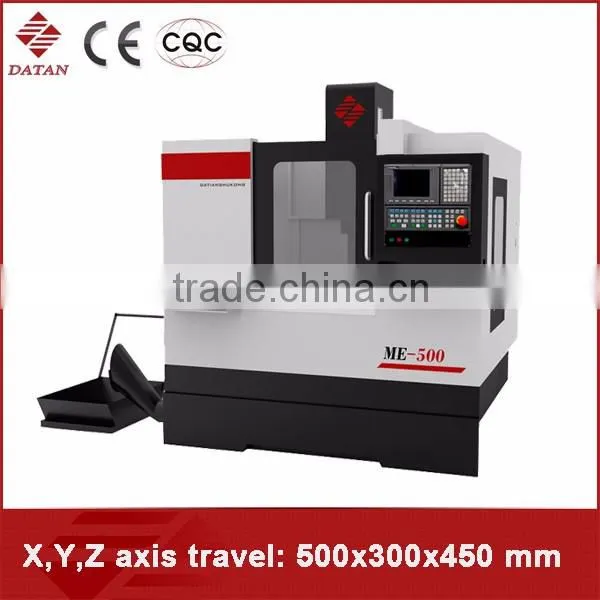

ME500 is 4 axis rotary table cnc machine center of Datan

CNC Controller,Spindle.ATC and etc.Main Parts from Taiwan,Performance Stable.
The main machine components(machine bed ,sliding saddle ,worktable) adopted the structure of thermal symmetry and thin-walled main stock with multi-layer ribs. arch shape column with high rigidity goes through optimized treatment by finite element analysis to guarantee the best rigidity.
The adoption of C3 grade precise ball screws and the use of special bearing on the ball screw with pre-pull treatment as well as laser detective compensation have ensured the rigidity and precision.
The main base parts of machine are made from high-grade ,high quality gray casting iron with aging treatment, the guide rails with high-frequency quenching treatment and delicate grinding ,covered with low frictional coefficient TURCITE-B and dealt with delicate scraping ,having effectively improved motional quality of machine and necessary touching rigidity for cutting.
The adoption of balance weight block with motion-based device has prevented the spindle form vibration when weight-balanced block moves up and down, avoiding influencing the processing accuracy.

DATAN Specification

Model No.			ME500	ME650
Capacity	X axis travel	mm	500	650
	Y axis travel	mm	300	400
	Z axis travel	mm	450	450
	Spindle nose to table surface	mm	90-540	15-600
	Spindle nose to column surface	mm	350	450
Worktable	Table size (L×W)	mm	600×300	780×360
	Max load on the table	kg	500	600
	T-slot size	mm	18×3×105	18×3×110
Spindle	Spindle speed	rpm	60-8000	60-8000
	Spindle taper/spindle shank	mm	7/24 taper BT40	7/24 taper BT40
	Max spindle inner diameter	mm	60	60
	Spindle motor	kw	3.7	5.5
Feed rate	X,Y,Z rapid traverse	M/min	36/36/36	36/36/36
Feed rate	Max cutting feed rate	M/min	10	10
A.T.C	Tool storage capacity	pc	Arm type 16	Arm type 16
	Max tool diameter	mm	150(70)	150(70)
	Max tool length	mm	250	250
	Tool change time(T-T)	sec	2.5	2.5
Accuracy	Positioning accuracy	mm	0.01	0.01
Accuracy	Repeatability positioning accuracy	mm	0.006	0.006
Machine size	Machine height/mm	mm	1800	2260
	Space requirment(L×W)	mm	2200×2000	2400×2000
	Net machine weight	kg	2000	3000
	Power requirment	KVA	10	10
	Drive motor	kw	1.0/1.0/1.0	1.2/1.2/1.2
	Control system		Siemens808D	Siemens808D

Product Description

Finished parts
