2015 Good Price Tungsten Carbide Scrap
Contacting Now for Free Samples
MACFSSC Principle for Inserts Selection
It is particular important for the selection of cnc machine tools. Due to the various brands and models of machine tools in the market, are you troubled by choosing the right ones. Selecting suitable tools can improve machining precision, reduce the defective goods, cost of tools and extend the service life of cutters.
And Here comes the MACFSSC Principle in choosing inserts:
Tool selection is very complex, so, free consulting immediately to Datan professional tool engineer......
Mail: slash(at)
Skype: slashchen007
Tell: +86 159 6241 0804

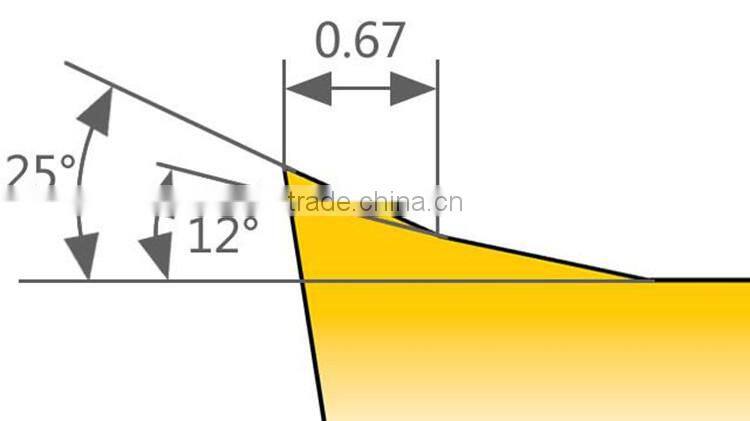

Geometry Details for 2015 Good Price Tungsten Carbide Scrap
Geometry Features:
1. AL for aluminum alloy cutting.
2. Sharp tool nose due to large rake angle.
CCGX 2015 Good Price Tungsten Carbide Scrap -Grade Details
| Grade | Cutting Range | Coating | Advantage |
| NDA51 | Semi-finishing |
|
1. Micro-grain carbide substrate with high |

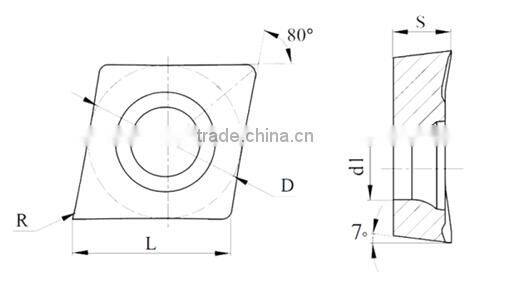

CCGX-AL, Rhombic 80°, with Hole
| Ordering Code | Dimensions(mm) | ||||
| L | D | S | d1 | R | |
| CCGX060204-AL | 6.5 | 6.35 | 2.38 | 2.8 | 0.4 |
| CCGX060208-AL | 6.5 | 6.35 | 2.38 | 2.8 | 0.8 |
| CCGX09T304-AL | 9.7 | 9.525 | 3.97 | 4.4 | 0.4 |
| CCGX09T308-AL | 9.7 | 9.525 | 3.97 | 4.4 | 0.8 |
| CCGX120404-AL | 12.9 | 12.7 | 4.76 | 5.5 | 0.4 |
| CCGX120408-AL | 12.9 | 12.7 | 4.76 | 5.5 | 0.8 |
Two Simple Steps of Cutting Tool Selection
Step 1, According to shaps of Insert——
Pls click the blue underline words for checking

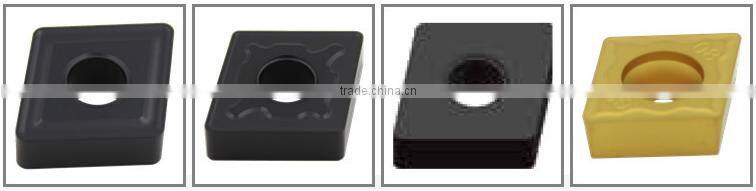

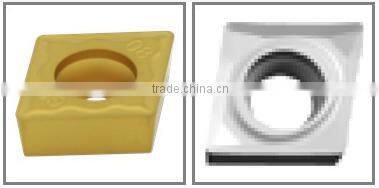

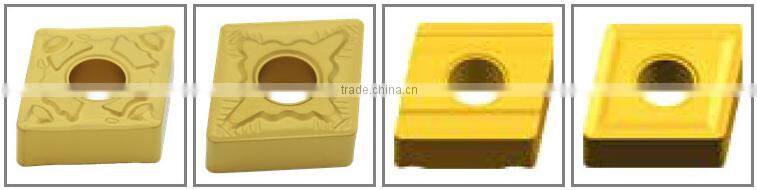

80° Rhombic 55° Rhombic 90° Square
60° Triangle 35° Rhombic 80° Trigon
Step 2, According to Grades Insert——
Pls click the blue underline words for checking
FQ for finishing of MQ for semi-finishing of VS for semi-finishing of MS for medium cutting of
general steel and alloy steel general steel and alloy steel general steel and alloy steel stainless steel and mild steel
KU for KH for cast iron cutting Flat-top for intermittent PG for light cutting of general steel
machining cast iron and heavy cutting cutting conditions alloy steel, stainless steel, cast iron
PG for light cutting of general steel AL for aluminum alloy cutting
alloy steel, stainless steel, cast iron
2015 Good Price Tungsten Carbide Scrap Why Datan!
- Our tool performance can up to Japan and South Korea level, some even to Europe level;
- With the same performance, our price is much lower than high-end brand;
- 50 Years experience that can provide you with highly efficient machining program;
- Offering professional guidence in cutting tool choosing;
- One-stop sourcing of cutting tool;
- Chinese most authoritative cnc cutting tool web for tool choosing, the web is highly regarded by industry association.
Datan's mission is to keep customer first in our mind under any circumstance, create and quickly provide excellent value to customers; Providing customers with unique products and services in the board field of material cutting. Welcome your any advice and question for 2015 Good Price Tungsten Carbide Scrap!
320 Workers, 26000 square meters nondust workshop, 50 years of experience, 20 years in market, ISO &CE certificated, superior supplier of YAMAHA, 3M, BOSCH, EMKA, VESUVIUS and VOLKSWAGEN, this is how we keep superior quality and competitive offers for global valued customers. And Pls enquiring now for free samples of tungsten carbide scrap!
