50 Years Hot Carbide Insert Cutting Tool

cutting tool

50 Years Hot Carbide Insert Cutting Tool

                         Contacting Now for Free Samples

It is particular important for the selection of cnc machine tools. Due to the various brands and models of machine tools in the market, are you troubled by choosing the right ones. Selecting suitable tools can improve machining precision, reduce the defective goods, cost of tools and extend the service life of cutters.

And Here comes the MACFSSC principle in choosing inserts:

• Material of workpiece to be machined:Generally divided into steel,alloy steel,stainless steel,ductile iron,gray iron,aluminum,copper and other nonferrous metals;
• Accuracy required:Generally divided into finishing,semi-finishing,slightly rough and rough;
• Conditions of working:Generally divided into stable cutting,general machining and instability cutting;
• Features of blade machining and chip:Breaking groove;
• Shape of the blade:Generally divided into 80° diamond,55° diamond,90° square,60° equilateral triangle,35° diamond,80° hexagonal;
• Size of the blade:Generally divided into blade length,thickness and R angle;
• Coating of the blade.

Tool selection is very complex, so, free consulting immediately to Datan professional tool engineer......

Mail: slash(at)

Skype: slashchen007

Tell: +86 159 6241 0804

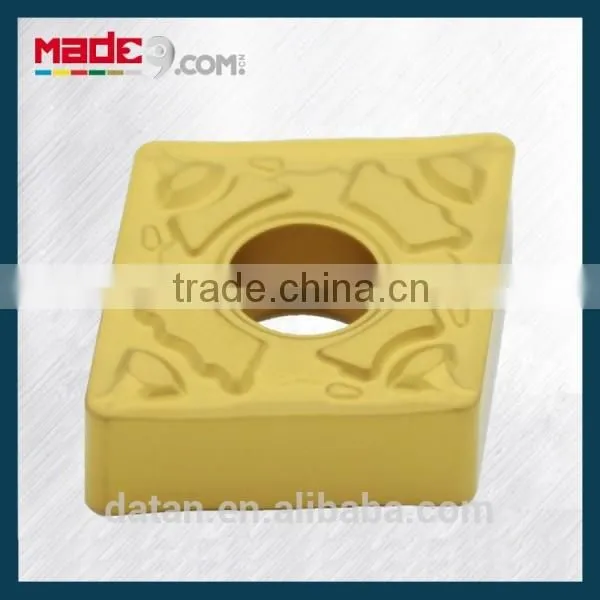

Geometry Features:

• FQ for finishing of general steel and alloy steel.
• Double-sided chip breaker.
• Variable range angle provides enough edge strength at different depth of cut.
• Curved edge,sharp cutting edge, good chip control and fine surface finish due to curved edge.

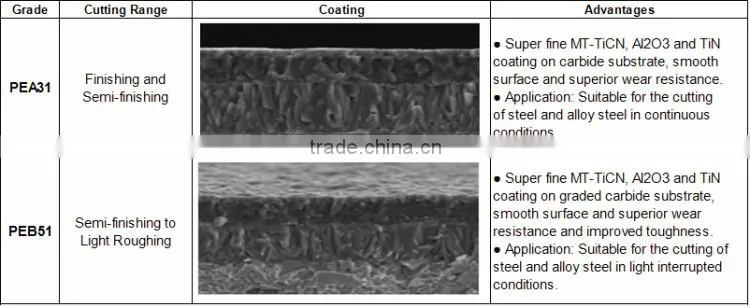

Grade of Application

Hot Carbide Insert Cutting Tool Grade Application



Ordering Code	Dimensions(mm)
	L	D	S	d1	R
CNMG09004-FQ	9.7	9.525	3.18	3.81	0.4
CNMG09008-FQ	9.7	9.525	3.18	3.81	0.8
CNMG120404-FQ	12.9	12.7	4.76	5.16	0.4
CNMG120408-FQ	12.9	12.7	4.76	5.16	0.8

Selection Method

Two Simple Steps of Cutting Tool Selection

                                                     Step 1, According to shaps of Insert——

Pls click the blue underline words for checking

                      80° Rhombic                                   55° Rhombic                                        90° Square

                  60° Triangle                                 35° Rhombic                            80° Trigon



                                 Step 2, According to Grades Insert——

 Pls click the blue underline words for checking

   FQ for finishing of                                MQ for semi-finishing of                    VS for semi-finishing of                 MS for medium cutting of

   general steel and alloy steel               general steel and alloy steel             general steel and alloy steel         stainless steel and mild steel





        KU for                                                    KH for cast iron cutting                     Flat-top for intermittent       PG for light cutting of general steel

       machining cast iron                             and heavy cutting                                cutting conditions                   alloy steel, stainless steel, cast iron





 PG for light cutting of general steel     AL for aluminum alloy cutting

 alloy steel, stainless steel, cast iron

Six Big Advantage

Made 9 Brand Carbide Insert Cutting Tool Company Strengths

• Our tool performance can up to Japan and South Korea level, some even to Europe level;
• With the same performance, our price is much lower than high-end brand;
• 50 Years experience that can provide you with highly efficient machining program;
• Offering professional guidence in cutting tool choosing;
• One-stop sourcing of cutting tool;
• Chinese most authoritative cnc cutting tool web for tool choosing, the web is highly regarded by industry association.

Company Information

Datan's mission is to keep customer first in our mind under any circumstance, create and quickly provide excellent value to customers; Providing customers with unique products and services in the board field of material cutting.



Welcome your any advice and question for 50 Years Hot Carbide Insert Cutting Tool ! And Pls enquiring now for free samples!
