turning tool

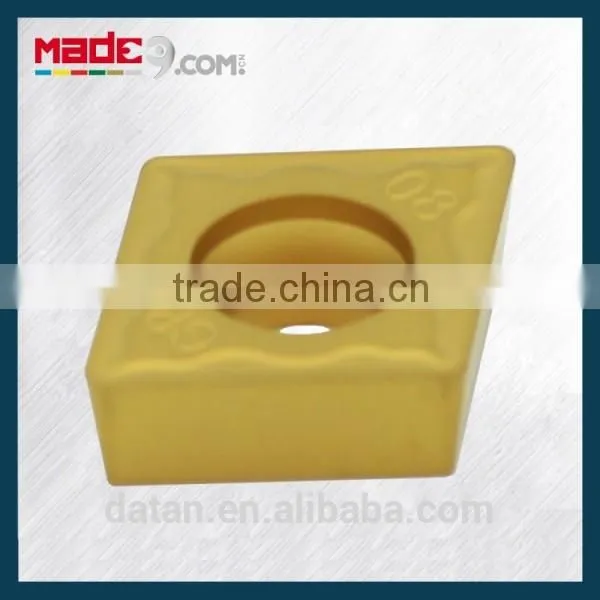

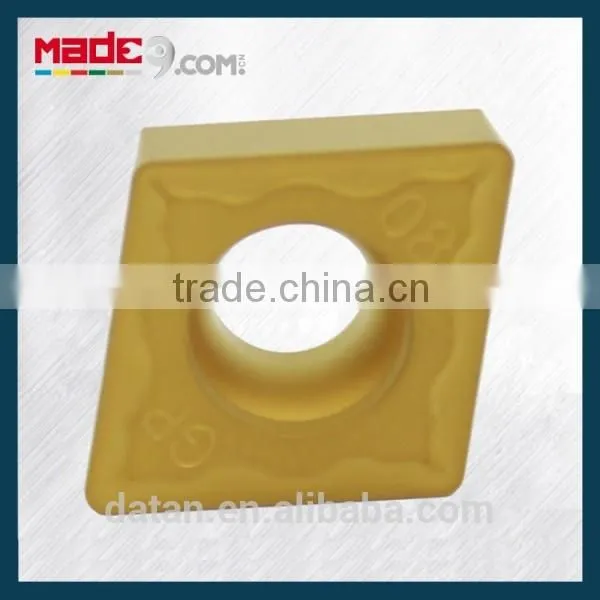

Better Performance carbide lathe turning tool
MACFSSC Principle for Inserts Selection
It is particular important for the selection of cnc machine tools. Due to the various brands and models of machine tools in the market, are you troubled by choosing the right ones. Selecting suitable tools can improve machining precision, reduce the defective goods, cost of tools and extend the service life of cutters.
And Here comes the MACFSSC Principle in choosing inserts:
- Material of workpiece to be machined:Generally divided into steel,alloy steel,stainless steel,ductile iron,gray iron,aluminum,copper and other nonferrous metals;
- Accuracy required:Generally divided into finishing,semi-finishing,slightly rough and rough;
- Conditions of working:Generally divided into stable cutting,general machining and instability cutting;
- Features of blade machining and chip:Breaking groove;
- Shape of the blade:Generally divided into 80° diamond,55° diamond,90° square,60° equilateral triangle,35° diamond,80° hexagonal;
- Size of the blade:Generally divided into blade length,thickness and R angle;
- Coating of the blade.
Tool selection is very complex, so free consulting immediately to Datan professional tool engineer......
Mail: slash(at)
Skype: slashchen007
Tell: +86 159 6241 0804
Geometry Details of Better Performance carbide lathe turning tool
Geometry Features:

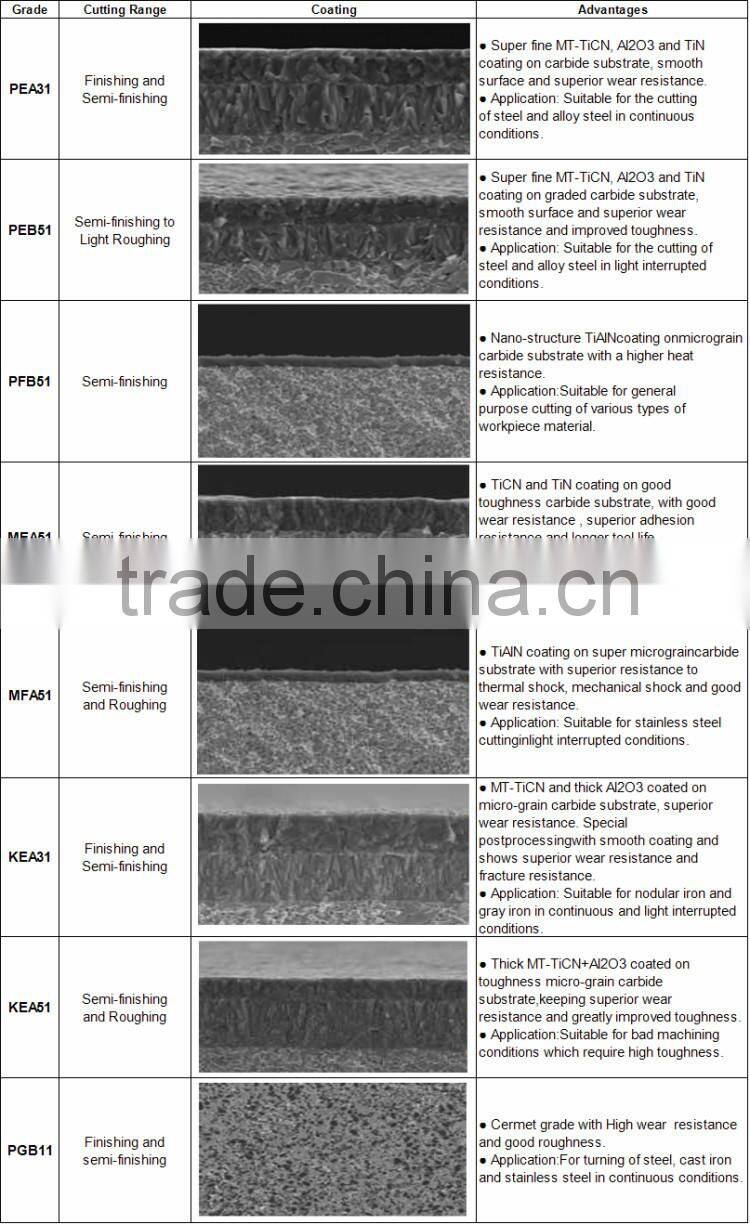

Better Performance carbide lathe turning tool Grade Details

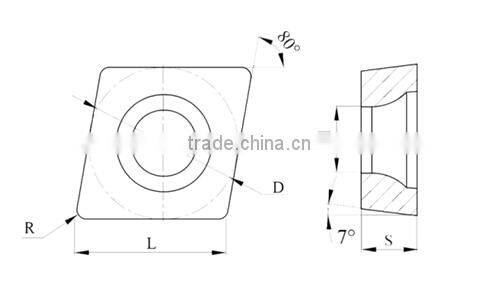

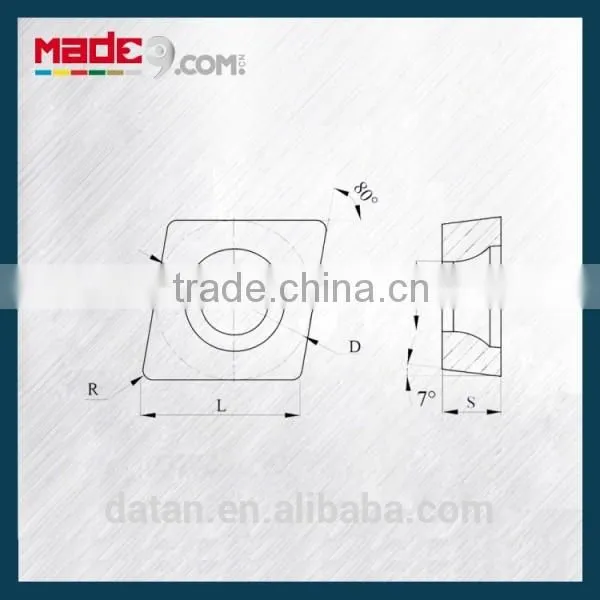

CPMT/CPGT-PG, Rhombic 80°, with Hole
| Ordering Code | Dimensions(mm) | ||||
| L | D | S | d1 | R | |
| CPMT120412-PG | 12.9 | 12.7 | 4.76 | 5.56 | 1.2 |
| CPGT060204-PG | 6.5 | 6.35 | 2.38 | 2.8 | 0.4 |
| CPGT060208-PG | 6.5 | 6.35 | 2.38 | 2.8 | 0.8 |
| CPGT09T302-PG | 9.7 | 9.525 | 3.97 | 4.4 | 0.2 |
| CPGT09T304-PG | 9.7 | 9.525 | 3.97 | 4.4 | 0.4 |
| CPGT09T308-PG | 9.7 | 9.525 | 3.97 | 4.4 | 0.8 |
| CPGT120404-PG | 12.9 | 12.7 | 4.76 | 5.56 | 0.4 |
| CPGT120408-PG | 12.9 | 12.7 | 4.76 | 5.56 | 0.8 |
Two Simple Steps of Cutting Tool Selection
Step 1, According to shaps of Insert——
Pls click the blue underline words for checking
80° Rhombic 55° Rhombic 90° Square
60° Triangle 35° Rhombic 80° Trigon
Step 2, According to Grades Insert——
Pls click the blue underline words for checking
FQ for finishing of MQ for semi-finishing of VS for semi-finishing of MS for medium cutting of
general steel and alloy steel general steel and alloy steel general steel and alloy steel stainless steel and mild steel
KU for KH for cast iron cutting Flat-top for intermittent PG for light cutting of general steel
machining cast iron and heavy cutting cutting conditions alloy steel, stainless steel, cast iron
PG for light cutting of general steel AL for aluminum alloy cutting
alloy steel, stainless steel, cast iron
Better Performance carbide lathe turning tool Why Datan!
- Our tool performance can up to Japan and South Korea level, some even to Europe level;
- With the same performance, our price is much lower than high-end brand;
- 50 Years experience that can provide you with highly efficient machining program;
- Offering professional guidence in cutting tool choosing;
- One-stop sourcing of cutting tool;
- Chinese most authoritative cnc cutting tool web for tool choosing, the web is highly regarded by industry association.
Welcome your any advice and question for Better Performance carbide lathe turning tool! And Pls enquiring now for free samples!
