scrap tungsten carbide price
2015 Turning Inserts Scrap Tungsten Carbide Price
Sending Enquires Now for Free Sample!!!
Professional Rules of Turning Inserts Selection
Due to the various brands and models of machine tools in the market, are you troubled by choosing the right tools. To improve the machining precision, reduce the defective goods, extend the service life of cutters and reduce the cost of tools.
Here comes the MACFSSC principle of seven points that should be concerned in choosing inserts:
Tool selection is very complex, so free consulting immediately to Datan professional tool engineer......
Mail: slash(at)
Skype: slashchen007
Tell: +86 159 6241 0804

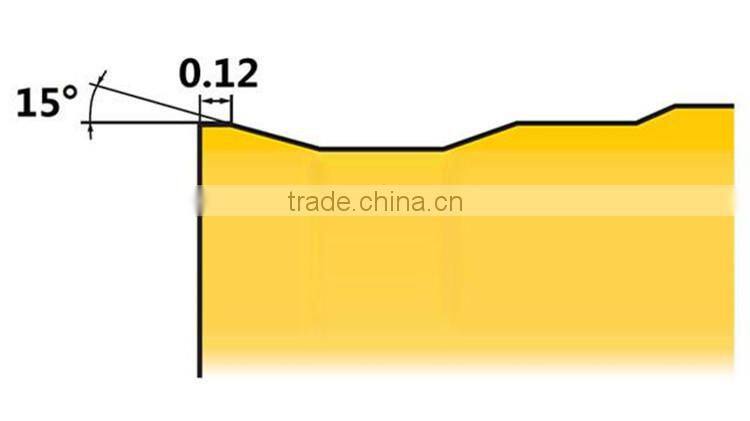

Geometry Details for Turning Inserts Scrap Tungsten Carbide Price
Geometry Features:
1. FQ for finishing of general steel and alloy steel.
2. Double-sided chip breaker.
3. Variable range angle provides enough edge strength at different depth of cut.
4. Curved edge,sharp cutting edge, good chip control and fine surface finish due to curved edge.
Turning Inserts Scrap Tungsten Carbide Price Grade Information
| Grade | Cutting Range | Coating | Advantage |
|
PEA31
|
Finishing and |
|
1. Super fine MT-TiCN, Al2O3 and TiN |
|
PEB51 |
Semi-finishing to |
|
1. Super fine MT-TiCN, Al2O3 and TiN |

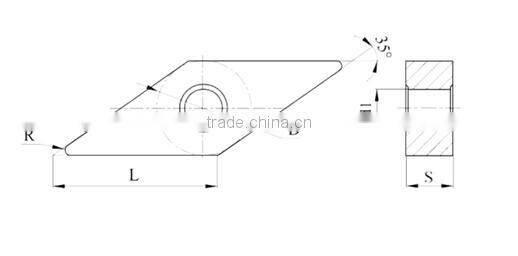

VNMG-FQ, Rhombic 35°, with Hole
| Ordering Code | Dimensions(mm) | ||||
| L | D | S | d1 | R | |
| VNMG160404-FQ | 16.6 | 9.525 | 4.76 | 3.81 | 0.4 |
| VNMG160408-FQ | 16.6 | 9.525 | 4.76 | 3.81 | 0.8 |
| VNMG220404-FQ | 22.1 | 12.7 | 4.76 | 5.16 | 0.4 |
| VNMG220408-FQ | 22.1 | 12.7 | 4.76 | 5.16 | 0.8 |
Two Simple Steps of Inserts Selection
Step 1, According to shaps of Insert——
Pls click the blue underline words for checking
80° Rhombic 55° Rhombic 90° Square
60° Triangle 35° Rhombic 80° Trigon
Step 2, According to Grades Insert——
Pls click the blue underline words for checking
FQ for finishing of MQ for semi-finishing of MS for medium cutting of KU for
general steel and alloy steel general steel and alloy steel stainless steel and mild steel machining cast iron
KH for cast iron cutting PG for light cutting of general steel PG for light cutting of general steel AL for aluminum alloy cutting
and heavy cutting alloy steel, stainless steel, cast iron alloy steel, stainless steel, cast iron
High Cost Effective, Better Price, WHY US!
- Our tool performance can up to Japan and South Korea level, some even to Europe level;
- With the same performance, our price is much lower than high-end brand;
- 50 Years experience that can provide you with highly efficient machining program;
- Offering professional guidence in cutting tool choosing;
- One-stop sourcing of cutting tool;
- Chinese most authoritative cnc cutting tool web for tool choosing, the web is highly regarded by industry association.
2015 Turning Inserts Scrap Tungsten Carbide Price
320 Workers, 26000 square meters nondust workshop, 50 years of experience, 20 years in market, ISO &CE certificated, superior supplier of YAMAHA, 3M, BOSCH, EMKA, VESUVIUS and VOLKSWAGEN, this is how we keep superior quality and competitive offers for global valued customers.
Datan's mission is to keep customer first in our mind under any circumstance, create and quickly provide excellent value to customers; Providing customers with unique products and services in the board field of material cutting. Welcome your any advice and question for 2015 Turning Inserts Scrap Tungsten Carbide Price!
Pls Contacting Us For Free Samples of scrap tungsten carbide price!
