metal lathe cutting tools
Better Performance CNC Metal Lathe Cutting Tools
Contact Now for Free Sample
Professional Rules of Inserts Selection
Due to the various brands and models of machine tools in the market, are you troubled by choosing the right tools. To improve the machining precision, reduce the defective goods, extend the service life of cutters and reduce the cost of tools.
Here comes the MACFSSC principle of seven points that should be concerned in choosing inserts:
Tool selection is very complex, so free consulting immediately to Datan professional tool engineer......
Mail: slash(at)
Skype: slashchen007
Tell: +86 159 6241 0804
Geometry Details of metal lathe cutting tools
Geometry Features:
1. KU for machining cast iron.
2. Double-sided chip breaker.
3. Medium cutting edge for unfavorable cutting conditions.
CNC Metal Lathe Cutting Tools Grade Details
| Grade | Cutting Range | Coating | Advantage |
KEA31 |
Finishing and |
|
1. MT-TiCN and thick Al2O3 coated on micro-grain carbide substrate, superior wear resistance. Special postprocessing with smooth coating and shows superior wear resistance and fracture resistance. 2. Application: Suitable for nodular iron and gray iron in continuous and light interrupted conditions. |
KEA51 |
Semi-finishing |
|
1. Thick MT-TiCN+Al2O3 coated on toughness micro-grain carbide substrate,keeping superior wear resistance and greatly improved toughness. conditions which require high toughness.
|

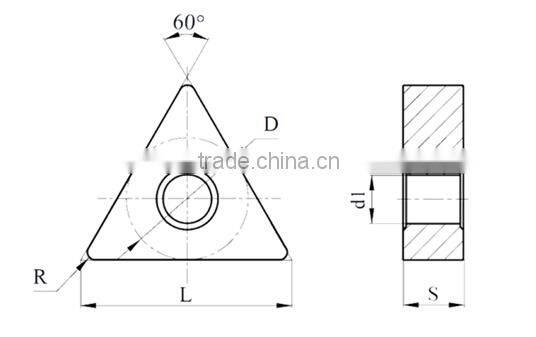

TNMG-KU, Triangle 60°, with Hole
| Ordering Code | Dimensions(mm) | ||||
| L | D | S | d1 | R | |
| TNMG160404-KU | 16.5 | 9.525 | 4.76 | 3.81 | 0.4 |
| TNMG160408-KU | 16.5 | 9.525 | 4.76 | 3.81 | 0.8 |
| TNMG160412-KU | 16.5 | 9.525 | 4.76 | 3.81 | 1.2 |
| TNMG160416-KU | 16.5 | 9.525 | 4.76 | 3.81 | 1.6 |
| TNMG-220408-KU | 22 | 12.7 | 4.76 | 5.16 | 0.8 |
| TNMG-220412-KU | 22 | 12.7 | 4.76 | 5.16 | 1.2 |
| TNMG-220416-KU | 22 | 12.7 | 4.76 | 5.16 | 1.6 |
Two Simple Steps of Turning Inserts Selection
Step 1, According to shaps of Insert——
Pls click the blue underline words for checking
80° Rhombic 55° Rhombic 90° Square
60° Triangle 35° Rhombic 80° Trigon
Step 2, According to Grades Insert——
Pls click the blue underline words for checking
FQ for finishing of MQ for semi-finishing of VS for semi-finishing of MS for medium cutting of
general steel and alloy steel general steel and alloy steel general steel and alloy steel stainless steel and mild steel
KU for KH for cast iron cutting Flat-top for intermittent PG for light cutting of general steel
machining cast iron and heavy cutting cutting conditions alloy steel, stainless steel, cast iron
PG for light cutting of general steel AL for aluminum alloy cutting
alloy steel, stainless steel, cast iron
High Cost Effective, Better Price, WHY US!
- Our tool performance can up to Japan and South Korea level, some even to Europe level;
- With the same performance, our price is much lower than high-end brand;
- 50 Years experience that can provide you with highly efficient machining program;
- Offering professional guidence in cutting tool choosing;
- One-stop sourcing of cutting tool;
- Chinese most authoritative cnc cutting tool web for tool choosing, the web is highly regarded by industry association.
320 Workers, 26000 square meters nondust workshop, 50 years of experience, 20 years in market, ISO &CE certificated, superior supplier of YAMAHA, 3M, BOSCH, EMKA, VESUVIUS and VOLKSWAGEN, this is how we keep superior quality and competitive offers for global valued customers.
Datan's mission is to keep customer first in our mind under any circumstance, create and quickly provide excellent value to customers; Providing customers with unique products and services in the board field of material cutting. Welcome your any advice and question for Better Performance CNC Metal Lathe Cutting Tools!
