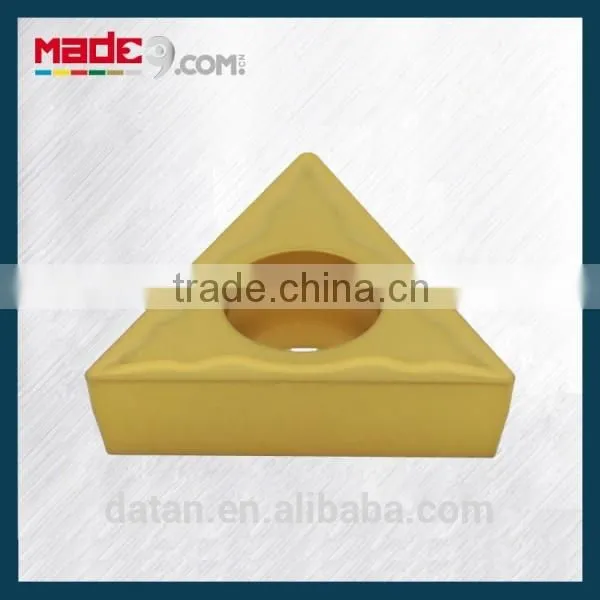

Free Samples CNC Tungsten Carbide Inserts Turning Tool
Contact Now for Free Sample
Professional Rules of Turning Inserts
Due to the various brands and models of machine tools in the market, are you troubled by choosing the right tools. To improve the machining precision, reduce the defective goods, extend the service life of cutters and reduce the cost of tools.
Here comes the MACFSSC principle of seven points that should be concerned in choosing inserts:
Tool selection is very complex, so free consulting immediately to Datan professional tool engineer......
Mail: slash(at)
Skype: slashchen007
Tell: +86 159 6241 0804
Geometry Details of CNC Tungsten Carbide Inserts Turning Tool
Geometry Features:
1. PG for light cutting of general steel, alloy steel, stainless steel and cast iron.
2. Strong tool nose due to flat cutting edge and sharp cutting edge due to double rake angle.
3. Steady chip control when the depth of cut is less than 1mm due to Peninsula-shaped chip breaker.

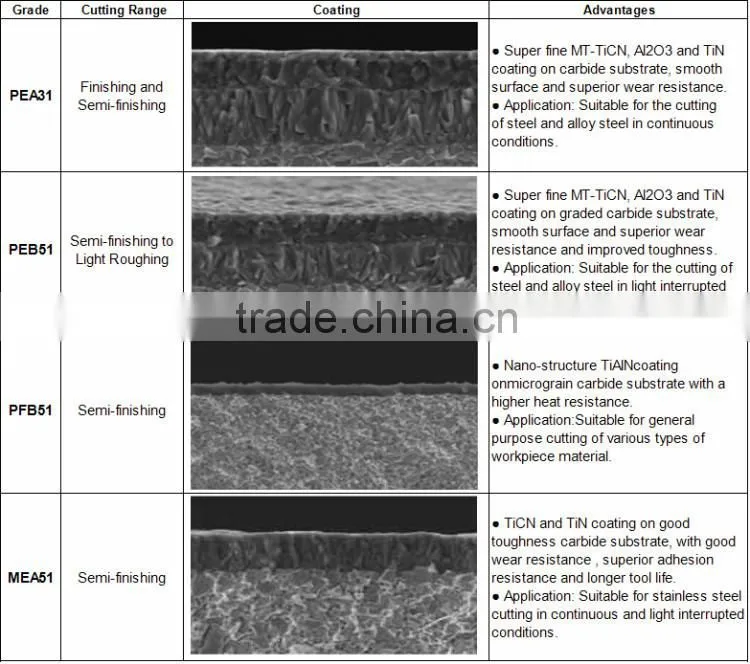

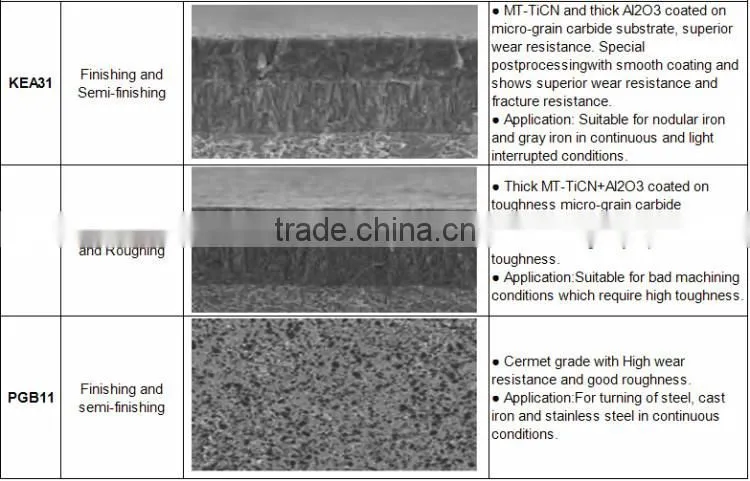

CNC Tungsten Carbide Inserts Turning Tool Grade Details

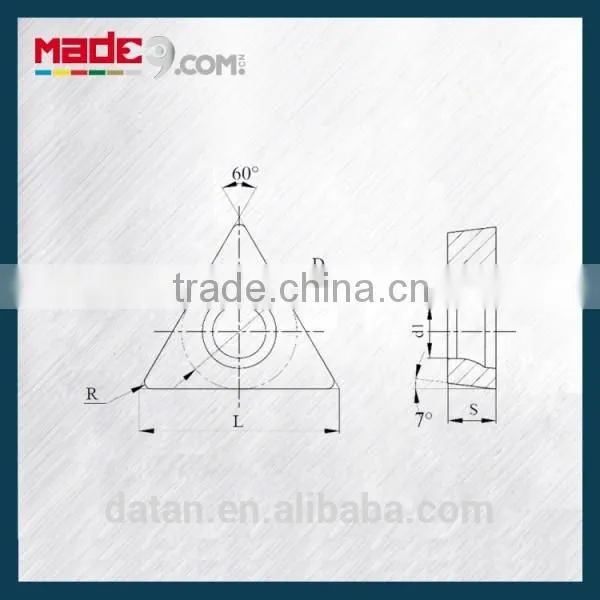

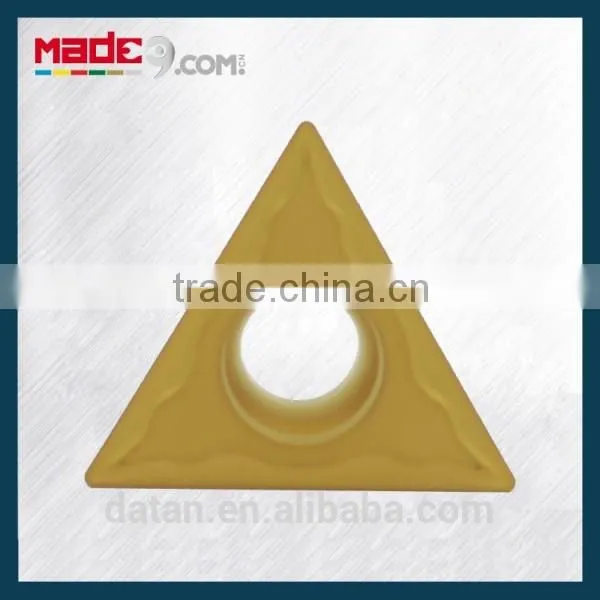

TCMT/TCGT-PG, Triangle 60°, with Hole
| Ordering Code | Dimensions(mm) | ||||
| L | D | S | d1 | R | |
| TCMT090204-PG | 9.6 | 5.56 | 2.38 | 2.5 | 0.4 |
| TCMT110202-PG | 11 | 6.35 | 2.38 | 2.8 | 0.2 |
| TCMT110204-PG | 11 | 6.35 | 2.38 | 2.8 | 0.4 |
| TCMT110208-PG | 11 | 6.35 | 2.38 | 2.8 | 0.8 |
| TCMT16T304-PG | 16.5 | 9.525 | 3.97 | 4.4 | 0.4 |
| TCMT16T308-PG | 16.5 | 9.525 | 3.97 | 4.4 | 0.8 |
| TCMT16T312-PG | 16.5 | 9.525 | 3.97 | 4.4 | 1.2 |
| TCMT220408-PG | 22 | 12.7 | 4.76 | 5.56 | 0.8 |
| TCGT090204-PG | 9.6 | 5.56 | 2.38 | 2.5 | 0.4 |
| TCGT110202-PG | 11 | 6.35 | 2.38 | 2.8 | 0.2 |
| TCGT110204-PG | 11 | 6.35 | 2.38 | 2.8 | 0.4 |
| TCGT110208-PG | 11 | 6.35 | 2.38 | 2.8 | 0.8 |
| TCGT16T304-PG | 16.5 | 9.525 | 3.97 | 4.4 | 0.4 |
| TCGT16T308-PG | 16.5 | 9.525 | 3.97 | 4.4 | 0.8 |
Two Simple Ways of Inserts Selection
Step 1, According to shaps of Insert——
Pls click the blue underline words for checking
80° Rhombic 55° Rhombic 90° Square
60° Triangle 35° Rhombic 80° Trigon
Step 2, According to Grades Insert——
Pls click the blue underline words for checking
FQ for finishing of MQ for semi-finishing of VS for semi-finishing of MS for medium cutting of
general steel and alloy steel general steel and alloy steel general steel and alloy steel stainless steel and mild steel
KU for KH for cast iron cutting Flat-top for intermittent PG for light cutting of general steel
machining cast iron and heavy cutting cutting conditions alloy steel, stainless steel, cast iron
PG for light cutting of general steel AL for aluminum alloy cutting
alloy steel, stainless steel, cast iron
High Cost Effective, Better Price, WHY US!
- Our tool performance can up to Japan and South Korea level, some even to Europe level;
- With the same performance, our price is much lower than high-end brand;
- 50 Years experience that can provide you with highly efficient machining program;
- Offering professional guidence in cutting tool choosing;
- One-stop sourcing of cutting tool;
- Chinese most authoritative cnc cutting tool web for tool choosing, the web is highly regarded by industry association.
320 Workers, 26000 square meters nondust workshop, 50 years of experience, 20 years in market, ISO &CE certificated, superior supplier of YAMAHA, 3M, BOSCH, EMKA, VESUVIUS and VOLKSWAGEN, this is how we keep superior quality and competitive offers for global valued customers.
Datan's mission is to keep customer first in our mind under any circumstance, create and quickly provide excellent value to customers; Providing customers with unique products and services in the board field of material cutting. Welcome your any advice and question for Free Samples CNC Tungsten Carbide Inserts Turning Tool!
Pls Send Your Enquires for Free Samples of carbide inserts turning tool!
