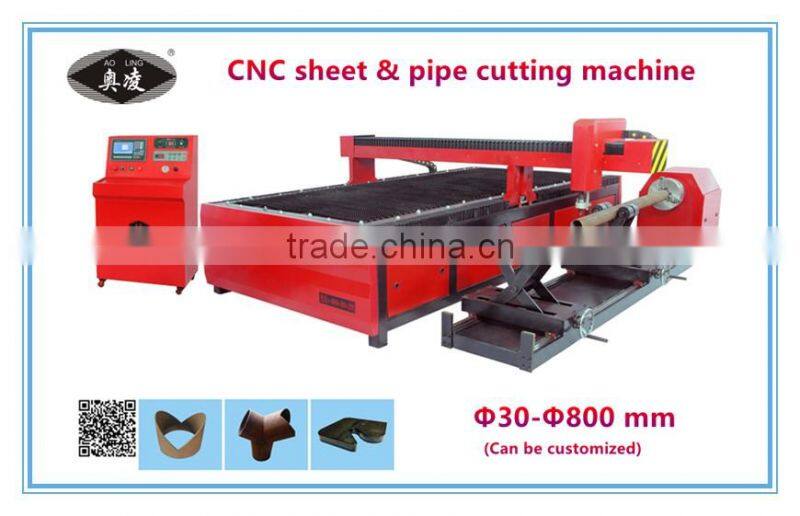

Made in China cheap price sheet metal & pipe plasma cutting machine for carbon stainless steel
Technical parameters
CNC Tube/Sheet dual-use Cutting Machine | |
Model no. |
AL-BG1530 |
Sheet cutting dimension |
3000X1500 |
Tube cutting diameter |
Φ30~Φ800 mm(customized) |
Tube moving speed |
2000mm/min |
Cutting speed |
60-2000mm/min |
Plasma cutting thickness |
0-25mm(plasma power customized) |
Air pressure(plasma) |
0.8 Mpa |
Cutting torch max lifting stroke |
0-400 mm(Customized) |
Tube max weight |
≤3000 kg(Customized) |
Tube transmission mode |
Chucking structure |
Trestle quantity |
4 |
Control axis quantity |
3 |
Cutting accuracy |
±0.5mm |
Cutting mode |
plasma |

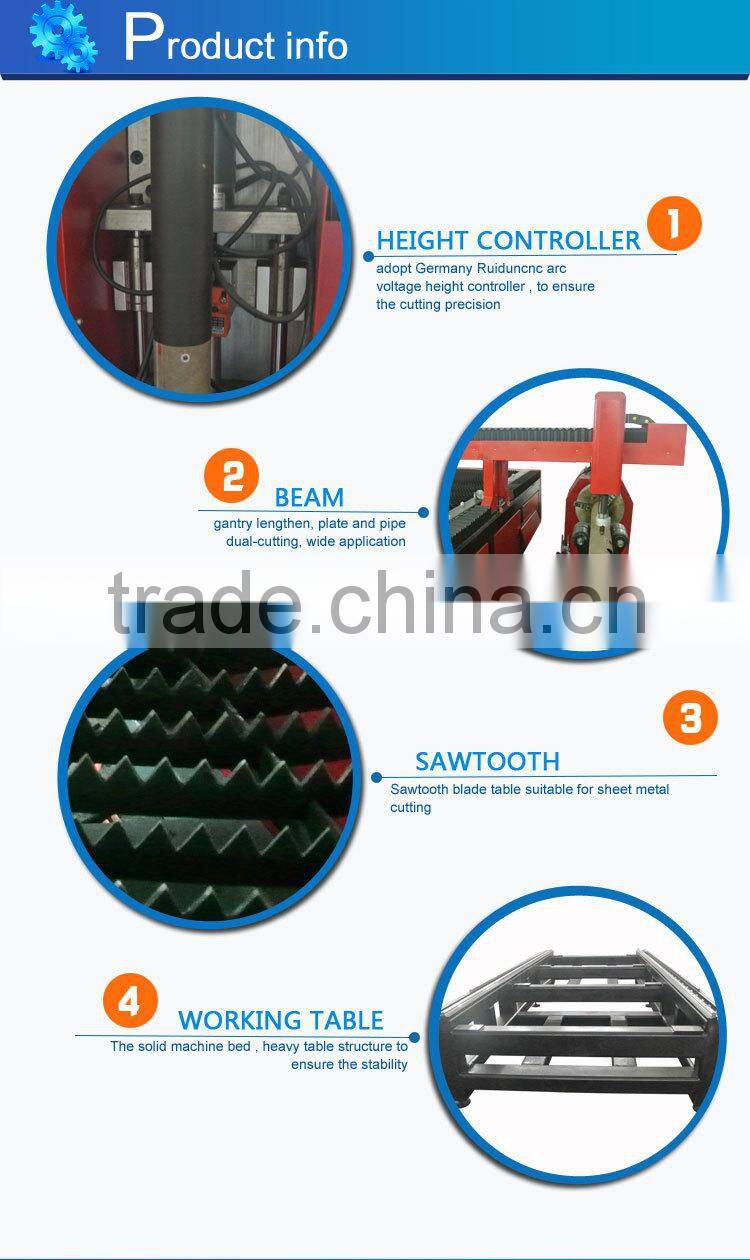

Height control mode |
arc pressure |
Power( plasma excluded) |
≤0.5KW |
Plasma input power |
3 PHASE AC380V |
Cutting pattern |
any planar graph |
CNC Programming |
AUTOCAD |
File transfer |
U-disk |
Cutting machine customization for Any special dimension and diameter of tube cutting | |
Technical Index
Cutting index |
1 |
Plasma cutting thickness |
Depend on plasma power |
|
2 |
Plasma perforation thickness |
Depend on plasma power |
Machine performance |
3 |
Max running speed |
10000mm/min |
|
4 |
Set the velocity error |
≤±3% |
|
5 |
Linear positioning accuracy |
±0.2mm/m |
|
6 |
Linear repeat accuracy |
±0.4mm/m |
|
7 |
Automatic lifting precision |
±0.5 mm |
Rail installation accuracy |
8 |
Main rail straightness |
±0.2mm/10m |
|
9 |
Level between two Rails |
±0.5mm/10m |
|
10 |
Parallelism between two Rails |
<±0.5mm/ |
Comprehensive precision of machine |
11 |
Error of side length (Four side) |
0.5mm |
|
12 |
Diagonal bias |
0.5mm |
13 |
Back to origin of the deviation |
0.2mm |
|
14 |
Diagonal straightness accuracy |
0.3mm |
|
15 |
Intersection deviation |
0.5mm |
|
16 |
Clockwise or counterclockwise line deviation |
0.2mm |
|
|
17 |
perpendicularity tolerance and angularity tolerance (u) |
u(mm)=1.5+0.045a |
|
18 |
The surface roughness of tolerance (Rz) |
Rz(um)=50+0.5a |
Cutting Sample
