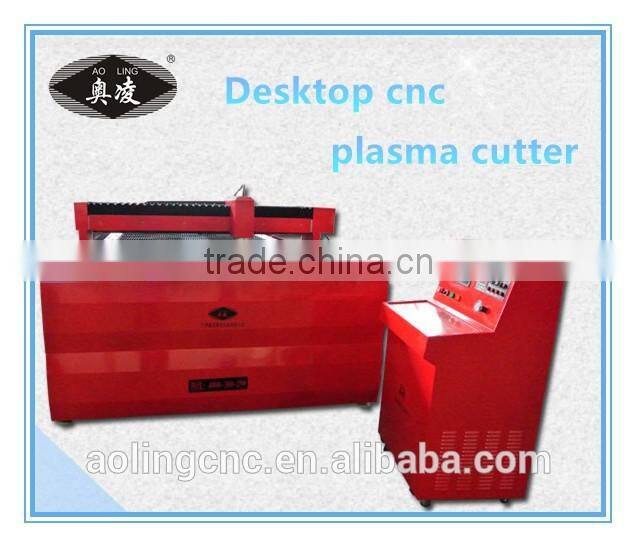

Desktop cnc plasma/flame cutting machine price with high regularting device/table cnc cutter
cnc plasma cutters for sale product overview
- 1.The device is a kind of desktop CNC plasma cutting machine featuring high speed, precision cutting and small size.
- 2.The desktop CNC plasma cutting machine is specially designed for the rapid plasma cutting of carbon steel plates, aluminum plates, copper plates, stainless steel plates and other metal plates in any graphic. Under normal circumstances, the cutting plane does not need secondary processing, and the cutting effect is good, without dross and burrs.
- 3.The desktop plasma cutting machine can replace punch for processing and is characterized with high degree of automation, high reliability, high accuracy, low price, easy operation and maintenance, etc. The product is particularly suitable for medium and thin non-ferrous metal plates.
- 4.Desktop CNC plasma cutting machine is extensively used in machinery manufacturing, auto parts, hardware, sports equipment, advertising and other industries, with a high cost performance.
cnc plasma cutters for sale Application Materials
Galvanized sheets, white sheets, titanium olate, carbon steel, stainless steel, alloy steel, composte metal.
cnc plasma cutters for sale Application Industries
This machine can be used in ship building,construction equipment, transport equipment, aerospace industry, bridge building, military industry, wind power, structural steel, boiler containes making, agriculture machinery, chassis electrical cabinets, elevator manufacturing, textile machinery and environmental protection equipment etc. Desktop cnc plasma/flame cutting machine price with high regularting device/table cnc cutter
cnc plasma cutters for sale feature
- 1.Horizontal and vertical guide rails are equipped with mechanical and electrical safety devices, and high reliability; Horizontal and vertical transmission adopts Germany NEUGART high precision linear Guide and High torque, low backlash, maintenance-free planetary gear reducer.
- 2.Driven by servo drive or Berger Lahr stepper drive system with position detection function and high precision motion.; Air system consist of gas distribution system and air control panel, and equipped with automatic ignition device, tempering prevention device, security and stability;
- 3.Bilateral drive efficiency, dynamic performance, gantry box beams, carrying capacity, suitable for a wide span of work;
- 4.Horizontal rails using linear guides, high precision, good guide; vertical lever clamping device, high positioning accuracy
- 5.Can meet the large thickness steel plate cutting, steel cutting thickness up to 100mm.
- 6.Equipped with high-power plasma cutting, satisfies the different metallic material cutting
- 7.According to user needs, increase other special features. Desktop cnc plasma/flame cutting machine price with high regularting device/table cnc cutter
cnc plasma cutters for sale technical parameter
1 |
Cutting shape |
any shapes |
2 |
LCD Display Dimension |
7.0 Inches |
3 |
Effective Cutting Width (X axis) |
1250mm |
4 |
Effective Cutting Length (Y axis) |
2500mm |
5 |
Cross Beam Length |
1500mm |
6 |
Longitudinal Rail Length |
3000mm |
7 |
Cutting Speed |
0-8000mm per minute |
8 |
Plasma Cutting Thickness |
2--20mm ( Depends on plasma power source capacity) |
9 |
lifting body |
1set |
10 |
Drive Mode |
bilateral drive |
11 |
Cutting Mode |
plasma |
12 |
Ignition device |
Auto ignition device |
13 |
Height regulating device |
Arc voltage height |
14 |
File transmission |
USB transmission |
15 |
Nesting software |
Fastcam standard |
16 |
Plasma Power Source |
Ruiduncnc 45/85/105/125A |
17 |
Plasma Air |
Only pressed Air |
18 |
>Plasma Air Pressure |
Max. 0.8Mpa |
19 |
Cutting precision |
0.5mm National standard JB/T10045.3-99 |
20 |
Control accuracy |
0.01mm |
21 |
Power Supply Voltage/Frequency |
380V 50HZ |
22 |
Rated Power Supply |
1000W |
23 |
Working Temperature |
>-10C-60C. Relative Humidity, 0-95%. |
Video link : /watch?v=cQbrffJmfiM
24 Hours working for you
Guangzhou Aoling CNC Cutting Machine
Thank you for so much attention, your enquiry is appreciated!
Your information required:
1.The size of your plate
2.The thickness of your plate
3.The material of your plate
Our terms:
1.price terms: FOB Guangzhou Or CIF your port
2.Payment terms: 30% TT deposit,the balance 70% before shippment
3.Delivery time:10-20days after getting the deposit. Desktop cnc plasma/flame cutting machine price with high regularting device/table cnc cutter
