Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > Oil Cooling Cross Belt Magnetic Separator and Mining Equipments

Oil Cooling Cross Belt Magnetic Separator and Mining Equipments

Name: Oil Cooling Cross Belt Magnetic Separator and Mining Equipments
Brand: huaxin
SKU: 133920263
Availability: InStock

Oil Cooling Cross Belt Magnetic Separator and Mining Equipments thumbnail-1

Oil Cooling Cross Belt Magnetic Separator and Mining Equipments photo-1

US$ 5,000 - 80,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Magnetic Separator

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Shandong Huaxin Electromechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao or any port in china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Magnetic Separator

Place of Origin Shandong, China

Brand Name huaxin

Model Number Series RCDE,RCDF

Specifications

suspension oil cooling belt electro magnetic separator
self cleaning and manual
suspension the conveyor belt
Model customized

Suspension oil cooling electro magnetic separator

Introduction:

suspension oil cooling belt type electro magnetic separator suspend on the conveyor or over the head pulley and used in a widely variety of application for the removal of occasional tramp iron.
According to the way of discharge the tramp iron can divide into the manual discharge RCDE series suspension oil cooling electro magnetic separator and self cleaning suspension oil cooling electro magnetic separator.
suspension oil cooling electro magnetic separator can protect the subsequent processing machinery and provide cleaner product.
Control panel can be supplied with suspension oil cooling electro magnetic separator.

Why choose this type:

while the electric current pass through the insulated wire coil to generate magnetic field,heat will generated inevitably,excessive heat will affect the work efficiency of the electromagnetic separator,what the worse is even burned the insulated wire coil,so how to discharge the excessive heat is an important part of costs constitute to the electro magnetic separator.How to discharge the excessive heat?The international general three ways is natural cooling,wind cooling and oil cooling.But the best way to discharge the excessive heat is oil cooling.

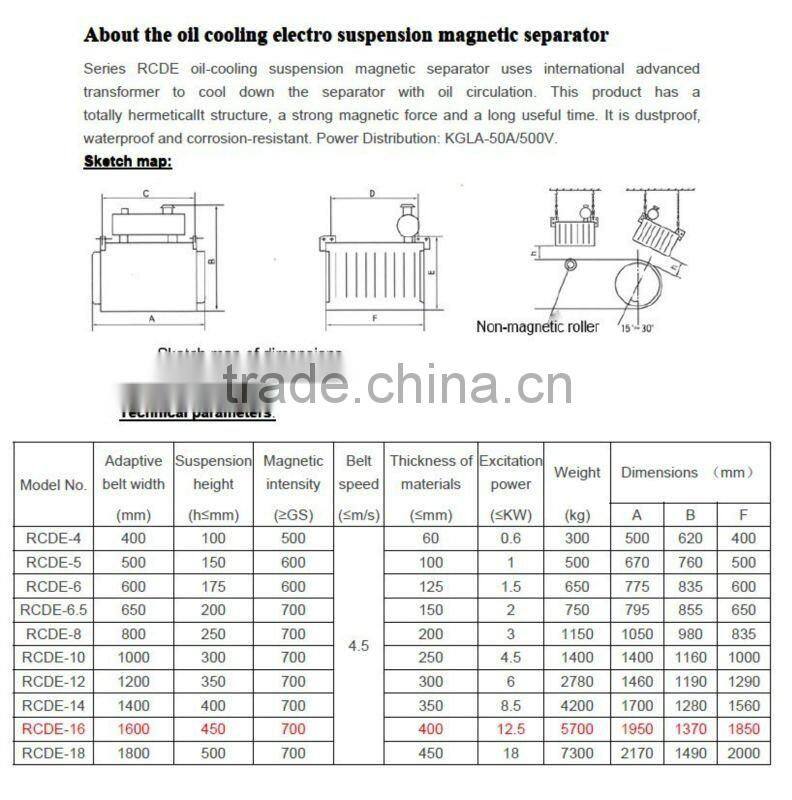

Description of RCDE magnetic separator:

Description of RCDF magnetic separator:

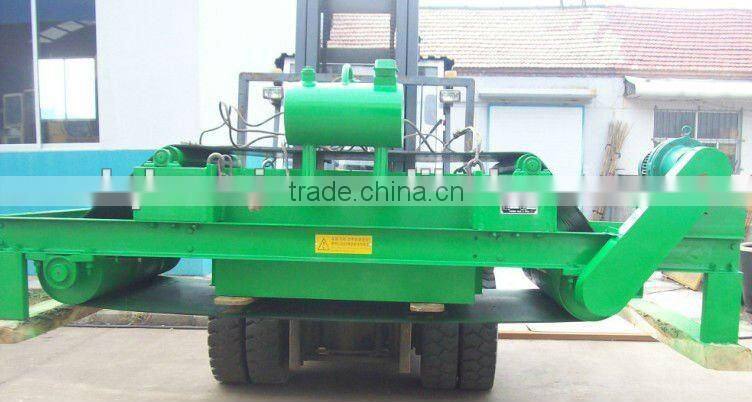

Series RCDF oil cooling belt self cleaning electro magnetic separator is added with a driving motor, two drums, an iron-cleaning belt on the basis of series RCDE.

This machine is usually suspended over the conveyor belt to collect ferrous elements from non-magnetic materials and clean the ferrous elements automatically.It is dustproof, waterproof, fast radiating, auto cleaning and corrosion-resistant.

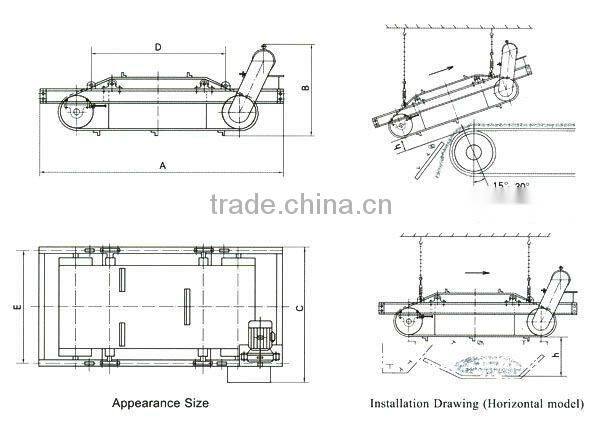

Sketch map:

Technical specifications:

Model No.	Belt width (mm)	Suspension height (≤mm)	Magnetic intensity (≥mT)	Thickness of materials (≤mm)	Excitation power (kw)	Motor power (kw)	Belt speed (≤m/s)	Weight (kg)	Dimensions (mm)
Model No.	Belt width (mm)	Suspension height (≤mm)	Magnetic intensity (≥mT)	Thickness of materials (≤mm)	Excitation power (kw)	Motor power (kw)	Belt speed (≤m/s)	Weight (kg)	A	B	C	D	E
RCDF-5	500	150	60	100	1	1.5	4.5	1080	2060	965	720	770	455
RCDF-6	600	175	60	120	1.6	1.5		1350	2160	1170	810	1070	575
RCDF-6.5	650	200	70	150	2	2.2		1530	2380	1370	820	888	650
RCDF-8	800	250	100	200	4	2.2		2100	2340	1420	860	923	800
RCDF-10	1000	300	150	250	6	3.0		3380	2810	1700	880	1180	1450
RCDF-12	1200	350	200	300	8	4.0		4150	3000	1850	850	1650	1500
RCDF-14	1400	400	250	350	12	4.0		5500	3280	2070	1020	1600	1410
RCDF-16	1600	450	300	400	15	5.5		6900	3600	2270	1050	1800	1500
RCDF-18	1800	500	350	450	20	7.5		8800	4380	2500	1160	2220	1500
RCDF-20	2000	550	400	500	26	7.5		10500	4500	2900	1300	2475	1550
RCDF-22	2200	600	450	550	32	11		12900	5100	3100	1350	2600	1600
