Specifications
1. Small size, light in weight, easy to install and layout.2. High screening capacity and low energy consumption.

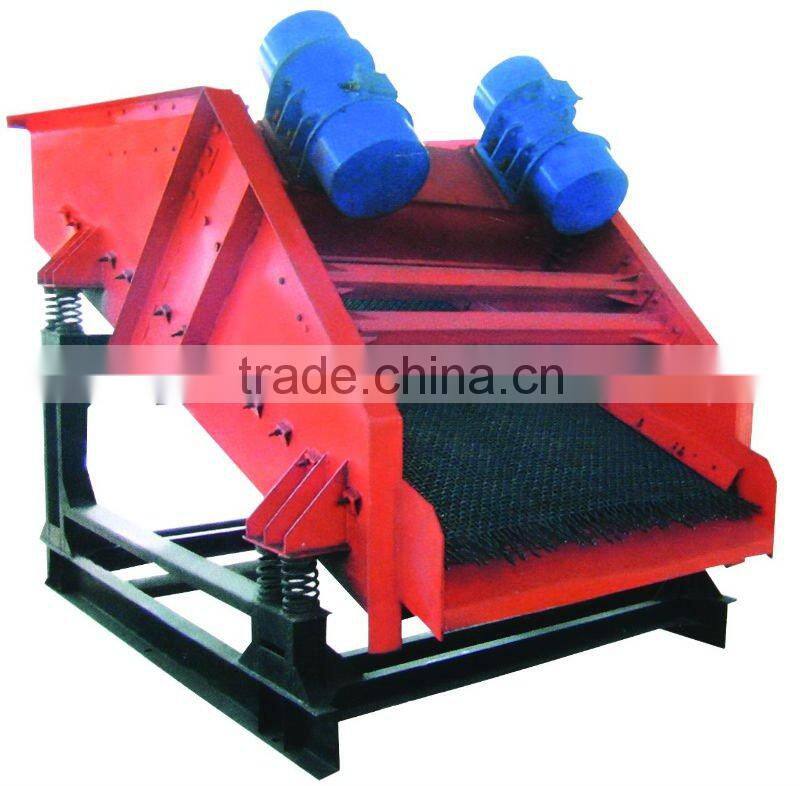

DZSF high efficient motor vibrating screen
Series DZSF heavy-duty motor vibrating screen is made up of the excitation device, screen boxes, drop-hopper, vibration damping device and the base. The excitation device uses energy-saving vibration motor as the vibration source, and the vibration damping device is supported by the spring.
Specification:
1.Simple structure, good appearance and less spare parts.
2. The screening mesh is made up of wearable bar strips, durable and easy to replace.
3. Materials are blanking layer by layer and can not be blocked easily.
4. Good flexibility and operational reliability.
Model No. |
Feeding size |
Capacity |
Motor |
Vibrating frequency |
Double amplitude (mm) |
Effective screening surface |
Weight |
|
Model No. |
Power |
|||||||
DZSF-09x18 |
≤ 250 |
10~100 |
YZO-17-4 |
0.75x2 |
25 |
5~7 |
1.62 |
1248 |
DZSF-10x20 |
≤ 250 |
10~180 |
YZO-20-6 |
1.5x2 |
16 |
6~8 |
2.0 |
1476 |
DZSF-12x24 |
≤ 350 |
10~200 |
YZO-30-6 |
2.2x2 |
16 |
6~8 |
2.88 |
2300 |
DZSF-10x30 |
≤ 350 |
10~250 |
YZO-30-6 |
2.2x2 |
16 |
6~8 |
3.0 |
2295 |
DZSF-15x30 |
≤ 350 |
10~350 |
YZO-50-6 |
3.7x2 |
16 |
6~8 |
4.5 |
3300 |
DZSF-15x36 |
≤ 350 |
10~400 |
YZO-50-6 |
3.7x2 |
16 |
6~8 |
5.4 |
4460 |
DZSF-15x40 |
≤ 350 |
10~450 |
YZO-75-6 |
5.5x2 |
16 |
6~8 |
6.0 |
5028 |
DZSF-15x50 |
≤ 350 |
10~500 |
YZO-75-6 |
5.5x2 |
16 |
6~10 |
7.5 |
6800 |
DZSF-20x50 |
≤ 350 |
10~500 |
YZO-75-6 |
5.5x2 |
16 |
6~10 |
10 |
8450 |
DZSF-20x60 |
≤ 350 |
10~600 |
YZO-100-6 |
7.5x2 |
16 |
8~12 |
12 |
11100 |
DZSF-20x70 |
≤ 350 |
10~600 |
YZO-100-6 |
7.5x2 |
16 |
8~12 |
14 |
13800 |
DZSF-20x80 |
≤ 350 |
10~600 |
YZO-100-6 |
7.5x2 |
16 |
8~12 |
16 |
17500 |
