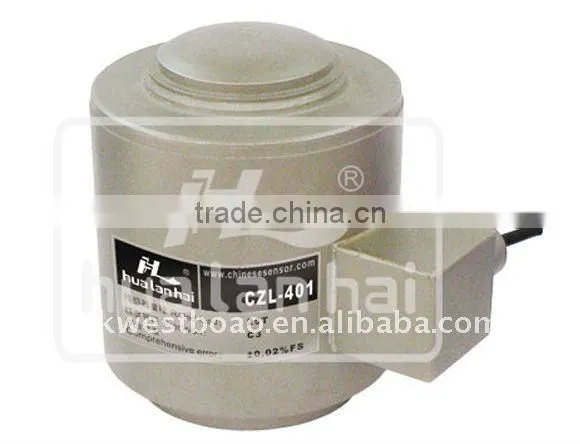

Help CenterColumn-style Load Cell
Related Products
Specifications
material:alloy steel & stainless steelsurface nickel plated ,correct dislocation automatically
hermatically sealed by laser
Load cell , column-style load cell,weighing load cell
Suitable for electronic truck scales,hopper scales and other electronic weighing devices.
Capacity(t): 10,25,40,60,100
Common load cell Specifications:
Accuracy grade:C3
Comprehensive error (%F.S) : ±0.02
Sensitivity (mv/v) : 2.0±0.003
Creep (%F.S/30min) : ±0.024
Zero output (%F.S) : ±1.0
Input Resistance (Ω): 350±5
Output Resistance (Ω): 350±3
Insulation resistance (MΩ) : ≥5000(100VDC)
Temperature Effect on Zero (%F.S/10): ±0.023
Temperature Effect on Span (%F.S/10): ±0.017
Temperature compensation range (°C ) : -10~+40
Operating temperature (°C ) : -20~+55
Excitation voltage (V) : 9~12(DC)
Safe overload (%F.S) : 150
Limit overload (%F.S) : 200
Protection Grade: IP67/IP68
Digital load cell Specifications:
Accuracy grade:C3
Comprehensive error (%F.S) : ±0.02
Rated output(counts) : 1,000,000
Creep (%F.S/30min) : ±0.02
Temperature Effect on Span (%F.S/10): ±0.011
Temperature Effect on Zero (%F.S/10): ±0.019
Temperature compensation range (°C ) : -10~+40
Operating temperature (°C ) : -20~+55
Excitation voltage (V) : 5.5~12(DC)
A/D Module resolution(yard):1,000,000
Communication BPS:(BPS) : 9600
Communication port(cable) : RS 485/4
Digital refurbishing frequency(s) : 10~80
Maximum of verification scale intervals(n max) : 5000
munication range(m) : 1200
Num. of the address bus(max) : 32
Safe overload (%F.S) : 150
Protection Grade: IP67/IP68

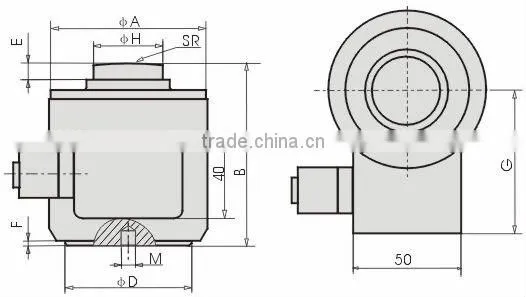

Installation size diagram:
(capacity)t |
A |
B |
C |
D |
E |
F |
G |
H |
M |
SR |
10, 25 |
73 |
82.5 |
12 |
58 |
6.5 |
1.8 |
64 |
31.8 |
M12X1.75 |
152 |
40, 60 |
105 |
127 |
34 |
82.5 |
8.0 |
11 |
87 |
57.7 |
M20X2.5 |
152 |
100 |
152.4 |
184.2 |
72.3 |
123.8 |
23.6 |
21.8 |
108.2 |
79.2 |
M20X2.5 |
432 |
Wire connecting method:
red input +
white output -
black input -
green output +

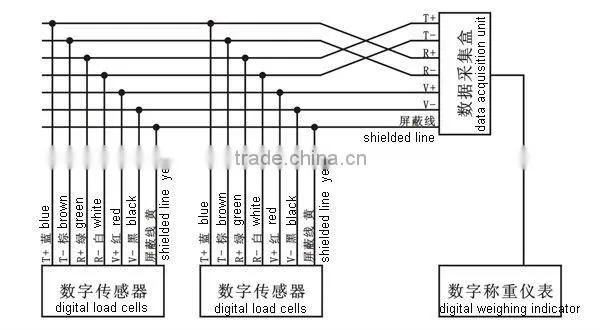

Power diagram:
