Help CenterColumn-style Load Cell
Related Products
Specifications
material:alloy steel & stainless steelsurface nickel plated ,correct dislocation automatically
hermatically sealed by laser
Load cell , column-style load cell,weighing load cell
Suitable for electronic truck scales,hopper scales and other electronic weighing devices.
Capacity(t): 10,20,25,30,40,50
Common load cell Specifications:
Accuracy grade:C3
Comprehensive error (%F.S) : ±0.02
Sensitivity (mv/v) : 1.5±0.003
Creep (%F.S/30min) : ±0.016
Zero output (%F.S) : ±1.0
Input Resistance (Ω): 700±5
Output Resistance (Ω): 700±3
Insulation resistance (MΩ) : ≥5000(100VDC)
Temperature Effect on Zero (%F.S/10): ±0.019
Temperature Effect on Span (%F.S/10): ±0.011
Temperature compensation range (°C ) : -10~+40
Operating temperature (°C ) : -20~+55
Excitation voltage (V) : 9~12(DC)
Safe overload (%F.S) : 150
Limit overload (%F.S) : 200
Protection Grade: IP67/IP68

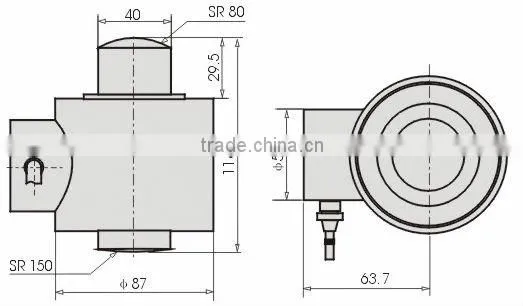

Installation size diagram:
Wire connecting method:
red input +
white output -
black input -
green output +
Power diagram:
