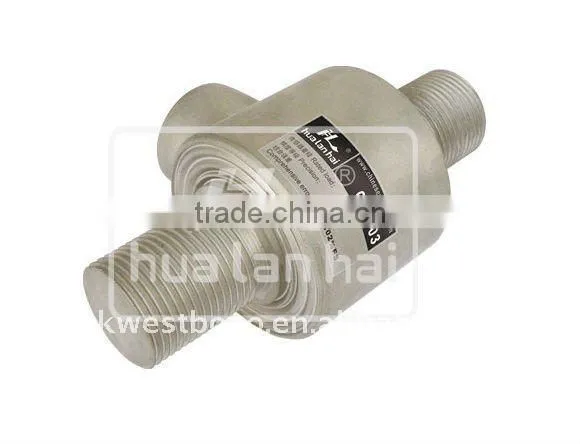

Help CenterColumn-style Load Cell
Related Products
Specifications
material:alloy steel & stainless steelsurface nickel plated ,correct dislocation automatically
hermatically sealed by laser
Load cell , column-style load cell,weighing load cell
Suitable for electronic truck scales,hopper scales and other electronic weighing devices.
Capacity(t): 10,20,25,30,40,50,100
Common load cell Specifications:
Accuracy grade:C2/C3
Comprehensive error (%F.S) : ±0.03 / ±0.02
Sensitivity (mv/v) : 1.5±0.003
Creep (%F.S/30min) : ±0.023 / ±0.016
Zero output (%F.S) : ±1.0
Input Resistance (Ω): 700±10
Output Resistance (Ω): 700±5
Insulation resistance (MΩ) : ≥5000(100VDC)
Temperature Effect on Zero (%F.S/10): ±0.029 / ±0.019
Temperature Effect on Span (%F.S/10): ±0.017 / ±0.011
Temperature compensation range (°C ) : -10~+40
Operating temperature (°C ) : -20~+55
Excitation voltage (V) : 9~12(DC)
Safe overload (%F.S) : 150
Limit overload (%F.S) : 200
Protection Grade: IP67/IP68
Installation size diagram:
Capacity(t) |
H1 |
H2 |
φA |
L |
M |
SR |
10--20 |
180 |
64.9 |
73 |
99.7 |
M36X3 |
200 |
25--30 |
200 |
70 |
88.9 |
115.6 |
M42X3 |
250 |
40--60 |
250 |
96.9 |
105 |
138.3 |
M56X4 |
300 |
100 |
350 |
126.1 |
152.4 |
183.9 |
M76X4 |
400 |
Wire connecting method:
red input +
white output -
black input -
green output +
Power diagram:
