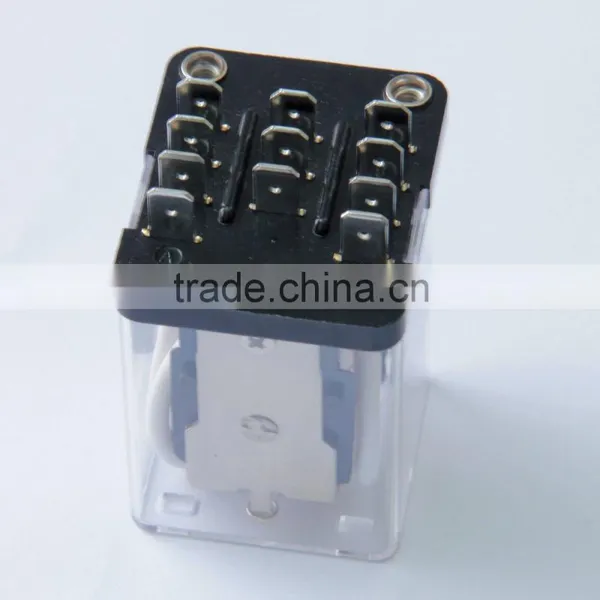

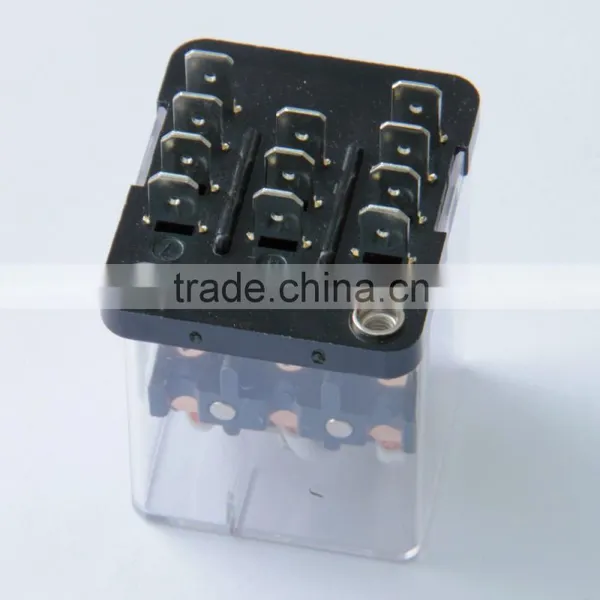

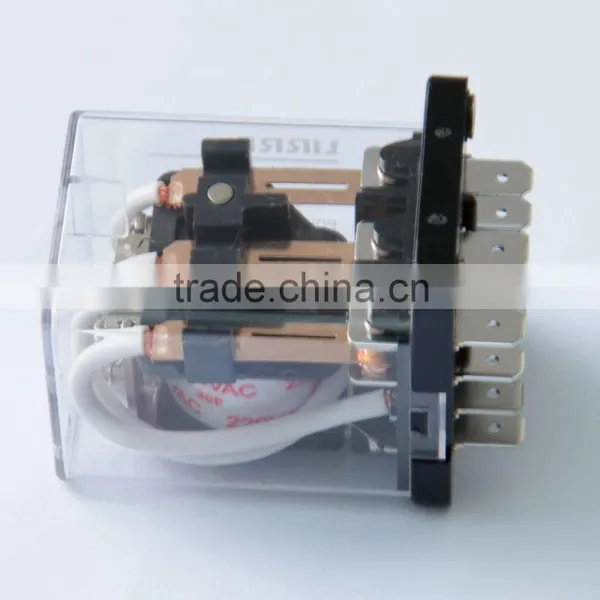

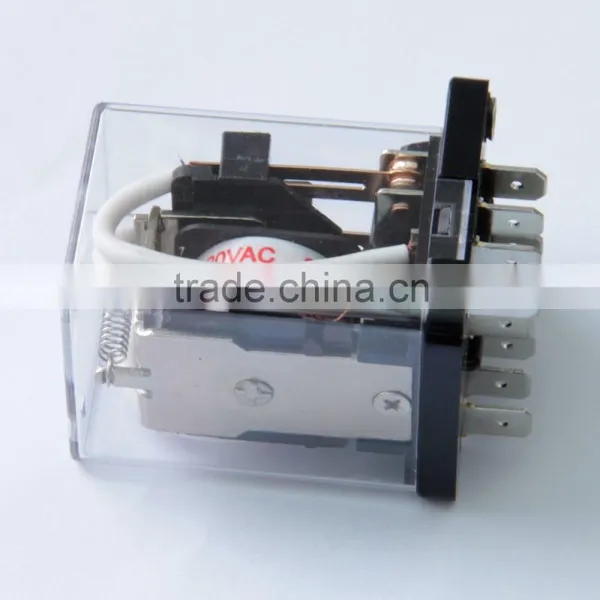

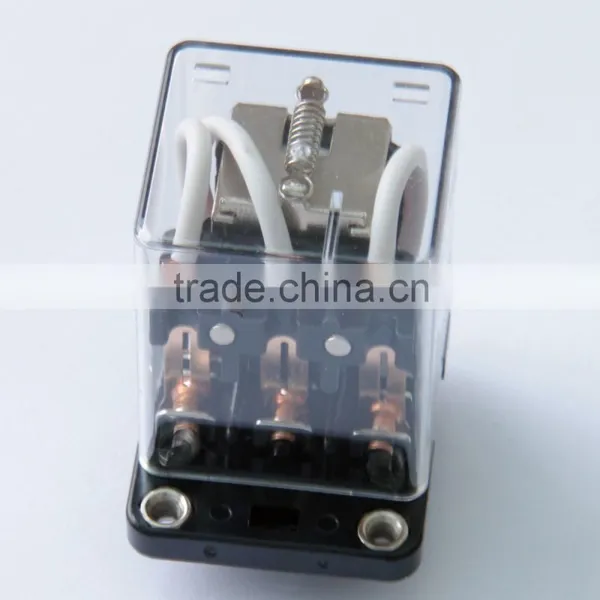

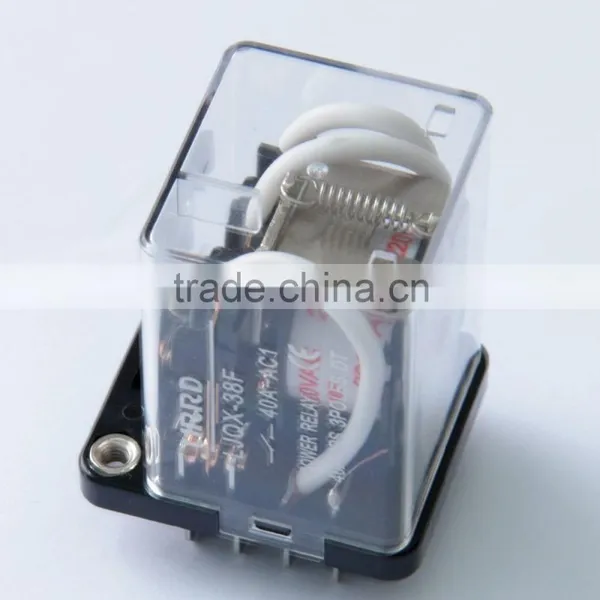

220VAC 11pins Power relay JQX-38F/protection relay/40A relay/relay
Model |
LJQX-38F/3Z |
|
Dimension |
55.4*41.5*49.1mm |
|
Coil voltage |
12VDC/24VDC/220VAC for normal |
|
|
Contact |
Form |
3Z 3H 3D |
Material |
Silver alloy |
|
Resistance Performance |
30A/40A/28VDC/250VAC |
|
Coil power at 23℃ |
DC(W) |
<1.5W |
AC(VA) |
<2.5VA |
|
Coil voltage |
DC(V) |
6~220V |
AC(V) |
6~380V |
|
Pick-up voltage at 23℃ |
DC≤75% AC≤80% |
|
Release voltage at 23℃ |
DC≥10‰ AC≥30‰ |
|
Max voltage at 23℃ |
110% |
|
Contact resistance (at 6VDC 1A) |
≤100mΩ |
|
|
Dielectric Strength |
Between Open Contacts |
≥1200VAC 50Hz/1min Leakage current 1mA |
Between Contacts |
≥1500VAC 50Hz/1min Leakage current 1mA |
|
Between coil & Contacts |
≥1500VAC 50Hz/1min Leakage current 1mA |
|
Insulation Resistance at 500VDC |
≥1000MΩ |
|
Life |
Electrical |
105 Times (Frequency: ON 1time/1s OFF 1time/1s) |
Mechanical |
10 6Times (Frequency: 300times/1min) |
|
Ambient Temperature |
-25℃ ~ +55℃ |
|
Terminal type |
Insert type / Welding type |
|
Suitable sockets |
38F11A |
|
Unit weight |
≈130G |
|
1. Packing: 10pcs/middle foam box, and 100pcs/carton, 15kg/ctn 0.044CBM/ctn
2. Shipping: Express for small quantity, By sea or any other ways you need for big orders.
1. Free samples are available for quality checking.
2. For other models, checking following:
1. Main products: Electromagnetic power relay, Solid state relay, Timer relay, Floatless relay, Volt. Meter, Amp. Meter, Hz Meter, Counter, Relay base, etc.
2. Appliant scope: household appliances, automatic control equipments, powering generating facilities and power grids, vehicle appliances, instruments, electronic equipments, communication equipments, machine equipments, office facilities, etc
3. Established: 1992
4. Location: Capital of Elextrical Equipment -- Liushi, Yueqing, Zhejiang
5. Certification: ISO9001:2000, CQC,CCC, CE, ROHS,UL
6. Factory acreage: Moren than 11000 square meters.
7. Principle: Based on Credit, Win by quality
Please have a glance of our company outlook, workingshop and machines as following:
Anything you concern, please be free to contact us. We will be more than happy to offer any help we can.
