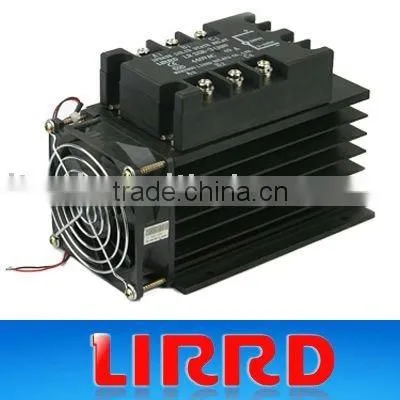

Triple Phase Solid State Relay SSR-3DA/3AA Heat Sink With Fan

Triple Phase Solid State Relay SSR-3DA/3AA Heat Sink With Fan thumbnail-1
Triple Phase Solid State Relay SSR-3DA/3AA Heat Sink With Fan photo-1
US$ 0.1 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LIRRD
Model Number:
SSR-3DA/3AA
Contact Supplier Request Quote Chat Now
Zhejiang Lierd Relays Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name LIRRD
Model Number SSR-3DA/3AA
Theory Other, Solid State Relay, Solid State Relay
Usage Other, General Purpose, Protective
Size Miniature
Protect Feature Other, Epoxy, Sealed
Contact Load High Power

Specifications

1)Triple phase solid state relay SSR-3DA/3AA heat sink with Fan
2) Different type for Selection
3) ISO,CCC, CQC, CE

1) Triple phase solid state relay SSR-3DA/3AA heat sink with Fan

2) Different type for Selection
3) Designing similar products
4)LODA CURRENT 10,15,25,40,50,60,75,90A

SSR-3DA/3AA solid relay,SSR,RELAY,industrial solid state relay

Relay,Relays,Power Relay,General Purpose Relay,Time Relay,Auto Relay,Mini Relay,Miniature Relay,Thermal Relay,Solid State Relay,Electromagnetic Relay,Timer Relay,General Relay,Latching Relay,Electric Relay,Overload Relay,Control Relay,12V Relay,AC Relay,DC relay,Current Relay,Relay Switch,Omron Relay,PCB Relay,Board Relay,Relay Socket

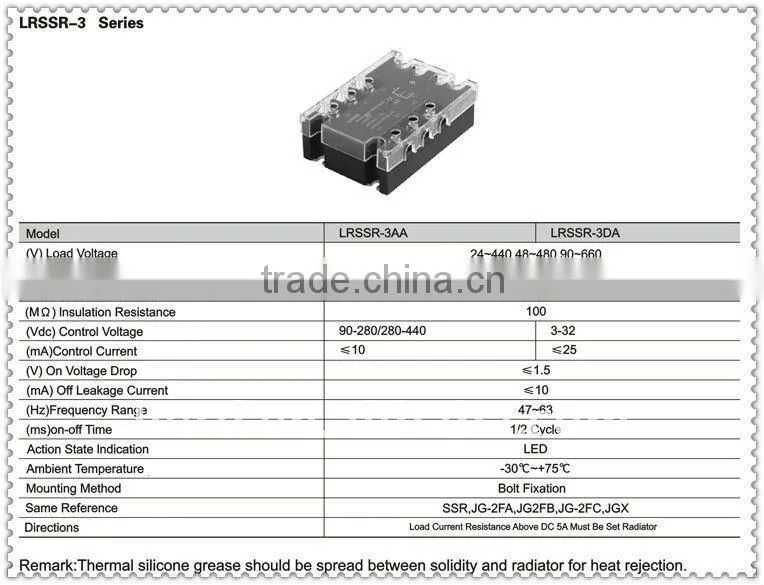

Main Feature:

1. Rated voltage output: 40~240VAC, 60~440VAC

2. Rated current output: 10,15,20,25,30,40,50,60,70,80,100,120A

3. On-state voltage drop: ≤1.8V

4. On-off time: ≤ 10ms

5. Current leakage in Disconnection: ≤10ms

6. Input voltage: 3~14VDC, 3~32VDC, 90~250VAC

7. Input current: 6~35mA

8. Isolating voltage: ≥1500VACA

9. Ambient temperature: - 25~70 °C

10. Working indication: LED11. Remark: Heat sink must be installedWhen the load reaches to10A or above.

Triple phase solid state relay SSR-3DA/3AA heat sink with FanTriple phase solid state relay SSR-3DA/3AA heat sink with FanTriple phase solid state relay SSR-3DA/3AA heat sink with Fan

Please check following for more models:

Triple phase solid state relay SSR-3DA/3AA heat sink with FanTriple phase solid state relay SSR-3DA/3AA heat sink with FanTriple phase solid state relay SSR-3DA/3AA heat sink with FanTriple phase solid state relay SSR-3DA/3AA heat sink with FanTriple phase solid state relay SSR-3DA/3AA heat sink with FanTriple phase solid state relay SSR-3DA/3AA heat sink with Fan

Anything you concern, please be free to contact us. We will be more than happy to offer any help we can.
