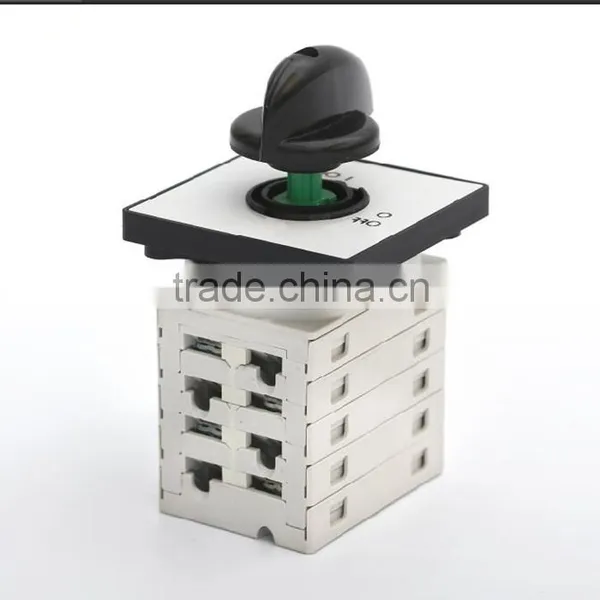

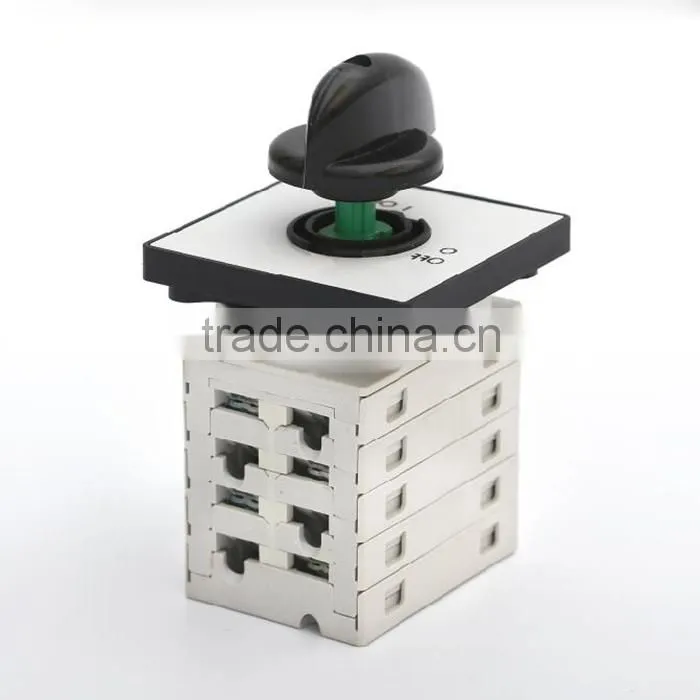

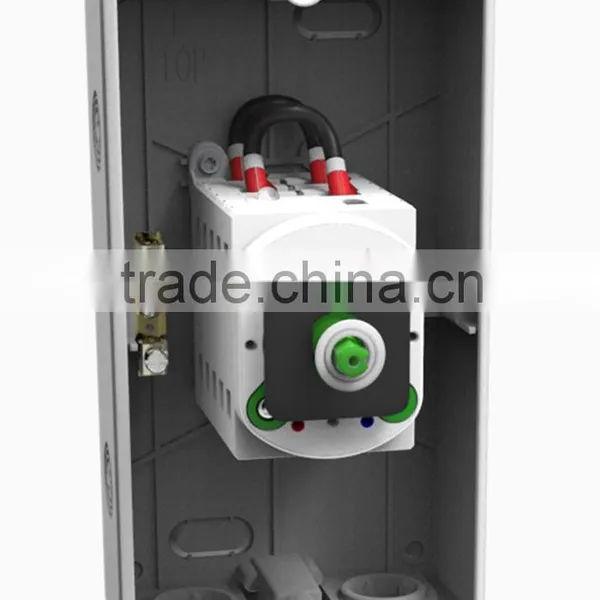

High quality ip66 Lever Actuator DC Isolator-Panel Mounting

1.Features:

A.Compact structure, modular design, level 2-12 with different versions are available,satisfied to the need of different situations.

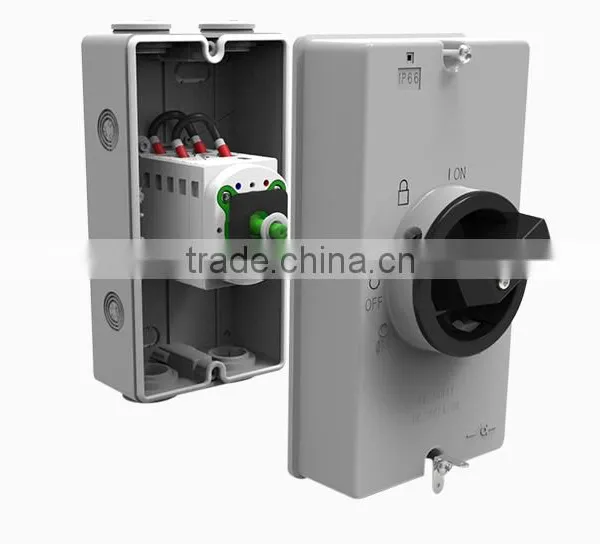

B.Panel mounting installation mode ensures the solid installation. Favorable seal design and imported seals make sure that the installation machines reach IP66 standard.

C.Incorporating a user independent switching action, spring mechanism, to ensure a very fast break/make action which means the disconnection of the load circuits and suppression of the arc is normally extinguished in a maximum of 5ms.

D.Self-cleaning contact mechanism, reducing power loss and abrasion, improving the conduction performance, reducing there sistance of DC on-off and energy loss, extending on-off life.

E.Mounting panel 48mm2, more convenient for multiple terminals installation.

F.The isolators are adopted with flame resistant material insulation gradeUL94V-0 level, so that they can work stable in ambient temperatures of -25℃~+70℃.

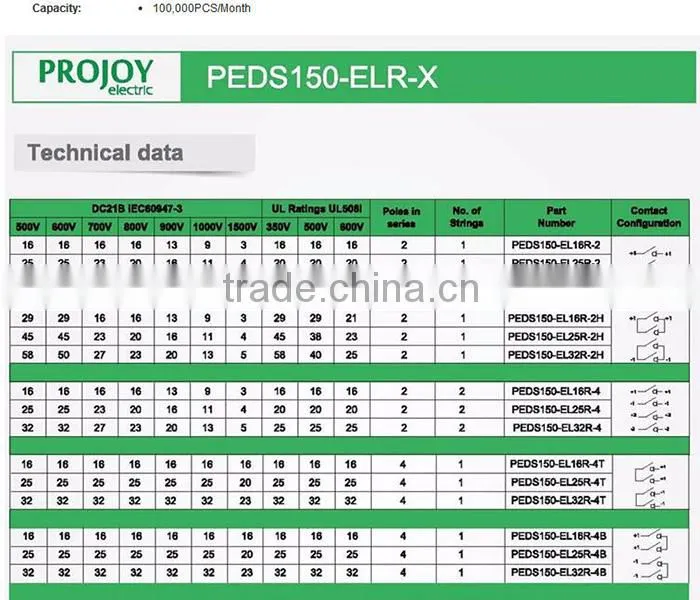

Rated DC voltage is 1500V, with international certifications like IEC60947-3 etc.

2.Appilication:

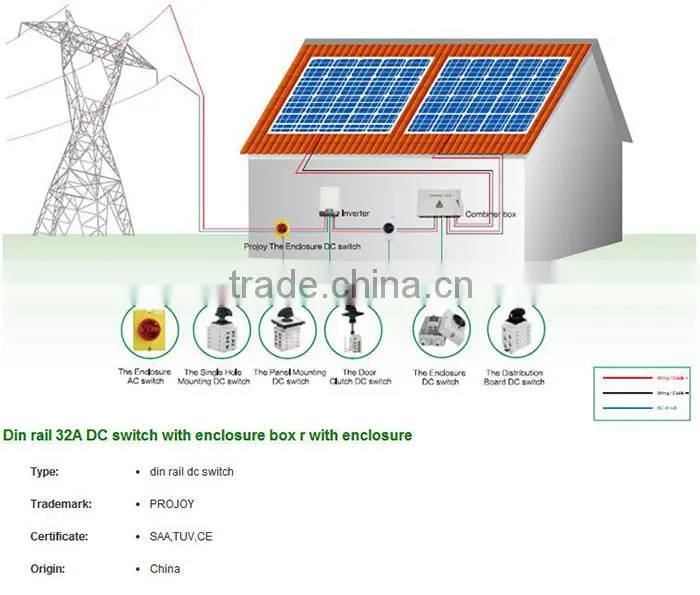

A.The switches between all kinds of power converters and PV sources:
        Between gird-on inverters and solar modules at Grid-connected PV systems,
        Between off-grid inverters and solar modules at Off-grid PV systems
        Between hybrid inverters and solar modules or batteries at Hybrid PV systems with batteries,
        Between solar pumping inverters and solar modules at Solar Pumping systems.

B.The switches in all kinds of low-voltage input lines and distribution lines:
        Between DC loads and between electricity distribution systems at DC supply systems.

C.Between the units of hybrid PV systems with storage batteries:
        Between batteries and wave converters
         Between batteries and hybrid inverters
D.All kinds of DC or DC motor loads, DC lighting, and household appliances.

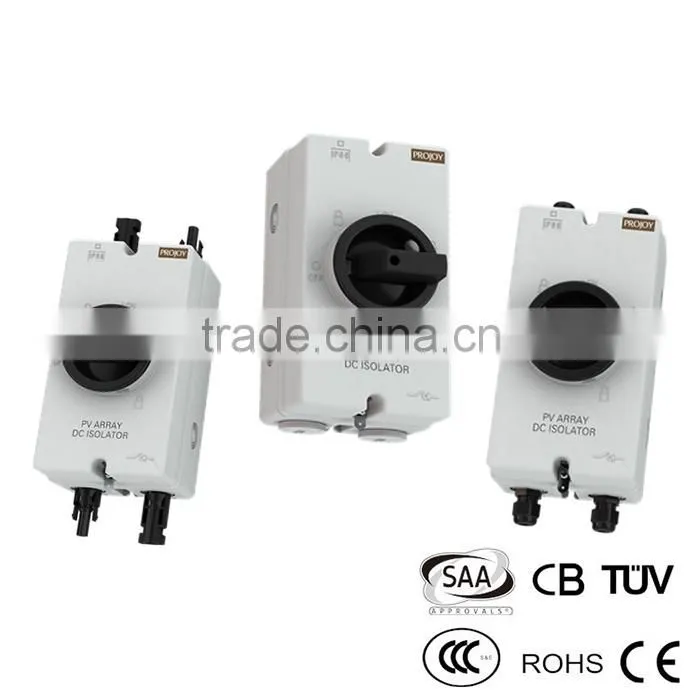

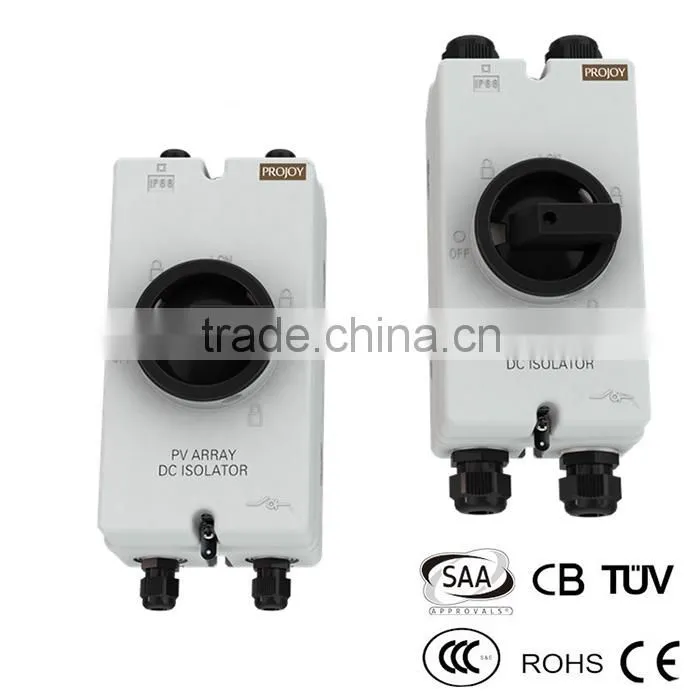

3.Products show

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
