SPD 2p 10KA~20KA D ~420V House Surge Protector Protection Protective Low-voltage Arrester Device

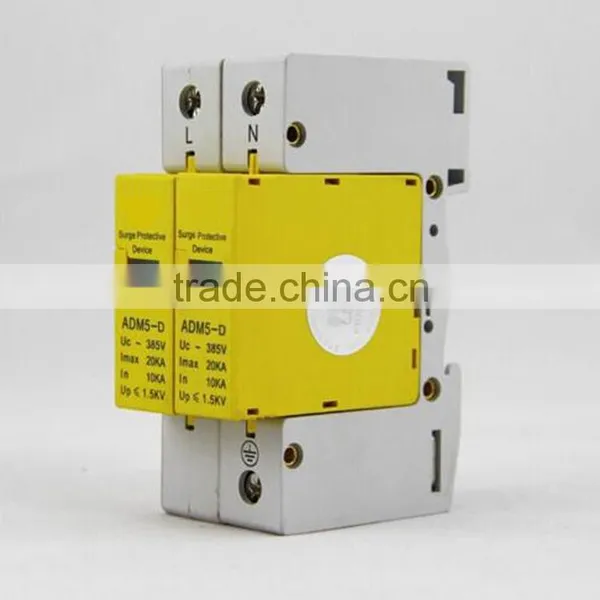

SPD 2p 10KA~20KA D ~420V House Surge Protector Protection Protective Low-voltage Arrester Device photo-1
SPD 2p 10KA~20KA D ~420V House Surge Protector Protection Protective Low-voltage Arrester Device photo-2
SPD 2p 10KA~20KA D ~420V House Surge Protector Protection Protective Low-voltage Arrester Device photo-3
SPD 2p 10KA~20KA D ~420V House Surge Protector Protection Protective Low-voltage Arrester Device photo-4
SPD 2p 10KA~20KA D ~420V House Surge Protector Protection Protective Low-voltage Arrester Device photo-5
SPD 2p 10KA~20KA D ~420V House Surge Protector Protection Protective Low-voltage Arrester Device photo-6
US$ 3.5 - 4.8 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KAMPA, kampa
Model Number:
LR1-20D
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name KAMPA, kampa
Model Number LR1-20D

SPD 1p+N 10KA~20KA D ~385V House Surge Protector protection Protective Low-voltage Arrester Device

Product Description



Application:

1. AC 380V/220V/110V,Widely used in sub-distribution box
2. Green/Red window color showing working status,green=normal ,red=abnormal.
3.Maximum continuous operating voltage Uc(V):   385V AC
4.Voltage protection level up(KV):                           ≤1.2KV
5.Nominal discharge current In(8/20μs)KA:           5kA
6.Maximum discharge current Imax(8/20μs)KA:   10kA
7.Response times(ns):                                           <25 ns
8.Test standard:                       GB18802.1   IEC61643-1
9.Operating environment°C:                          -40°C~85°C
10.Relative humudity(25°C):                                    ≤95%
11.Installation:                                      Standard rail 35mm
12.Material of outer covering:   Fiber glass reinforced plastic








Principle diagram:

SPD 2p 10KA~20KA D ~420V House Surge Protector protection Protective Low-voltage Arrester DeviceSPD 2p 10KA~20KA D ~420V House Surge Protector protection Protective Low-voltage Arrester DeviceSPD 2p 10KA~20KA D ~420V House Surge Protector protection Protective Low-voltage Arrester DeviceSPD 2p 10KA~20KA D ~420V House Surge Protector protection Protective Low-voltage Arrester DeviceSPD 2p 10KA~20KA D ~420V House Surge Protector protection Protective Low-voltage Arrester Device
