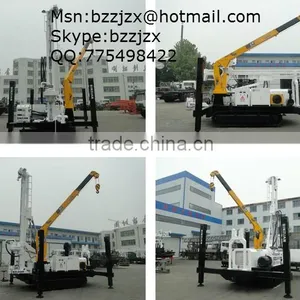

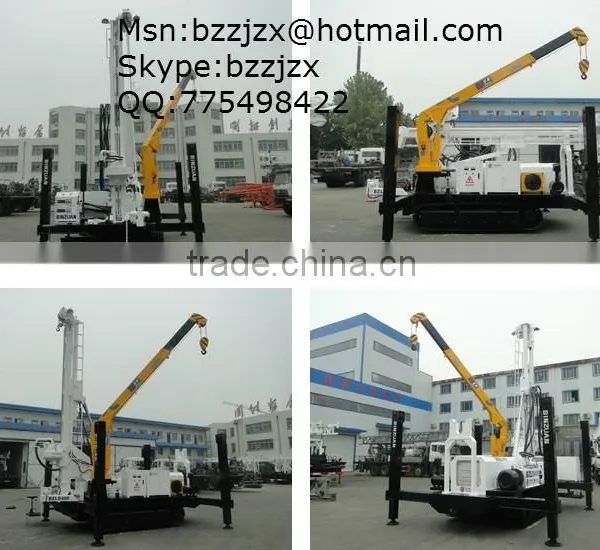

Powerful ! 400m Crawler Rock Drilling Rig(BZLD400)

Powerful ! 400m Crawler Rock Drilling Rig(BZLD400) thumbnail-1
Powerful ! 400m Crawler Rock Drilling Rig(BZLD400) photo-1
US$ 66,500 - 86,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Shandong Binzhou Forging And Pressing Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Longkou and the others
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Shandong, China
Brand Name BINZUAN
Model Number BZLD400
Usage Water Well
Voltage 380V
Power(W) 55kw
Dimension(L*W*H) 6000x2100x3120
Weight 11t
Certification ISO9001:2008
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Main features:

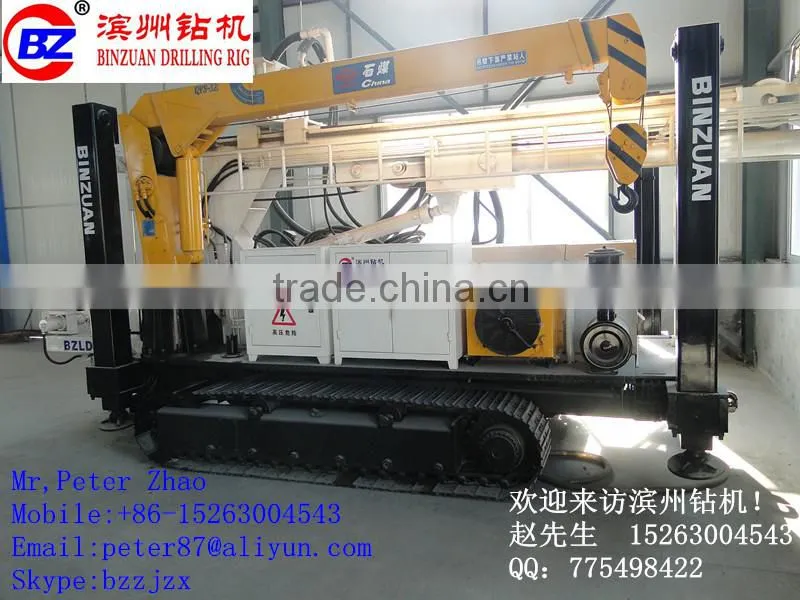

Powerful ! 400m crawler rock drilling rig(BZLD400)



  1. BZLD400 Crawler rock drilling rig is designed by our engineers borrowed the advanced technology from domestic and foreign countries.
  2. The rig is reasonable design, complete matching, superior performance, easy to operate, easy to repair.
  3. It is hydraulic drive, crawler belt. The drive head is driven by low-speed big torque motor. It has two-gear stepless speed regulating, advanced easy structure, steel wire feeding    system. The drilling rig is well stability, attractive appearance and realizes the design principle of "base on people”.
  4. The diesel engine, hydraulic pump, main valve, motor, walking reduction box etc. And the main accessories are famous brand.
  5. Install a 3T crane on the chassis of drilling rig,in order to use more convenient than traditional.
  6. With large torque, high configuration,reasonable design, advanced control way assure the efficient working.
  7. The diesel engine of the drilling rig is low emission,professional drop noise design, so it can used in various construction sites.
  8. It uses advanced load sense control technology  which reduces the power consumption and heating system.
  9. With nice appearance, compact structure, reliable performance, easy operation, the drilling rig is the best choice of hydraulic crawler rock drilling rigs.
  10. The drilling rig can drill in the clay, sand, weathered rock, bed rock and mainly used in hydrogeology survey, water well drilling, underground tunnel, construction of vent hole, geotherm hole etc. It can apply many drilling techniques, like air drilling, foam rotary drilling.

Technical parameter

Drill depth(M)

400

Drill diameter(mm)

320

Drill pipe(mm)

89×10×3000

Wind pressure(Mpa)

1.05-2.46

Air consumption (M3/min)

16-35

Climbing capacity(°)

20°

Travel speed(km/h)

0-2.5

Lifting capacity of winch(KN)

10

Hoisting speed(m/min)

50

Rotating speed(rpm)

1-105

Rotating torque(KN)

4.5

Axle pressure(KN)

44

Lifting capacity of power head(KN)

130

Slow rise capacity(m/min)

7.2

Slow feeding capacity(m/min)

20

Fast rise capacity (m/min)

14.4

Fast feeding capacity(m/min)

40

Weight(t)

11

Overall dimension(mm)

6000x2100x3120
