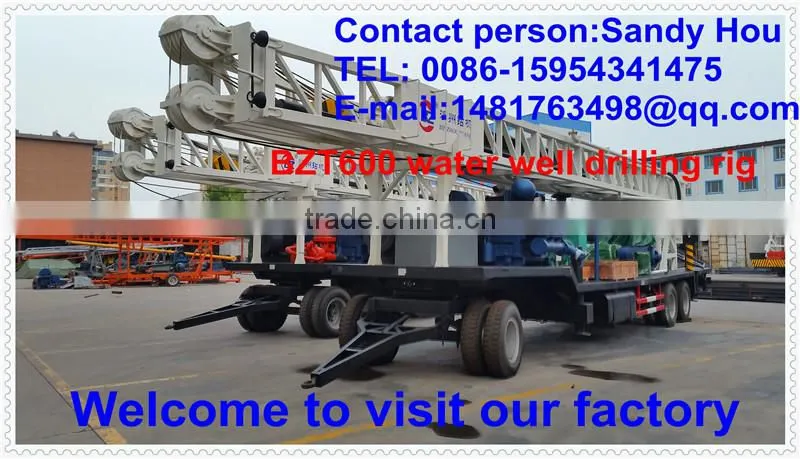

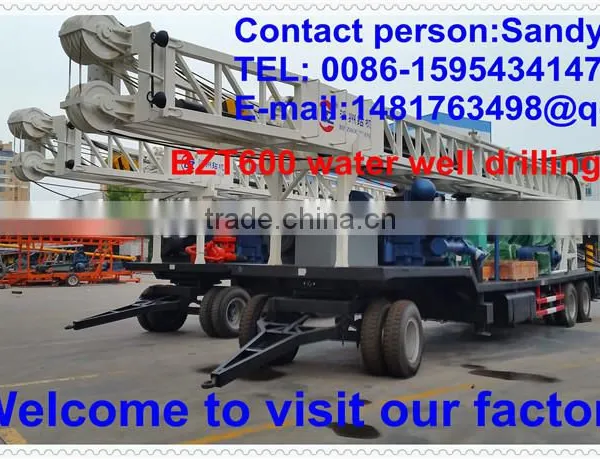

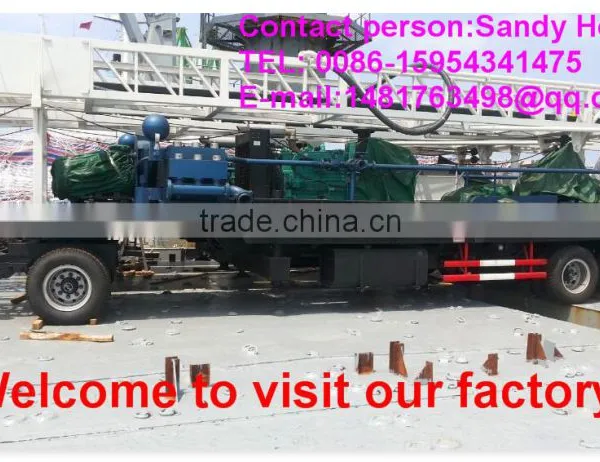

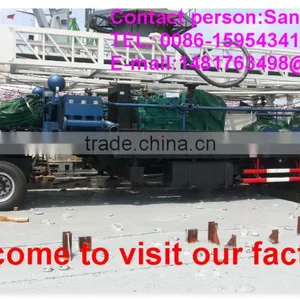

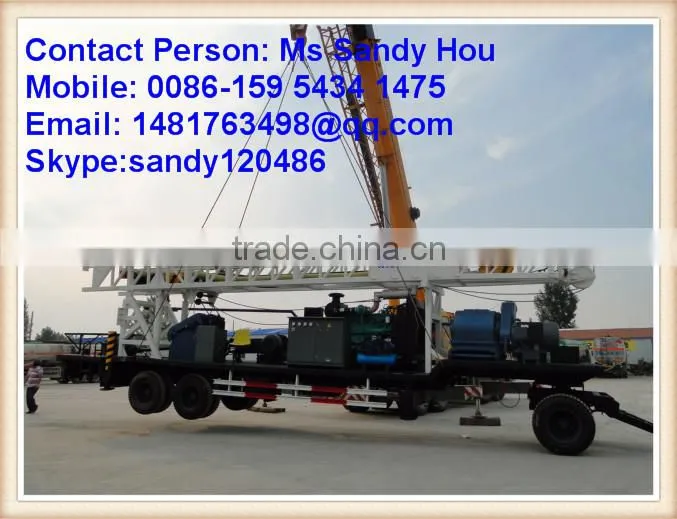

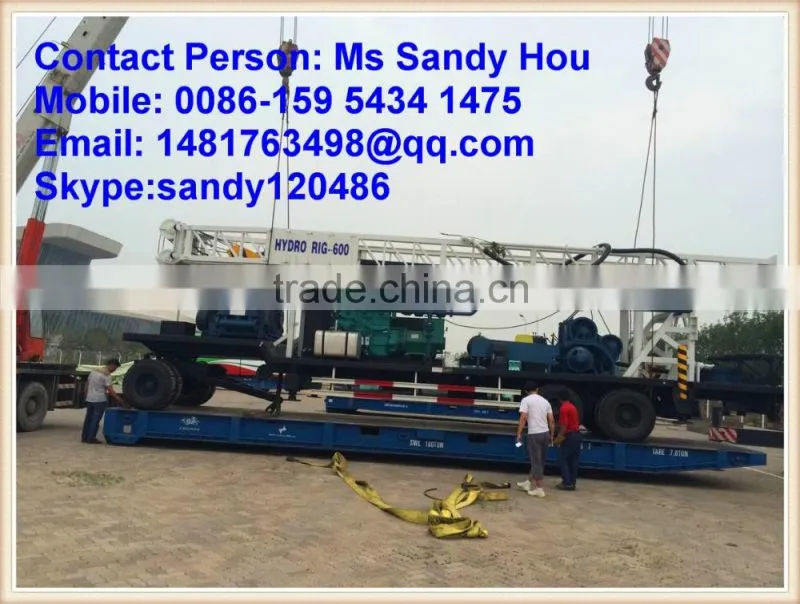

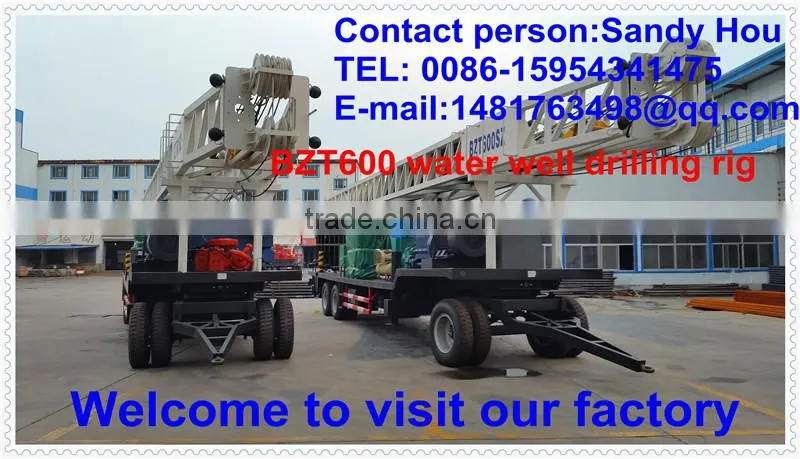

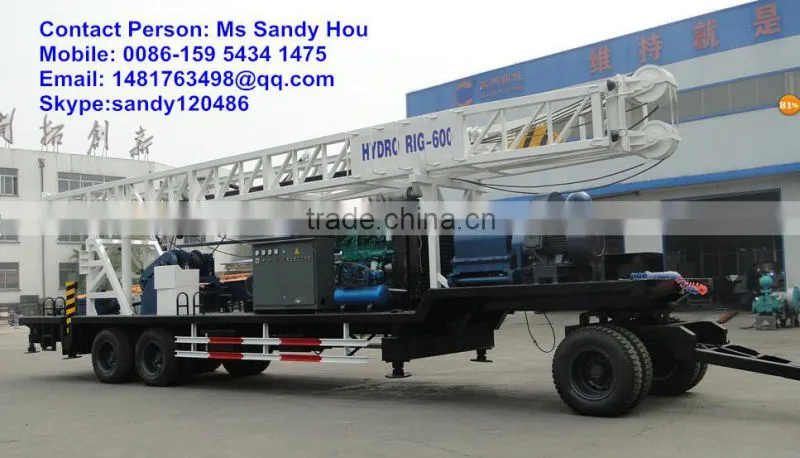

1. BZT600 water well drilling rig is installed on a trailer together with diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components. It can be traction through tractor or truck. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability.
2. This drilling rig BZT600 equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve auxiliary unloading the drill pipe. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.
Technical parameters | ||
Drilling depth(M) |
600 |
|
Drilling diameter(mm) |
500 |
|
The capacity of main hoist(KN) |
240 |
|
The capacity of assistant hoist(KN) |
120 |
|
The height of tower(mm) |
12000/15000 |
|
Bearing(KN) |
300 |
|
Drill pipe(mm) |
89×10 |
|
Diesel generator |
Model |
SGCG-200 |
Rated power(KW) |
200 |
|
Frequency(Hz) |
50 |
|
|
3NB piston pump |
Rated flow(L/s) |
8.4-16.6 |
Work pressure(MPa) |
5-10 |
|
Working size(L*W*H)(mm) |
15100×2480×14170(17170) |
|
Transport size(L*W*H)(mm) |
15100(16630)×2480×4100 |
|
1. Questions and answers

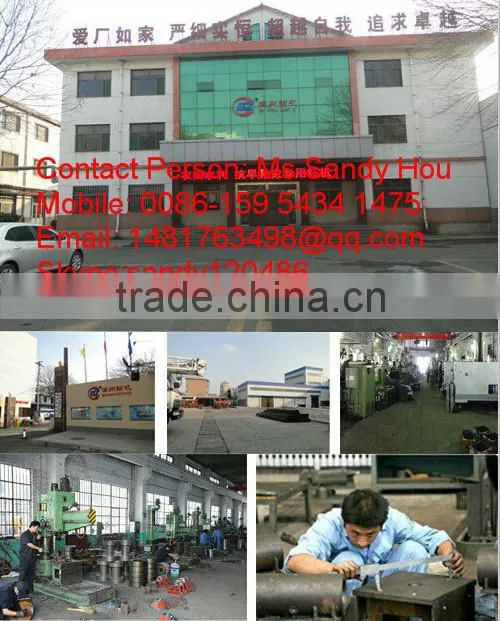

1.Are you trading company or manufacturer?We are professional manufacturer since 1953, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2.Are your products qualified?Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality? All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 10 days.
2. Advantages
1. Fast construction speed, can save your precious time and finish the engineering in
advance.
2. Load feedback system with less energy consumption, more energy saving.
3. Large torque, anti-sticking.
4. Deep depth, big diameter.
5. We have independent R&D department, with independent intellectual property rights, and ensure the sustainable upgrading of product performance.
6. We have strong construction technology and professional construction team, we can guide customers according to their construction problems from inquiry to after-sales.
