Help CenterBZYXC400 Core Drilling Rig
Related Products
-
Rotary Table Water Well Drilling MachineryUS$ 1 - 123,900MOQ: 1 Set -
600 Meters Truck Mounted Water Well Drilling Rig BZC600BZYUS$ 1 - 148,000MOQ: 1 Set
-
1000m Water Well Drilling Rig Famous in AfricaUS$ 210,000 - 300,000MOQ: 1 Set
-
Exported to Senegal 400m Full Hydraulic Truck Mounted Water Well Drilling RigUS$ 123,000 - 200,000MOQ: 1 Set
-
300m Water Well Drilling Rig BZT300US$ 1 - 65,000MOQ: 1 Set
Featured:
1. It select 53×59 six-party main rod, it has good rigidity, and has large torque;

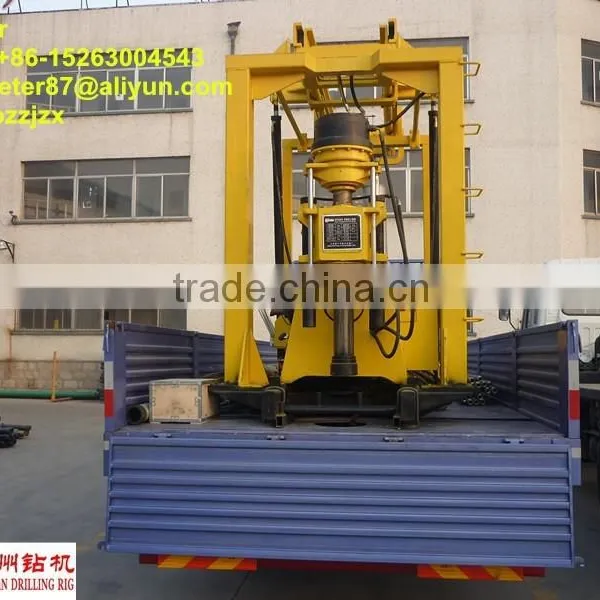

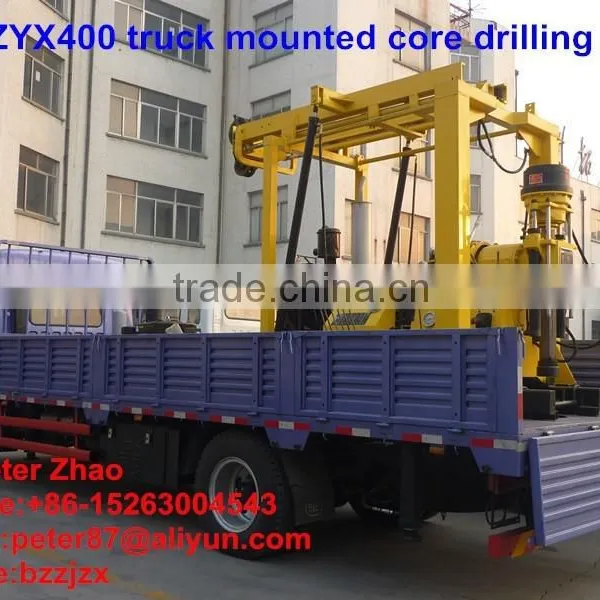

2. BZCYX400 truck mounted core drilling rig using patented technology taper clutch, it has large transfer torque, easy operation, no maintenance and the others prominent features.
3. The windlass planetary gear increase modulus and install bracket, it improve the lifting and braking capacity greatly.
4. The scroll box has 4 sets bearing to locate, it can make sure gyrator has enough rigid to respond the graver layer, cobblestone layer and the others complex geological conditions.
5. Compare to the similar products throughout China, we install the 160l/min mud pump first, with a costing savings, compact and easy to move.
Adaptation:
Geological prospecting and exploration, basic exploration for roads and high-rise buildings, and several inspection hole concrete structure, dams, roadbed grouting hole drilling and grouting directly, water well and geothermal central air conditioning.
Drilling depth |
m |
100 |
250 |
300 |
600 |
||||
Drilling Diameter |
mm |
300 |
200 |
150 |
75 |
||||
Open hole Diameter |
mm |
300 |
|||||||
End hole Diameter |
mm |
75 |
|||||||

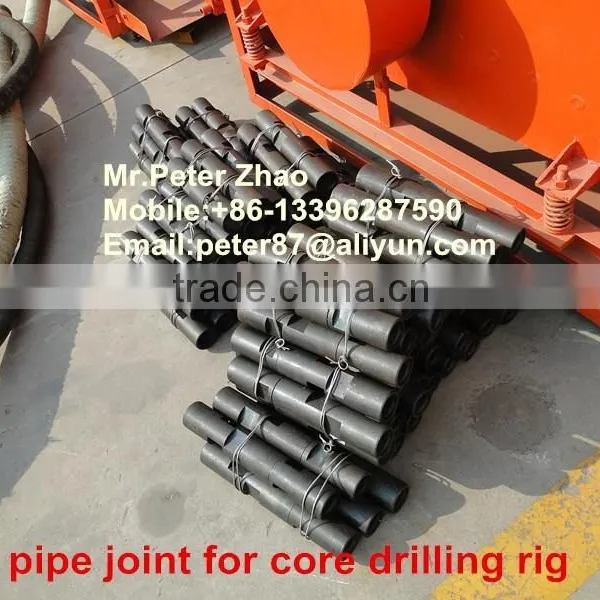

Drilling rod |
mm |
Φ60 |
|||||||
Drilling angle |
|
90°-65° |
|||||||
Rotary Spindle | |||||||||
Spindle forward speed |
r/min |
30-1050 |
|||||||
Spindle reverse speed |
r/min |
29-137 |
|||||||
Spindle stroke |
mm |
560 |
|||||||
Spindle inner diameter |
mm |
96 |
|||||||
Spindle lifting capacity |
KN |
60 |
|||||||
Main Winch ( drive hydraulic system) | |||||||||
Single line lifting speed |
m/min |
0-45 |
|||||||
Hug floodgate belt width |
mm |
90 |
|||||||
Tightrope diameter |
mm |
14 |
|||||||
Hoist single line lifting capacity |
KN |
40 |
|||||||
Roller diameter |
mm |
200 |
|||||||
Roller cubic measure |
m |
30 |
|||||||
Mud pump | |||||||||
Horizontal Triplex BW-250 mud pump | |||||||||
Displacement |
L/min |
250 |
|||||||
Work pressure |
Mpa |
7 |
|||||||
Water inlet caliber |
mm |
75 |
|||||||
Water to exit caliber |
mm |
50 |
|||||||
Gear Oil pump | |||||||||
Duplex gear oil pump CBF-F63/25 | |||||||||
Front displacement pressure |
63mL/r 20Mpa |
||||||||
Behind displacement pressure |
25mL/r 20Mpa |
||||||||
