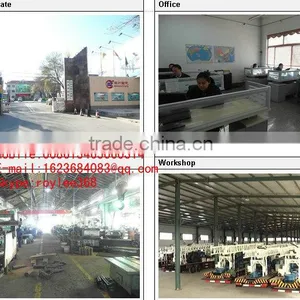

Now 20% Discount for BZC400BCA Truck Mounted Water Well Drilling Rig thumbnail-1

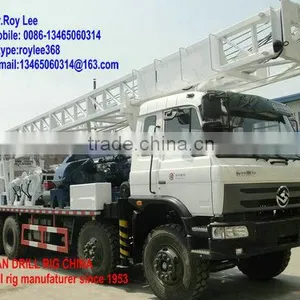

Now 20% Discount for BZC400BCA Truck Mounted Water Well Drilling Rig thumbnail-2
Now 20% Discount for BZC400BCA Truck Mounted Water Well Drilling Rig thumbnail-3

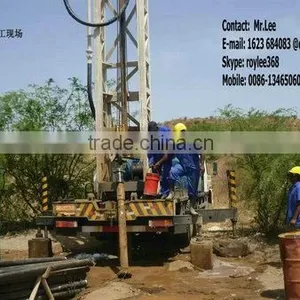

Now 20% Discount for BZC400BCA Truck Mounted Water Well Drilling Rig thumbnail-4
Now 20% Discount for BZC400BCA Truck Mounted Water Well Drilling Rig thumbnail-5

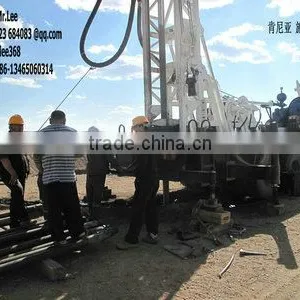

Now 20% Discount for BZC400BCA Truck Mounted Water Well Drilling Rig thumbnail-6
Now 20% Discount for BZC400BCA Truck Mounted Water Well Drilling Rig photo-1
Now 20% Discount for BZC400BCA Truck Mounted Water Well Drilling Rig photo-2
Now 20% Discount for BZC400BCA Truck Mounted Water Well Drilling Rig photo-3

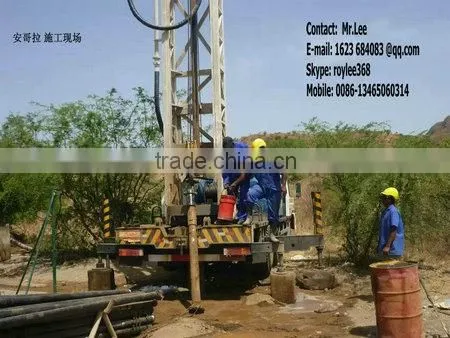

Now 20% Discount for BZC400BCA Truck Mounted Water Well Drilling Rig photo-4
Now 20% Discount for BZC400BCA Truck Mounted Water Well Drilling Rig photo-5
Now 20% Discount for BZC400BCA Truck Mounted Water Well Drilling Rig photo-6
US$ 70,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Shandong Binzhou Forging And Pressing Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Shandong, China
Brand Name BINZUAN Drilling Rig
Model Number water well drilling rig BZC400
Usage Water Well
Power(W) 191Kw
Dimension(L*W*H) 12160*2490*3440
Weight 17250kg
Certification ISO9001
Warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas

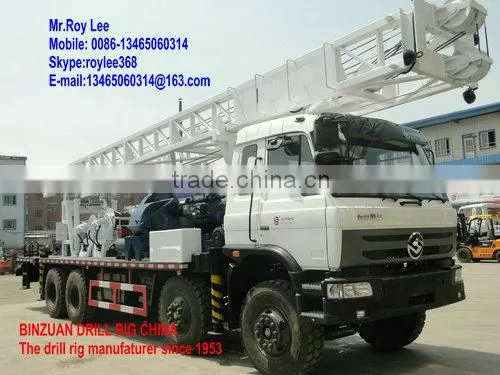

BZC-400BCA truck mounted water well drilling rig





1. BZC-400BCA truck mounted drilling rig is a kind of truck mounted and rotary table drilling rig.



Now 20% discount for BZC400BCA truck mounted water well drilling rig



2. The truck chassis adopts the 8X4 special crane chassis of brand CHAN'AN TRUCK and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis.

3. This rig is a rotary drilling rig with directional circulation. It is equipped with BW850/2A mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

4. The main drive of rig is mechanical and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated.

5. According to client’s requirement, the rig can carry out down-the-hole hammer drilling with USA Sullair, Japan PDSKIOOS, Sweden Atlas, China Kaishan, Hongwuhuang; can carry out air lifting reverse circulation drilling with air-water tap, double-wall drilling pipe, gas-water separator; can carry out Hydraulic DTH hammer drilling rock breaking with 850/2A mud pump; can carry out core-drilling with other special drilling tools ;











Technical parameter





400

 Drilling depth(M)



500

 80

21.2;36;63.2;100.6;155;20.2(reverse)

 300

18;10.6;6;3.8;2.5;18.9(reverse)



30

 Drilling diameter(mm)

180

 1500

180

 500

11500



25

 Speed of turntable(r/min)

 21.2;36;63.2;100.6;155;20.2(reverse)

 Kelly (mm)

108×108×7500

 Assistant pipe (mm)

89×10×6000



 Torque of turntable(KN.m)

 18;10.6;6;3.8;2.5;18.9(reverse)



 Model

CBQL-F550/F532-CFHL

 Pump delivery (ml/r)

50/32

 Rated speed (r/min)

2000

 Rated pressure(MPa)

20

Single rope lifting capacity of windlass(KN)

 30



 The lifting capacity of hook(KN)

 180



 Bearing capacity of mast (KN)

 180



 The height of mast (mm)

 11500

 Diameter of cylinder (mm)

150

 Stroke of piston (mm)

180

Theory of flow (L / min)

600      850

Rated pressure (Mpa)

3         2

Pounding  times (min-1)

58        82

 Diameter of suction tube (mm)

127

 Diameter of drain pipe (mm)

64

 Input speed (r / min)

470

 Input power (kw)

40

 Overall dimensions (mm)

2000*1030*1400

Weight (t)

1.5



 Bearing capacity (t)

 25



Pipe

  Kelly (mm)

 Model

CZ5210

 Drive form

6×4



Engine

 Model

CA6DF3-18E3

 Rated power(KW)

132

 Speed (r/min)

2300

 Size (L*W*H)(mm)

10230×2490×2870





ABC

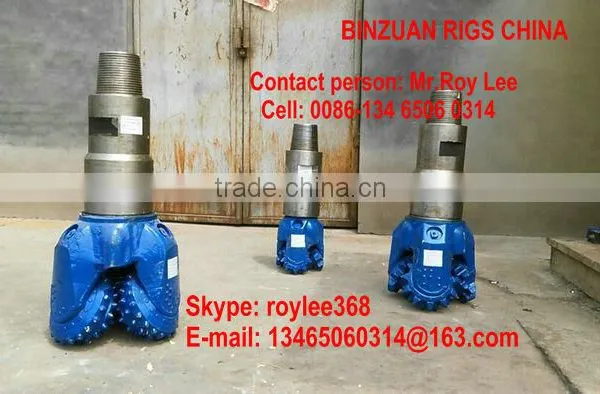

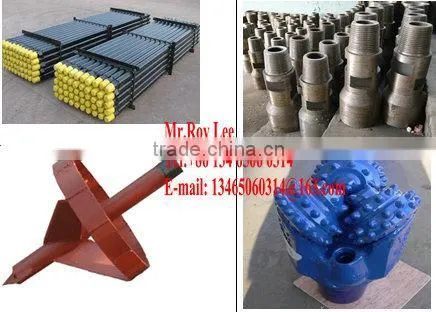

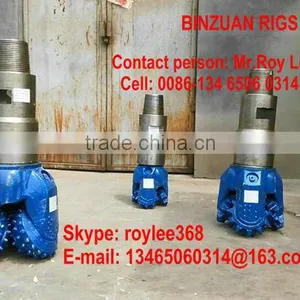

IV. Drilling accessories

Now 20% discount for BZC400BCA truck mounted water well drilling rig

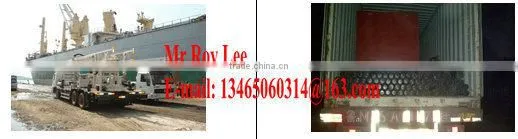

V. Machine delivery site

Now 20% discount for BZC400BCA truck mounted water well drilling rig



VI. After-sale service



*One year quality

* Training: operation manual, overseas installation is also available;

* Spare parts are available in our factory at cost price for former customers;

* 24 hour on-line guidance for operation and maintenance.

 Now 20% discount for BZC400BCA truck mounted water well drilling rig

Remarks: Our engineers will help to create a complete set of Borehole drilling machine and drilling tools to ensure your direct use when shipping to your site. For more details, please kindly send us an inquiry or contact our sales people by instant messenger.
