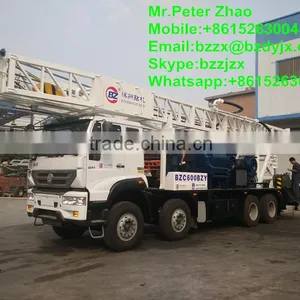

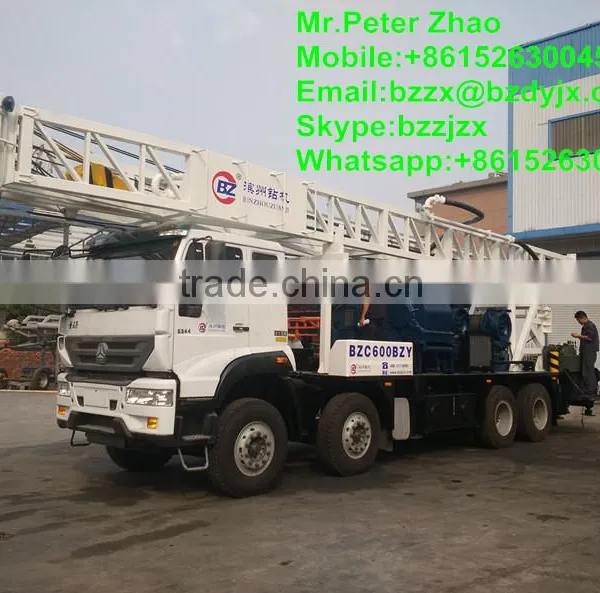

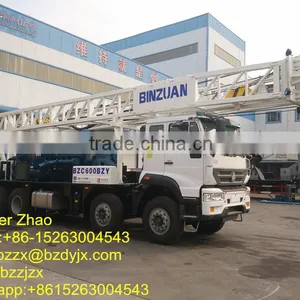

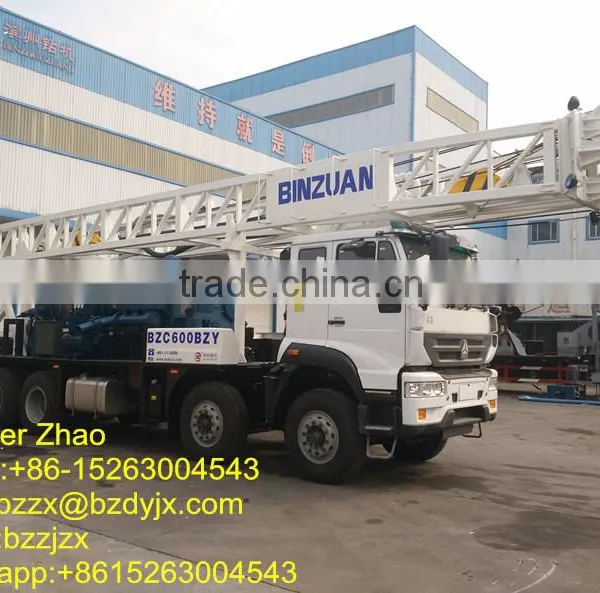

1.BZC600BZY truck mounted drilling rig is designed by our engineers; it is adopt truck mounted and is a rotary drilling rig.

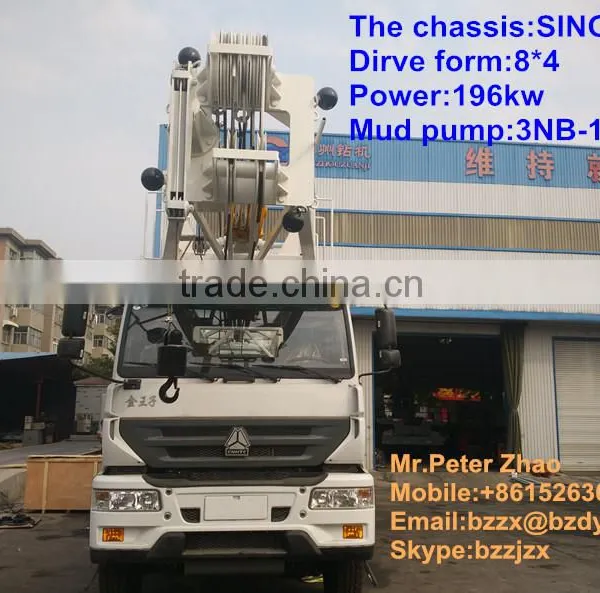

2.The truck chassis is adopt the 8×4 special chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis.
3.This rig is a rotary drilling rig with directional circulation, which is equipped with 3NB-130 piston pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
4.The power of drilling rig comes from the truck engine; the rig sets up distribute implement and hydraulic system.
5.We can set up the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.

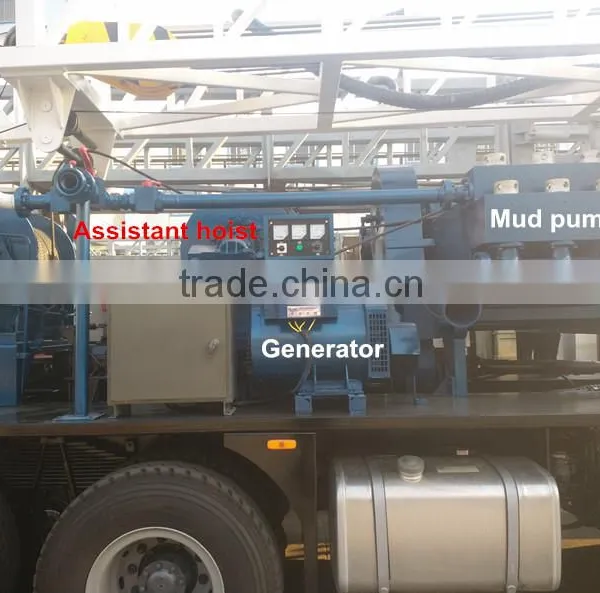

6.We can set up a generator (30kw) , so that it is convenient to illuminate or work at night.
7.The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
Technical parameter | |||
Drilling depth(M) |
600 |
||
Drilling diameter(mm) |
500 |
||

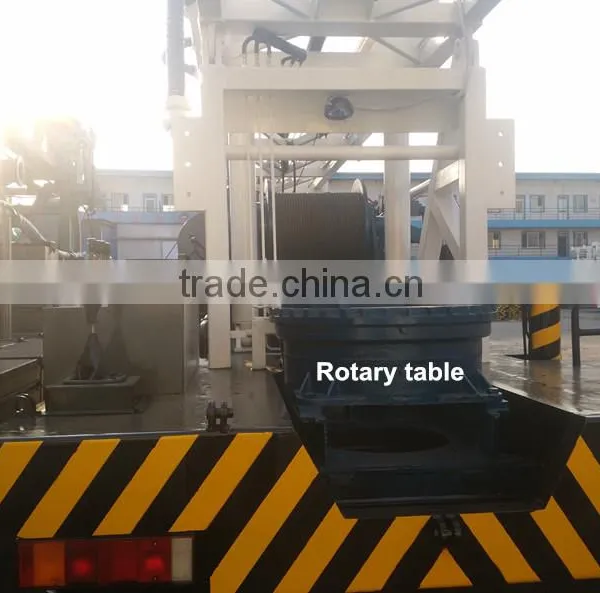

Speed of turntable(r/min) |
12.8;22.3;38.5;59.8;102.7;117.6;16.1(reverse) |
||
Torque of turntable(KN.m) |
41.4;23.8;13.8;10.6;5.1;4.5;32(reverse) |
||
Single rope lifting capacity of windlass(KN) |
45 |
||
The capacity of main windlass(KN) |
270 |
||
The height of mast (mm) |
12043 |
||
Bearing capacity (t) |
30 |
||
Pipe |
Kelly (mm) |
108×108×7500 |
|
Assistant pipe (mm) |
89×10×5500 |
||
|
3NB-130 piston pump
|
Diameter of cylinder (mm) |
100 110 120 130 140 |
|
Stroke of piston (mm) |
160 |
||
Theory of flow (L / min) |
1000 |
||
Rated pressure (Mpa) |
5 |
||
Overall dimensions (mm) |
2260*1380*1260 |
||
Weight (t) |
3.2 |
||
|
Truck chassis |
Model |
SINOTRUK |
|
Drive form |
8×4 |
||
|
Engine |
Model |
WD615.92E |
|
Rated power(KW) |
194 |
||
Speed (r/min) |
2300 |
||
Size (L*W*H)(mm) |
11510×2480×2800 |
||
The highest speed(Km/h) |
70 |
||
Weight (kg) |
25960 |
||
Transport size(L*W*H)(mm) |
12386*2480*3837 |
||
Working size(L*W*H)(mm) |
11123*2480*13618 |
||
