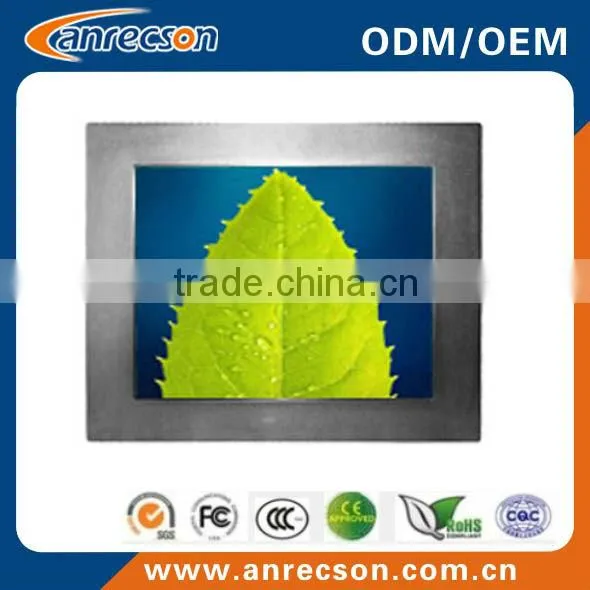

Hot-selling rugged ip65 industrial touch panel pc with CE, RoHs, FCC, ISO 9001, 17"
Feature Descriptions :
1. CPU: Intel core P7350(optional Intel Core 2 Duo, Core 2 Solo,Celeron M CPU)
2 .DDR3(800/1066/1333MHz)Typ. 2G (Max 4G)(optional)
3.SSD 16G (optional), Resistive 5 W touch
4. Sumsang panel,High configuration,vibration proof
5.wide temperature and humidity
6. Open Frame touch( or industrial panel PC with aluminum bezel optional)
7. Any customized service
8.CE, RoHS, FCC, CCC certificates.
9. for medical panel PC, marine panel PC, for information display, embedded in industrial automatic device
Data sheet:
| LC-IPC1701T-5R Panel PC all in one | ||||||
| Specifications | ||||||
| Item | Project | parameter | ||||
| LCD Display | Display Type/Size | Color TFT LCD/17″ | ||||
| Active Display Area (mm) | 337.92mm(W)×270.336mm(H) | |||||
| Display Mode | 4:3 | |||||
| Max Resolution | 1280×1024 | |||||
| Support Color | 16.7M | |||||
| Luminance(cd/m2) | 250cd/m2 | |||||
| Backlight | 2 CCFL | |||||
| Contrast Ratio | 1000:1 | |||||
| Response Time | 4ms | |||||
| Pixel Pitch | 0.264(H)×0.264(V) | |||||
| Viewing Angle | 170/160(H/V) | |||||
| Processor System | Chip set | Intel Core2 Duo CPU+GM45+ICH8M | ||||
| CPU | Intelcore P7350(optional Intel Core 2 Duo, Core 2 Solo,Celeron M CPU) | |||||
| Internal memory | DDR3(800/1066/1333MHz)Typ. 2G (Max 4G)(optional) | |||||
| Hard disk | 16GB high speed solid state disk (optional) | |||||
| VGA ports | 1xVGA Ports/1xHDMI Ports | |||||
| COM ports | Defaultx4 COM(optional) | |||||
| Ethernet ports | One Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g.) | |||||
| Audio | with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit |
|||||
| USB ports | Defaultx4 USB(Max x6) | |||||
| Touch Type | TouchScreen Type | Resistive(4-wire/5-wire) | ||||
| Optional Touch Type | SAW, IR, Capacitive | |||||
| TouchScreen interface | Serial (RS232) or USB | |||||
| Power supply | Input Voltage | DC12V 4A | ||||
| Output Rating | <=30W | |||||
| Temperature Range | Operating Temperature | -20~70°C | ||||
| Storage Temperature | -20~70°C | |||||
| Relative Humidity | 20(%RH)~90(%RH) | |||||
