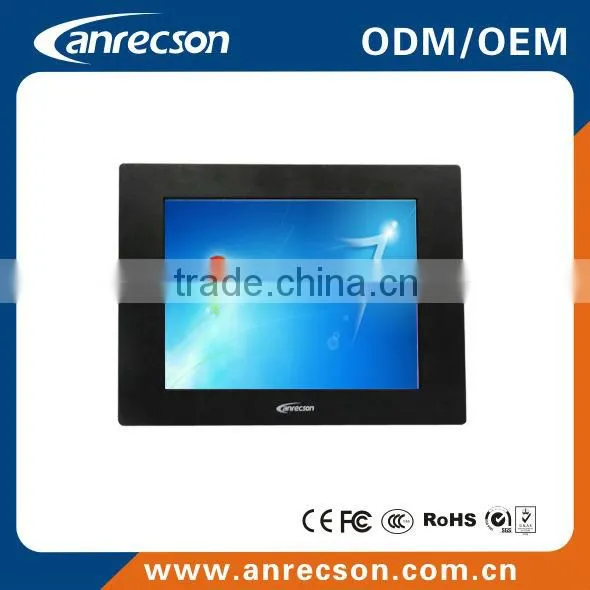

12.1 inch rugged ip65 industrial touch panel pc all in one with CE, RoHs, FCC, ISO 9001
Feature Descriptions :
various sizes from7"--46" such as:7",8",10.4",12.1".15",17”,18“,19”,20",21.5",22",24"26"32”37”40”42”46”
1.Intel core D525(optional N455/N475 CPU)
2.16GB high speed solid state disk (optional)
3.Intel Atom D525+ICH8M
4. Sumsang panel,High configuration,vibration proof
5.wide temperature and humidity
6. Open Frame touch( or industrial panel PC with aluminum bezel optional)
7. Any customized service
8.CE, RoHS, FCC, CCC certificates.
9. for medical panel PC, marine panel PC, for information display, embedded in industrial automatic device
Data sheet:
| LC-IPC1201T-5R Panel PC all in one | ||||||
| Specifications | ||||||
| Item | Project | parameter | ||||
| LCD Display | Display Type/Size | Color TFT LCD/12.1″ | ||||
| Active Display Area (mm) | 261.12mm(H)×163.2mm(V) | |||||
| Display Mode | 16:10 | |||||
| Max Resolution | 1280*800 | |||||
| Support Color | 16.7M | |||||
| Luminance(cd/m2) | 450cd/m2 | |||||
| Backlight | 2 CCFL | |||||
| Contrast Ratio | 350:1 | |||||
| Response Time | 12 ms | |||||
| Pixel Pitch | 0.204(H)×0.204(V) | |||||
| Viewing Angle | 130(H) /115(V) | |||||
| Processor System | Chip set | Intel Atom D525+ICH8M | ||||
| CPU | Intel core D525(optional N455/N475 CPU) | |||||
| Internal memory | DDR3(800/1066/1333MHz)Typ. 2G (Max 4G)(optional) | |||||
| Hard disk | 16GB high speed solid state disk (optional) | |||||
| VGA ports | 1xVGA Ports | |||||
| COM ports | Defaultx2 COM(optional) | |||||
| Ethernet ports | One Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g.) | |||||
| Audio | with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit |
|||||
| USB ports | Defaultx4 USB(Max x6) | |||||
| Touch Type | TouchScreen Type | Resistive(4-wire/5-wire) | ||||
| Optional Touch Type | SAW, IR, Capacitive | |||||
| TouchScreen interface | Serial (RS232) or USB | |||||
| Power supply | Input Voltage | DC12V 4A | ||||
| Output Rating | <=20W | |||||
| Temperature Range | Operating Temperature | -20~70°C | ||||
| Storage Temperature | -20~70°C | |||||
| Relative Humidity | 20(%RH)~90(%RH) | |||||
Company Showing
CeBIT Hannover 2013, Canton Fair, 2013 ISC WEST, China Sourcing Fair(HK), EXPOSEC 2013(Brazil), Computex Taipei 2013
Worldwide supplier of lcd monitor(open frame monitor, industrial monitor, touch monitor, CCTV monitor, medical monitor, etc), Panel PC, high brightness product, lcd digital signage, transparent LCD, Since 1998
