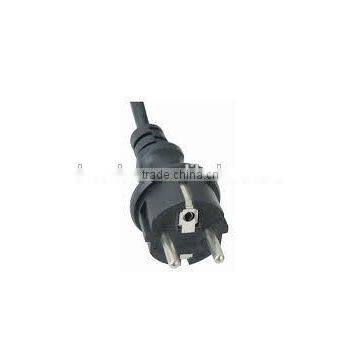

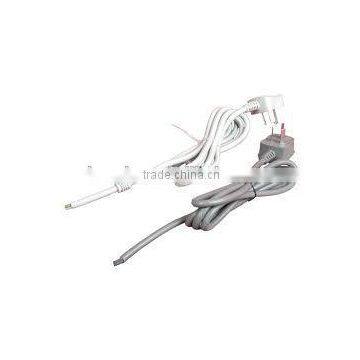

VDE Lamp Textible Power Cord Cable With Plug

Name: VDE Lamp Textible Power Cord Cable With Plug
Brand: Haerkn
SKU: 133708413
Availability: InStock

US$ 0.1 - 5 MOQ: 6100 Meters

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Haerkn

Model Number:

VDE H05SS-F,8095

Guangdong Haerkn New Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Haerkn

Model Number VDE H05SS-F,8095

Type Insulated

Application Heating

Conductor Material Other, Tinned Copper

Conductor Type Stranded

Insulation Material Other, Silicone, Teflon

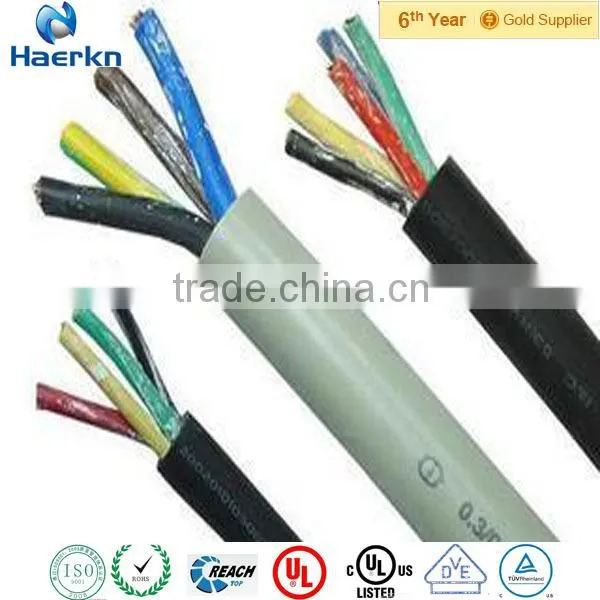

VDE lamp textible power cord cable with plug

Technical data

Nominal Voltage:300V/500V

Temperature Range:-60~+180celsius degree

Colours:white,blue,red, black,brown, yellow, green,transparent,yellow/green,etc...

O.D.Tolerance:±0.10mm

Testing Voltage:3000V~5000V

Conductor:Tinned Copper

Insulator:Silicone/Teflon

Jacket : Silicone/pvc

Pleach: Fiberglass & Nylon

Braid: Textile

Plug: IP44 or same as client's requirements

Structure

(Conductor)			(Insulator)		(Jacket)		(Electrical Characteristic)	(Packaging)
Section mm²	(Comps.n^.x) φmm	(Diameter) φmm	(Insulation minimum Thickness) mm	(Insulator outer diameter) φmm	(Jacket minimum Thickness) /mm	(Over Diameter) φmm	(Realest, max Cu, c 20°C) Ohm/km	Mt/coils
2C×0.75	24/0.02	1.13	0.60	2.33	0.80	6.26	26.7	300
2C×1.0	32/0.20	1.31	0.60	2.51	0.90	6.82	20.0	300
2C×1.5	30/0.254	1.61	0.80	3.21	1.00	8.42	13.7	200
2C×2.5	51/0.254	2.10	0.90	3.90	1.10	10.0	8.21	100
3C×0.75	24/0.02	1.13	0.60	2.33	0.90	6.82	26.7	300
3C×1.0	32/0.20	1.31	0.60	2.51	0.90	7.21	20.0	200
3C×1.5	30/0.254	1.61	0.80	3.21	1.00	8.91	13.7	200
3C×2.5	51/0.254	2.10	0.90	3.90	1.10	10.6	8.21	100
3C×4.0	57/0.30	2.62	1.00	4.62	1.20	12.35	5.09	100
3C×6.0	85/0.30	3.19	1.00	5.19	1.40	13.98	3.39	100
