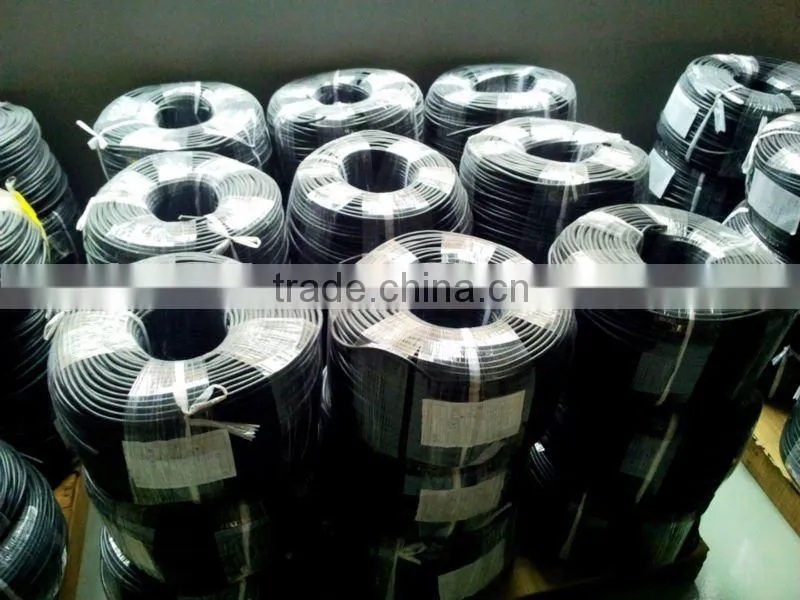

TUV certified Solar PV Cable 10 mm2

Specifications

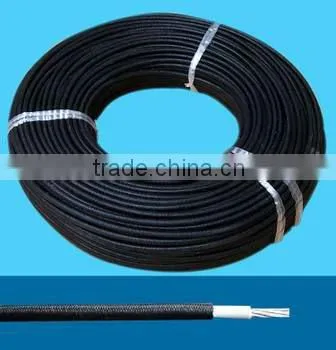

Solar PV Cable
1. TUV certified & ROHS compliant
2. XLPE double insulated
3. 0.6/1KV & -40~+90 deg C
4. Tinned copper strand

PV1-F 4.0mm2  Specification

• Rated temperatur: 90°C
• Max. temperature: 120°C
• Rated Voltage: 0.6 ~ 1.0 kv
• Color: Inner white outer black
• Conductor: Tinned copper 80/0.39 stranded
• Inner Insulation: XLPE white, thickness 0.50~0.66mm
• Inner Dia.: 5.35±0.15mm
• Outer Insulation: XLPE black, thickness 0.50~0.67mm
• Outer Dia.: 6.7±0.15mm
• Application: Connection wiring for solar PV power system and PV inverter and so on.
• Reference Standard: TUV 2 Pfg 1169/08.2007

Electrical Characteristics:

• Max DC Conductor Resistance at 20°C (Ω/km):  1.95
• Min.Insulation DC Resistance(Mohm.km):  10.0
• Dielectric Strength(KV/min):  AC6.5/DC15



Mechanical Characteristics:



Test Object: Insulation

• Test Material: XLPE
• Before Tensile Strength (N/mm2) ≥6.5
• Aging Elongation (%) ≥125
• Aging Condition (°C) 150±2°C×168H
• After Tensile Strength (N/mm2) ≥70% of original
• Aging Elongation (%) ≥70% of original



Test Object: Jacket

• Test Material: XLPE
• Before Tensile Strength (N/mm2) ≥8.0
• Aging Elongation (%) ≥125
• Aging Condition (°C) 150±2°C×168H
• After Tensile Strength (N/mm2) ≥70% of original
• Aging Elongation (%) ≥70% of original
