TUV Approved Solar Connector Cable
TUV File Number:50218805
TUV Solar Cable
Specification
Rated voltage:0.6/1KV
Rated temperature:90°C
Specification range
Conductor size:1.5~35mm2
Color: Inner White Outer Black.
Core:1 Core.
Application
Solar connector and solar power system, PV inverters, etc...
Standard
2 Pfg 1169/08.2007

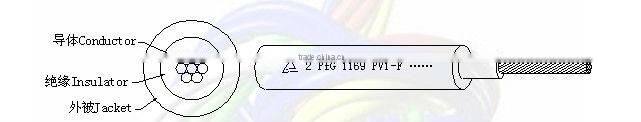

Structure
|
Conductor |
Insulator |
Jacket |
Electrical Characteristic |
Packing |
||||
|
section mm2 |
Comps.n.x φmm |
Diameter φmm |
Insulation minimum Thick mm |
Insulator diameter φmm |
Jacket minimum Thick /mm |
Over Diameter φmm |
Realest, max Cu, c 20°C Ohm/km |
Mt/coils |
1.5 |
30/0.254 |
1.61 |
0.60 |
2.81 |
0.92 |
4.65 |
13.7 |
300 |
2.5 |
50/0.254 |
2.07 |
0.60 |
3.27 |
0.92 |
5.11 |
8.21 |
300 |
4.0 |
57/0.30 |
2.62 |
0.71 |
4.04 |
1.02 |
6.08 |
5.09 |
200 |
6.0 |
84/0.30 |
3.50 |
0.75 |
5.00 |
1.05 |
7.10 |
3.39 |
200 |
10 |
84/0.39 |
4.60 |
0.82 |
6.24 |
1.07 |
8.38 |
1.95 |
100 |
16 |
133/0.39 |
5.80 |
0.90 |
7.60 |
1.08 |
9.76 |
1.24 |
100 |
25 |
210/0.39 |
7.30 |
1.12 |
9.54 |
1.08 |
11.7 |
0.795 |
100 |
35 |
294/0.39 |
8.70 |
1.15 |
11.0 |
1.25 |
13.5 |
0.565 |
100 |
