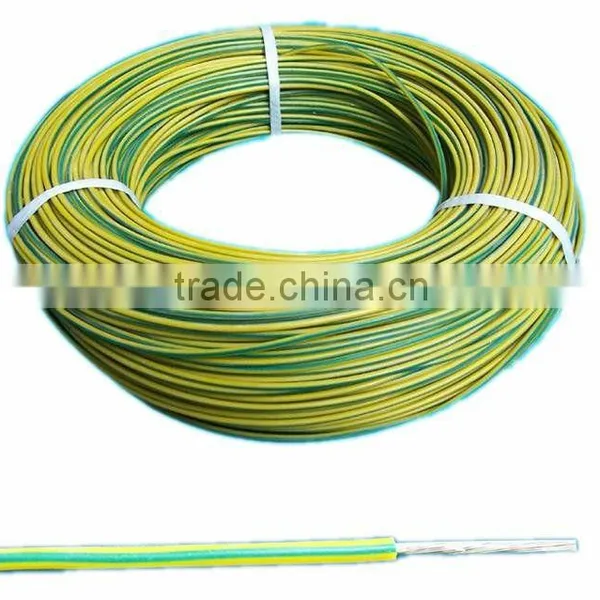

H05S-K Heat Resistance Silicone Power Cable
US$ 0.06 - 0.8
MOQ: 6100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haerkn
Model Number:
VDE H05S-K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Special Braided CableUS$ 0.01 - 5MOQ: 6100 Meters -
UL 3668 Heater Element WireUS$ 0.01 - 5MOQ: 6100 Meters
-
UL 3586 Silicone Coated CableUS$ 0.01 - 5MOQ: 6100 Meters
-
High Temperature Silicone Insulation Cables UL3536US$ 0.01 - 5MOQ: 6100 Meters
-
High Flexible Silicone Rubber Cable UL3535US$ 0.01 - 5MOQ: 6100 Meters
Place of Origin
Guangdong, China
Brand Name
Haerkn
Model Number
VDE H05S-K
Type
Insulated
Application
Heating
Conductor Material
Other, tinned or bare copper
Conductor Type
Other, solid or stranded
Insulation Material
Other, silicone
Specifications
H05S-K Heat Resistance Silicone Power Cable1.Rated voltage:300/500V
2.Rated temperature:180deg C
3.Conductor: tinned copper
H05S-K Heat Resistance Silicone Power Cable
VDE File Number: 40026436
1.Rated voltage:300/500V
2.Rated temperature: 180deg C
3.Conductor size:0.5~2.5mm2
4.Conductor material: tinned or bare copper
5.Core: 1 core
6.Insulation : Silicone
Application
They are widely used for headlamp, home appliance, industrial machine, instrument
Standard
VDE 0282
|
(Conductor) |
(Insulator) |
(Electrical Characteristic) |
(Packaging) |
|||
|
Section mm2 |
(Comps.n.x) φmm |
(Diameter) φmm |
(Insulation Thickness) /mm |
( Over diameter)/ φmm |
(Realest, max Cu, c 20°C) Ohm/km |
Mt/coils |
0.5 |
16/0.20 |
0.92 |
0.80 |
2.52 |
40.1 |
400 |
0.75 |
24/0.20 |
1.13 |
0.80 |
2.73 |
26.7 |
400 |
1.0 |
32/0.20 |
1.31 |
0.80 |
2.91 |
20.0 |
400 |
1.5 |
30/0.254 |
1.61 |
0.90 |
3.41 |
13.7 |
300 |
2.5 |
51/0.254 |
2.10 |
1.00 |
4.10 |
8.21 |
200 |
