Home > Products > Silicone Rubber cable series > UL 3122 Silicone Fiberglas Wire

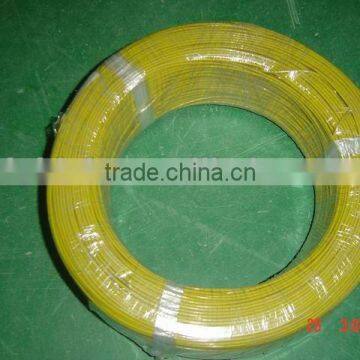

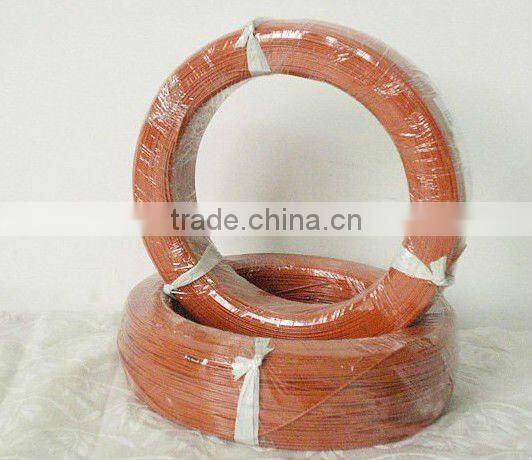

UL 3122 Silicone Fiberglas Wire
US$ 0.2 - 6
/ Meter
5000 Meters(Min. Order)
- Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Haerkn | |
| Model Number | UL3122 | Type | Insulated | |
| Application | Other, Inner Cable | Conductor Material | Other, Tinned or Nickle Copper | |
| Conductor Type | Other, Solid or Stranded | Insulation Material | Other, Silicone |
Product Description
Specifications
UL3122 Silicone Wire1.Rated voltage:300V
2.Conductor:Tinned copper
3. UL&RoHS
4.Pleach:Silicone Fiberglas
UL 3122 Silicone Fiberglas Wire
1.Rated voltage:300V
2.Temperature range:-60deg C~+200deg C
3. Colours:White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
4.O.D.Tolerance:Plus-minus 0.1mm
5.Testing Voltage:2500V
6.Insulator:Silicone
7.Pleach:Silicone Fiberglas
( Conductor) | ( Insulator) | (Electrical Characteristic) | ( Packing) | ||||
AWG | (Comps.n.x)/ φmm | (Diameter)/ φmm | (Insulation Thick)/mm /mm | (Pleach Thickness)mm | ( Over diameter)/φmm φmmφmm | (Realst,maxCuc,c 20°C)/ Ohm/km | Mt/coils |
30 | 7×0.10 | 0.31 | 0.60 | 0.15 | 1.81 | 381 | 610 |
28 | 7×0.12 | 0.37 | 0.60 | 0.15 | 1.87 | 239 | 610 |
26 | 7×0.16 | 0.49 | 0.60 | 0.15 | 1.99 | 150 | 305 |
24 | 7×0.20 | 0.61 | 0.60 | 0.15 | 2.11 | 94.2 | 305 |
19×0.12 | 0.60 | 0.60 | 0.15 | 2.10 | 305 | ||
22 | 19×0.16 | 0.81 | 0.60 | 0.15 | 2.26 | 59.4 | 305 |
7×0.25 | 0.76 | 0.60 | 0.15 | 2.26 | 305 | ||
20 | 19×0.19 | 0.96 | 0.60 | 0.15 | 2.46 | 36.7 | 305 |
7×0.31 | 0.95 | 0.60 | 0.15 | 2.45 | 305 | ||
18 | 19×0.235 | 1.18 | 0.60 | 0.15 | 2.68 | 23.2 | 305 |
7×0.39 | 1.19 | 0.60 | 0.15 | 2.69 | 305 | ||
16 | 7×0.50 | 1.53 | 0.65 | 0.15 | 3.13 | 14.6 | 305 |
14 | 37×0.26 | 1.83 | 0.70 | 0.15 | 3.53 | 8.96 | 200 |
12 | 45×0.32 | 2.31 | 0.80 | 0.15 | 4.38 | 5.64 | 100 |
10 | 35×0.45 | 3.16 | 0.90 | 0.15 | 5.17 | 3.55 | 100 |
