UL 10168 Electronic Equipment Cable
US$ 0.2 - 3.59
/ Meter
6100 Meters(Min. Order)
- Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Haerkn | |
| Model Number | UL 10168 | Type | Insulated | |
| Application | Overhead | Conductor Material | Other, Tinned or Bare Copper | |
| Conductor Type | Other, Solid or Stranded | Insulation Material | PVC |
Product Description
Specifications
UL10168 Electronic Equipment Cable1. UL, ROHS, REACH compliant
2. Manufacturer supply
3. Best reputation

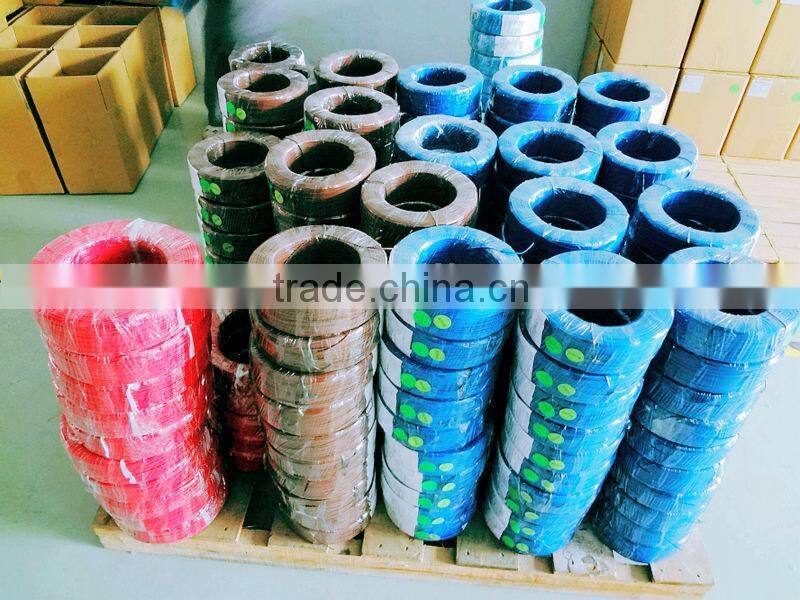

UL 10168 Electronic Equipment Cable
UL FILE NO.: E300956
| Style 10168 | Insulated Wire. | |
| Rating | 80, 90, 105 deg C, 300 Vac, Horizontal flame. |
| Conductor | 30 AWG - 10 AWG solid or stranded round, tinned or bare copper. |
| Insulation | PVC, 15 mils min average, 13 mils minimum at any point. |
| Assembly | Litz cable conductor consists of single strand magnet wire, R/C (OBMW2) magnet wire. Each single magnet wire strand is cabled together with the other magnet wire strands to form a conductor. AWG size to be determined by the DC Resistance Test per UL 1581. |
| Covering | Optional. PVC, minimum average thickness 9 mils, minimum thickness at any point 8 mils. |
| Standard | Appliance Wiring Material UL 758. |
| Marking | General. |
| Use | Internal Wiring of Appliances or Electronic Equipment where not subjected to movement or mechanical damage. Tag may also indicate the following: "600 Volts Peak for Electronic Use Only". |
