Home > Products > Pressure Oil Purifier > LY-100 Plate Pressure Oil Filtering Machine/portable Oil Purification/oil Filtration/oil Purifier
LY-100 Plate Pressure Oil Filtering Machine/portable Oil Purification/oil Filtration/oil Purifier
- chongqing or shanghai
- T/T Money Gram
You May Like
-
LY Pressure Type Sheet Frame Oil Purifier
-
China LY-30 Plate Pressure Oil Purification Machine
-
Supply LY-125 Pressure Plate Oil Recycling Machine
-
LY-150 Plate Pressure Oil Filtering Machine Series
-
LY-100 Plate Pressure Oil Filtering Machine Series Remove Impurities From Waste Oil
-
Supply LY Plate Pressure Oil Filtering Machine
Product Details
| Condition | New | Type | Press Filter | |
| Structure | Other, Other, Filtering Machine | Place of Origin | Chongqing, China | |
| Brand Name | JunNeng | Model Number | LY-100 | |
| Power(W) | 3KW | Weight | 200KG | |
| Dimension(L*W*H) | Capacity | Certification | ISO9001:2000 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

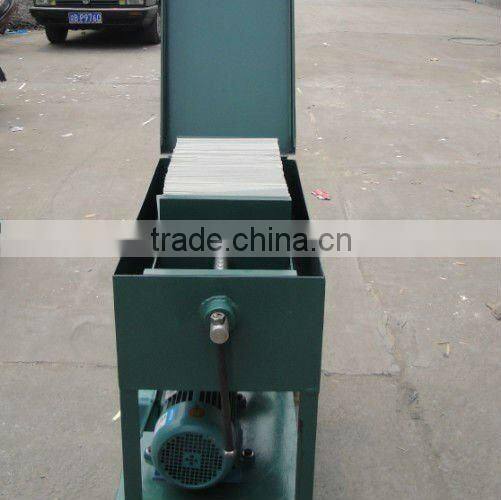

LY plate pressure oil filtering machine is mainly used to separate the impurities and water from the oil.
LY series plate pressure oil purifier is mainly used to separate the impurities and water from the oil. It is suitable for filtering the cooking oil, transformer oil, used lubricating oil and so on. There is filtering media, such as filtering paper or filtering cloth, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering cloth packed between the filter board and filter frame will play a role of filtering. It's characterized by simple structure,easy operation,low cost,ect.
Technical parameters
models | LY-30 | LY-50 | LY-100 | LY-125 | LY-150 | LY-200 | LY-300 | |
flowL/min | 30 | 50 | 100 | 125 | 150 | 200 | 300 | |
working pressure MPa | 00.5 | |||||||
filtration area | ≥0.3 | ≥0.39 | ≥1.3 | ≥1.54 | ≥1.89 | ≥2.01 | ≥3.1 | |
mm | 280×280 | 320×320 | ||||||
compress mode |
| |||||||
Frame amout | 11 | 13 | 17 | 11 | 13 | 19 | 25 | |
Plate amount | 12 | 14 | 18 | 12 | 14 | 20 | 26 | |
Power supply | 380V 50HZ | |||||||
Total power (KW) | 0.75 | 1.1 | 2.2 | 2.2 | 3 | 4 | 5.5 | |
Rotate speedr/min | 1440 | |||||||
Filtration precision μm | ≤5 | ≤3 | ||||||
Filtering cloth size mm | 285×290 | 325×330 | ||||||
Inlet diameter mm | φ32 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
Outlet diameter mm | φ25 | φ25 | φ38 | φ42 | φ42 | φ50 | φ50 | |
dimension | L mm | 750 | 800 | 850 | 800 | 850 | 920 | 1000 |
Wmm | 530 | 530 | 530 | 600 | 600 | 600 | 600 | |
Hmm | 930 | 930 | 930 | 1100 | 1100 | 1100 | 1100 | |
Total weight kg | 80 | 95 | 130 | 180 | 210 | 250 | 300 | |
.
Dimension and weight will be changed with changing the technical specification
