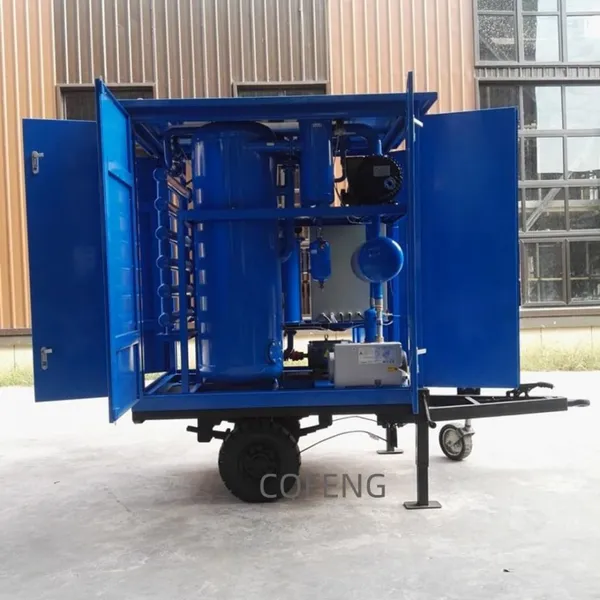

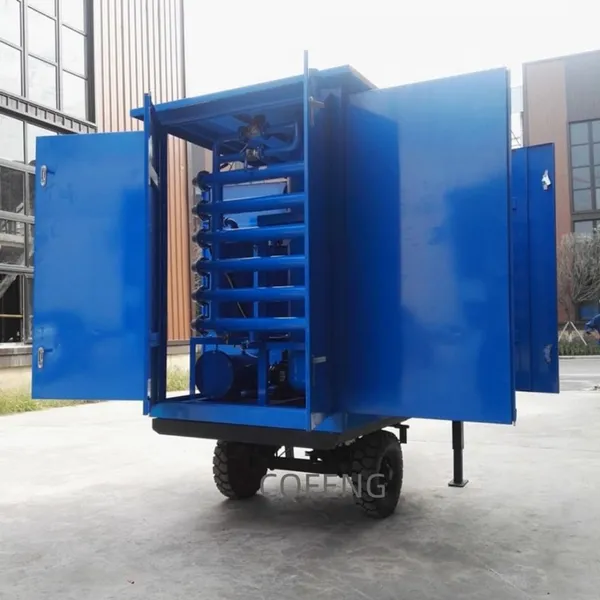

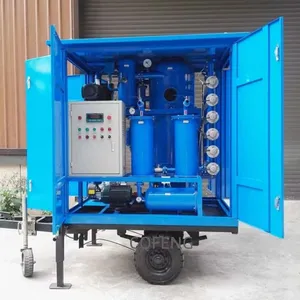

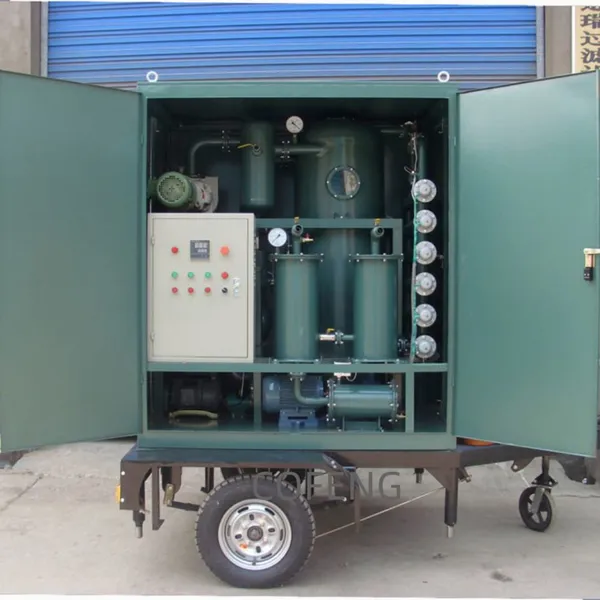

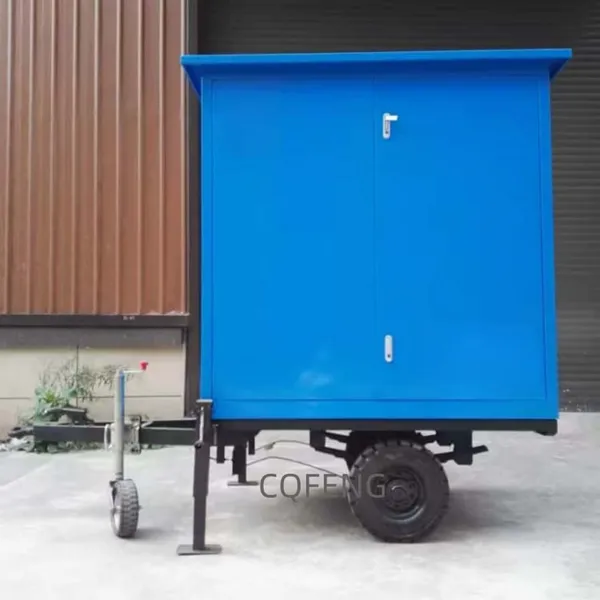

Mobile High Vacuum Enclosed Transformer Oil Purification Plant Mounted On Trailer is developed for transformer oil degasification, dehydration and filtration processing onsite at outside. It adopts double stages high vacuum pumping systems with horizontal vacuum chambers and full enclosed structure with weather proof canopy. Mobile High Vacuum Transformer Oil Treatment Machine with trailer can be carried out on road and off road. Meanwhile, it also works with other electrical insulating oil such as cable, circuit breakers, capacitor etc. The filtration process of Mobile Vacuum Transformer Oil Purification Machine is able to maintain complete cleanness and improve dielectric strength of insulating oil.
Features
• Double axles or single axle trailer with functions of weather proof on road or off road.
• Transformer Dry-Out and Filling capabilities
• High efficiency three stage micro filter elements with capable of removing 99.5% particles as small as 1 micron.
• Overall water content of ≤3-5 PPM By vacuum dehydration to remove free, emulsified and dissolved water.
• Achieving soluble air and gas content of ≤0.1%
• Achieve ≥70kV dielectric strength.
• Online Transformer Oil Purification Treatment, vacuum drying and vacuum oil-filling for electric equipment.
• Reducing overall operational and maintenance cost of power energy systems.
Optional: Online moisture monitor, flow meter, oil regeneration system, dielectric strength tester, etc.

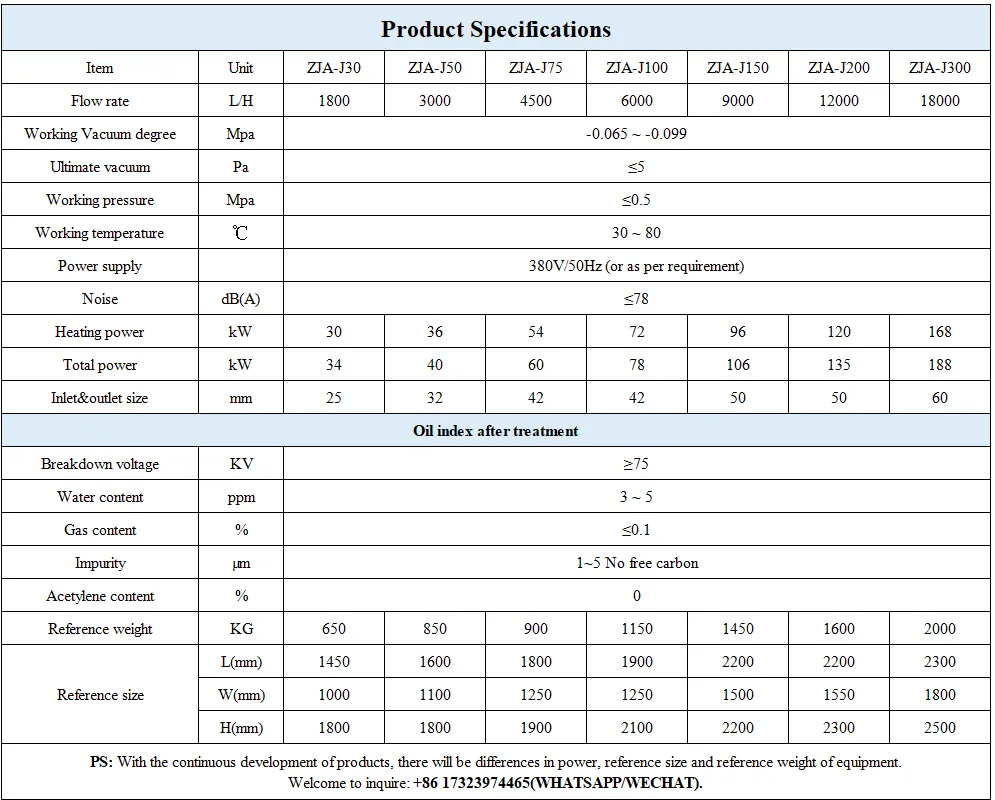

Technical Specifications
Why Do You Choose Two-stages Portable Transformer Oil Filtration Plant?
Compared with single-stage vacuum oil purifier, this machine is more quickly and more completely in dehydration, degasification and trash extraction; it makes the oil limited voltage- withstand value much higher. This machine has two purposes, which one as purification equipment; another can be an independent vacuum power supply. Besides, it can short the oil treating duration during installation and maintenance of transformer.
