China TLA High- Efficient Light Fuel Oil Processor

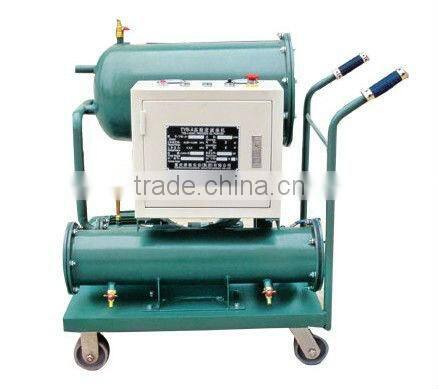

    TLAHigh- efficient Light Fuel Oil Processor Equipment

      It currently adopts the most advanced principles of Coalescence-separation in world, collecting filtration precision ,efficient demulsification and dehydration in one.TLA light fuel oil purifier series can remove a large amount water without heating the oil, can fast separate water from the oil that has the equal amount of oil and water, and after treatment the cleanliness level up to NAS6, the water content in oil up to 50ppm. It is not easy to rust when use the oil after filtration to clean the bearings, lower costs, and the oil can be reused, compact design, simple and easy to operate. Basically it is non-wearing for parts, low maintenance costs, small energy consumption, and the trolley-style design is convenient for the movement of equipment.

Working Principle:

     Coalescence separator is equipped with two different functions of the filters inside - separation filter and coalescence filter. the medium for dehydration go through the import of coalescence separator into the filter shell, and the filter tray distribute it to of each coalescence filter, liquid flows from inside to outside of coalescence filter, after filtration, emulsion breaking, coalescence, and sedimentation four process, the liquid demulsify the emulsion, and then after demulsification the droplet water form the large big one and subside at the bottom of the shell. Part of the droplet water with the liquid flow into separation filter,the filter is made up of a special filter material with good water-repellent performance, small drops were completely and effectively blocked outside of the filter, and form bog drops again to subside, so as to ensure effective removal of water. The water subside at the bottom of the shell can be shown by the lever meter, so that the water and dirt can be removed out by the drainage valve from time to time. The media after separated water will be collected by separation filter tray, and flow out from export of the separator.

Technical parameters:

Dimension and weight will be changed with changing the technical specification.
