Ceramic Fiber Module (with S304 or S310 Anchor)

Ceramic Fiber Module (with S304 or S310 Anchor) thumbnail-1
Ceramic Fiber Module (with S304 or S310 Anchor) photo-1
US$ 1,140 - 2,840 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
LUYANGWOOL, LUYANGWOOL
Model Number:
LYTX-1260MK/1140mk/1430mk, LYTX-1260MK
Contact Supplier Request Quote Chat Now
Shandong Luyang Energy-Saving Materials Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name LUYANGWOOL, LUYANGWOOL
Model Number LYTX-1260MK/1140mk/1430mk, LYTX-1260MK
Application thermal insulation
Grade ST (Standard)
Dimensions 300x300x200/250mm
Working Temperature 1000/1100/1350
Fiber Diameter 3.5um
Thermal Conductivity 0.09-0.175

Specifications

Ceramic fiber module
Temperature: 1260~1430C
Size:300x300x250mm
Density: 180-220kg/m3
Customized service is also available.

  • LUYANGWOOL® ceramic fiber module is made from LUYANGWOOL ceramic fiber blanket. These blocks are specially designed o meet or improve the thermal insulation requirements of industrial furnaces.



           Application



  • Ceramic industry~ low mass kiln cars,contiual and batch kiln,door linings,glazing,porcelain furance liners.
  • Power generation~ duct lining,heat recovery,boiler insulation,stack linings
  • Refing and petrochemical: ethylene furnace roof and wall,pyrolysis furnace lining,reformer furnace roof and wall.boiler lining.
  • Steel industry~heat treat furnace,ladle pre-heaters and covers,soaking pit covers and seals,heaters and reformer lining.
  • Others:incineration equipment,burner blocks,induction furnace covers,glass tempering furnace.

          Technical Properties:

Description STD Module HP Module HZ Module

Chemical Composition (%)



Al2O3

≥44

≥45

≥34

SiO2

≥52

≥54

≥50

Fe2O3+TiO2



≤1

 ≤0.5 ≤0.5
ZrO2  tr  tr  ≥15

K2O+Na2O+Fe2O3

≤1

 ≤0.2 ≤0.2

Physical Properties



Density (kg/m3)

 220 220  220

Classification Temperature(°C)

 1260 1260 1430

Linear Shrinkage after heating( % )

 1000°C*24h≤2.5

1100°C*24h≤2.5

1200°C*24h≤3.5





Standard Specification

  • Width:  200/300/250mm
  • Thickness: 200/250/300mm
  • Density: 180-220kg/m3

      Customized service is also available. For more information,please contact us !

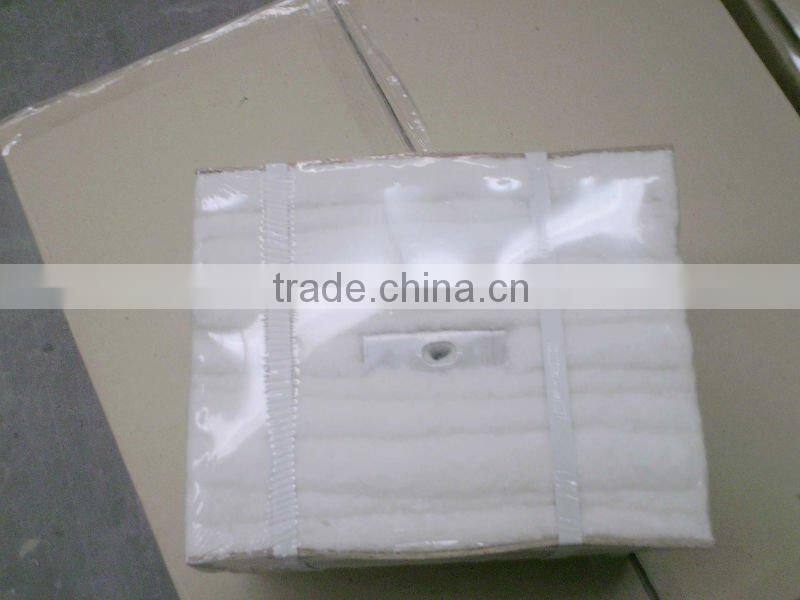

Ceramic Fiber Module (with S304 or S310 anchor)
