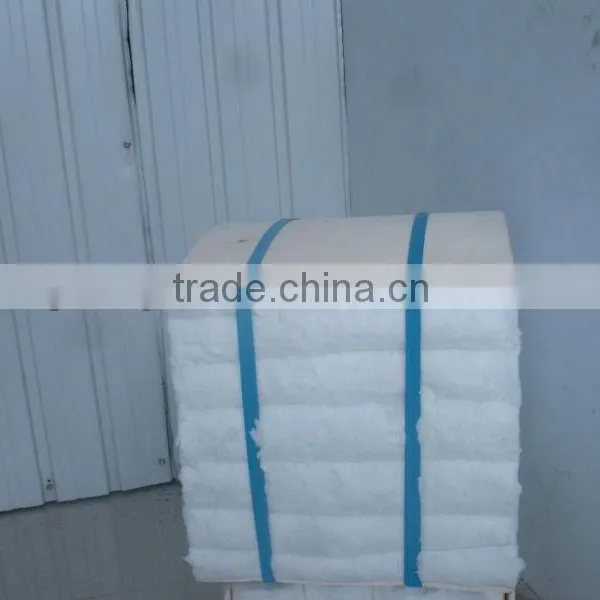

Refractory Ceramic Fiber Module

Refractory Ceramic Fiber Module thumbnail-1
Refractory Ceramic Fiber Module photo-1
US$ 1,133 - 2,833 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
LUYANGWOOL
Model Number:
LYTX-1260MK,LYTX-1430MK
Contact Supplier Request Quote Chat Now
Shandong Luyang Energy-Saving Materials Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name LUYANGWOOL
Model Number LYTX-1260MK,LYTX-1430MK
Application refractory
Dimensions 300x300x200/250mm
Working Temperature 1000/1100/1200
Fiber Diameter 3.5
Thermal Conductivity 0.09-0.172

Specifications

ceramic fiber block
1.temp: 1140~1430C
2.density: 220kg/m3
3.size: 300x300x200/250mm
customized service is also available

LUYANGWOOL ceramic fiber block are made from LUYANG ceramic fiber blanket. These blocks are specially designed o meet or improve the thermal insulation requirements of industrial furnaces.

   Application



  • Ceramic industry~ low mass kiln cars,contiual and batch kiln,door linings,glazing,porcelain furance liners.
  • Power generation~ duct lining,heat recovery,boiler insulation,stack linings
  • Refing and petrochemical: ethylene furnace roof and wall,pyrolysis furnace lining,reformer furnace roof and wall.boiler lining.
  • Steel industry~heat treat furnace,ladle pre-heaters and covers,soaking pit covers and seals,heaters and reformer lining.
  • Others:incineration equipment,burner blocks,induction furnace covers,glass tempering furnace.

Description

STD Module

HP Module

HZ Module

Chemical Composition (%)







Al2O3

≥44

≥45

≥34

SiO2

≥52

≥54

≥50

Fe2O3+TiO2

≤1

≤0.5

≤0.5

ZrO2

tr

tr

≥15

K2O+Na2O+Fe2O3

≤1

≤0.2

≤0.2

Physical Properties







Density (kg/m3)

220

220

220

Classification Temperature ( 0C )

1260

1260

1430

Linear Shrinkage after heating ( % )

1000°C*24h≤2.5

1100°C*24h≤2.5

1200°C*24h≤3.5

Thermal Conductivity (W/m.k) 400 C

0.090

0.101

0.118

                                                      500 C

0.119

0.12

0.149

                                                      600 C

0.152

0.175

0.172

Color

White

White

White

               Customized service is also available. For more information,please contact us !
