96*96 THREE-PHASE THREE ROW AC VOLTAGE LED DIGITAL COMBINATION METER RH-3UI33
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KND
Model Number:
RH-3UI33
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
96*96 THREE-PHASE THREE ROW AC VOLTAGE AND FREQUENCY LCD DIGITAL COMBINATION METER RH-3UIF3YNegotiableMOQ: 10 Pieces -
SINGLE-PHASE AC DIGITAL AMMETER CURRENT METERNegotiableMOQ: 10 Pieces
-
48*96 ECONOMY SINGLE-PHASE AC AMMETER SQUARE LED DIGITAL AMMETER RH-AA51NegotiableMOQ: 10 Pieces
-
96*96 ECONOMY SINGLE-PHASE AC AMMETER LED DISPLAY DISPLAY PROGRAMMABLE PORTABLE AMMETER RH-AA31NegotiableMOQ: 10 Pieces
-
96 *96 SINGLE-PHASE AC LED DIGITAL AMMETER CURRENT METER RH-AA31NegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
KND
Model Number
RH-3UI33
Dimensions
96*96
Specifications
High-precision measure three-phase voltage,three-phase current,active power,reactive power ,apparent power,power factor ,frequenDescription:
Intelligent digital instrument be used in electricity grids , automation control system to measure voltage ,current ,active power,reactive power , apparent power, power factor and frequency.They are displayed by LED or LCD. Visual display , High accuracy, Reliable performance, Strong isolation, Anti-Vibration.
Performance Characteristics
High-precision measure three-phase voltage,three-phase current,active power,reactive power ,apparent power,power factor ,frequency.
LED or LCD display , Local data query
Current Conversion Ratio is programmable.
Support RS-485 communication Modbus-RTU treaty.
Support DI DO AO
Auxiliary Power Supply :AC/DC 80V-270V, AC220V,AC380V,AC100V
Various shape can be choosed.
| Accuracy of measurement | |
| Voltage | 0.5 degree |
| Current | 0.5 degree |
| Active power | 0.5 degree |
| Reactive power | 0.5 degree |
| Power factor | 0.5 degree |
| Frequecy | ±0.02Hz |
| Signal Input | |
| Mode of connection | single-phase ,three-phase three-wire,three-phase four-wire |
| Rated voltage | AC57.7V ,AC 100V,AC220V,AC380V |
| Rated current | AC1A ,AC5A |
| Overload | Voltage:1.2 times 2 times /1 second(instantaneous) |
| Current:1.2 times 10 times /5 second(instantaneous) | |
| Power dissipation | Voltage:less than 1VA/phase ;Current :less than 0.4VA/phase |
| Impedance | Voltage:more than 300kΩ:Current:Less than 20mΩ |
| Frequency | 45-65Hz |
| APS | |
| Operating Range | AC/DC 80V-270V ,AC220V,AC380V,AC100V,DC48V,DC24V |
| Power dissipation | Less than 4VA |
| Function Module | |
| Communication interface | No. 1 RS-485 communications,Modbus-RTU treaty |
| Baud rate:1200-9600bps ,the default value is 2400bps | |
| DI | support 4 dry contacts |
| DO | support 3 relay output,capacity AC250V/5A DC30V5A |
| Transmitting Output | support 1 AO :0/4-20mA or 0-5/10V |
| Environment | |
| Working environment | -10°C- +55°C |
| Storage Temperature | -25°C- +70°C |
| Relative Humidity | ≤93%, No corrosive gas places |
| Altitude | ≤2500m |
| Security | |
| Insulation Resistance | >100mΩ |
| ACW | AC 2KV |
| EMC | |
| ESD | grade 4 |
| EFT | grade 4 |
| Surge impact | grade 4 |
| Dimension | |
| Frame dimension | 120*120; 80*80; 96*48; 96*96; 80*80; 48*48; 120*60; 160*80 |
| Hole dimension | 111*111; 76*76; 92*45; 92*92; 68*68; 45*45; 114*56; 152*76 |
| Model | Measurement | Extended Function | LED | LCD | Hole dimension | ||||||||
| Three-phase current | Three-phase voltage | Active power | Reactive power | Power frequency | Frequency | DI | DO | TO | Communication interface | ||||
| RH-3♦11 | Any function combination | 2 | 2 | 1 | 1 | √ | 152*76 | ||||||
| RH-3 ♦ 23 | Any function combination | 2 | 2 | 3 | 1 | √ | 111*111 | ||||||
| RH-3 ♦ 2Y | Any function combination | 2 | 2 | 3 | 1 | √ | |||||||
| RH-3 ♦ 33 | Any function combination | 2 | 2 | 3 | 1 | √ | 92*92 | ||||||
| RH-3 ♦ 3Y | Any function combination | 2 | 2 | 3 | 1 | √ | |||||||
| RH-3 ♦ 41 | Any function combination | 2 | 2 | 1 | 1 | √ | 114*56 | ||||||
| RH-3 ♦ 51 | Any function combination | 2 | 2 | 1 | 1 | √ | 92*45 | ||||||
| RH-3 ♦ 63 | Any function combination | 2 | 2 | 1 | 1 | √ | 68*68 | ||||||
| RH-3 ♦ 6Y | Any function combination | 2 | 2 | 1 | 1 | √ | |||||||
| RH-3 ♦ 73 | Any function combination | 2 | 2 | 1 | 1 | √ | 76*76 | ||||||
| RH-3 ♦ 7Y | Any function combination | 2 | 2 | 1 | 1 | √ | |||||||
| RH-3 ♦ 83 | Any function combination | 2 | 2 | 1 | 1 | √ | 45*45 | ||||||
| RH- ♦ 11 | Any function combination | 2 | 2 | 1 | 1 | √ | 152*76 | ||||||
| RH- ♦ 23 | Any function combination | 2 | 2 | 3 | 1 | √ | 111*111 | ||||||
| RH- ♦ 2Y | Any function combination | 2 | 2 | 3 | 1 | √ | |||||||
| RH- ♦ 33 | Any function combination | 2 | 2 | 3 | 1 | √ | 92*92 | ||||||
| RH- ♦ 3Y | Any function combination | 2 | 2 | 3 | 1 | √ | |||||||
| RH- ♦ 41 | Any function combination | 2 | 2 | 1 | 1 | √ | 114*56 | ||||||
| RH- ♦ 51 | Any function combination | 2 | 2 | 1 | 1 | √ | 92*45 | ||||||
| RH- ♦ 63 | Any function combination | 2 | 2 | 1 | 1 | √ | 68*68 | ||||||
| RH- ♦ 6Y | Any function combination | 2 | 2 | 1 | 1 | √ | |||||||
| RH- ♦ 73 | Any function combination | 2 | 2 | 1 | 1 | √ | 76*76 | ||||||
| RH- ♦ 7Y | Any function combination | 2 | 2 | 1 | 1 | √ | |||||||
| RH- ♦ 83 | Any function combination | 2 | 2 | 1 | 1 | √ | 45*45 | ||||||
| 27.TRI-PHASE AC CURRENT AND VOLTAGE | ||||
| COMBINATION METER | ||||
| Model | Display Mode | Face Frame Size | Hole Size | |
| mm | mm | |||
| RH-3UI11 | Single Row LED | 160*80 | 152*76 | |
| RH-3UI23 | Three Row LED | 120*120 | 111*111 | |
| RH-3UI33 | Three Row LED | 96*96 | 92*92 | |
| RH-3UI41 | Single Row LED | 120*60 | 114*56 | |
| RH-3UI51 | Single Row LED | 96*48 | 92*45 | |
| RH-3UI63 | Three Row LED | 72*72 | 68*68 | |
| RH-3UI73 | Three Row LED | 80*80 | 76*76 | |
| RH-3UI83 | Three Row LED | 48*48 | 45*45 | |
| RH-3UI2Y | LCD | 120*120 | 111*111 | |
| RH-3UI3Y | LCD | 96*96 | 92*92 | |
| RH-3UI6Y | LCD | 72*72 | 68*68 | |
| RH-3UI7Y | LCD | 80*80 | 76*76 | |

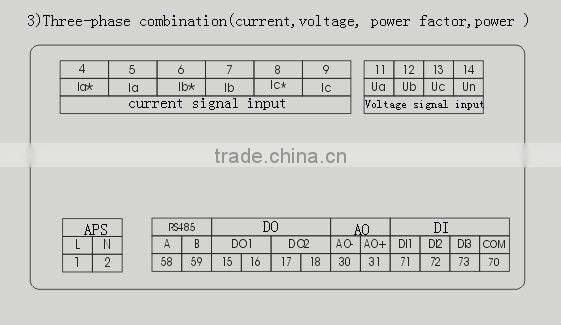

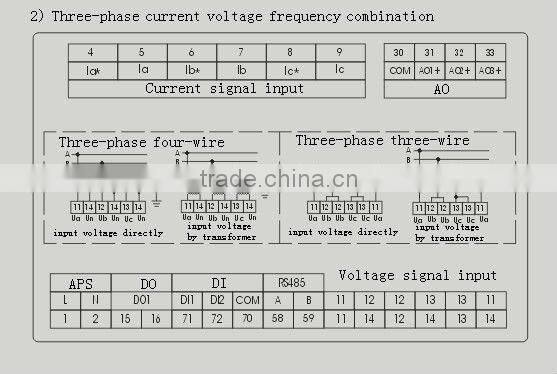

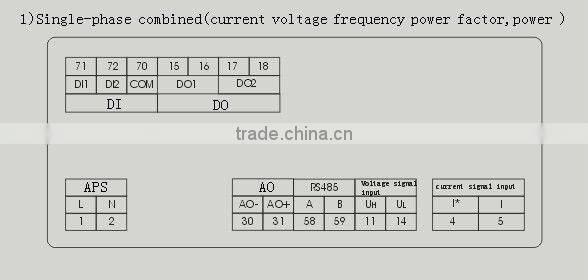

Terminal diagram

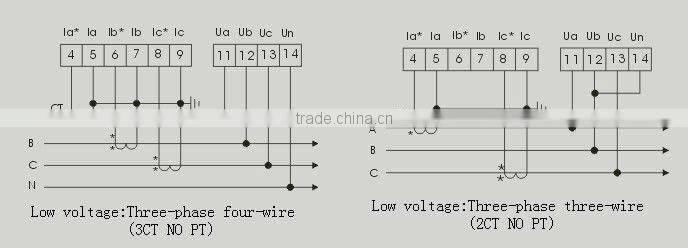

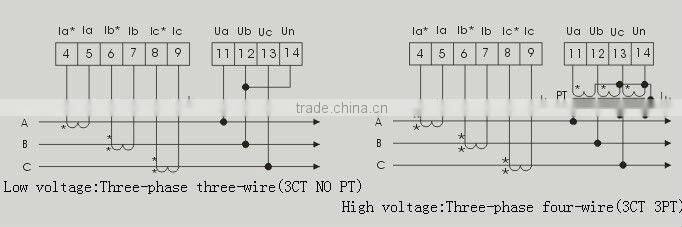

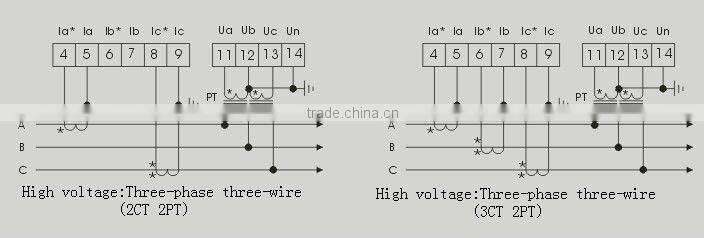

The wiring diagram
